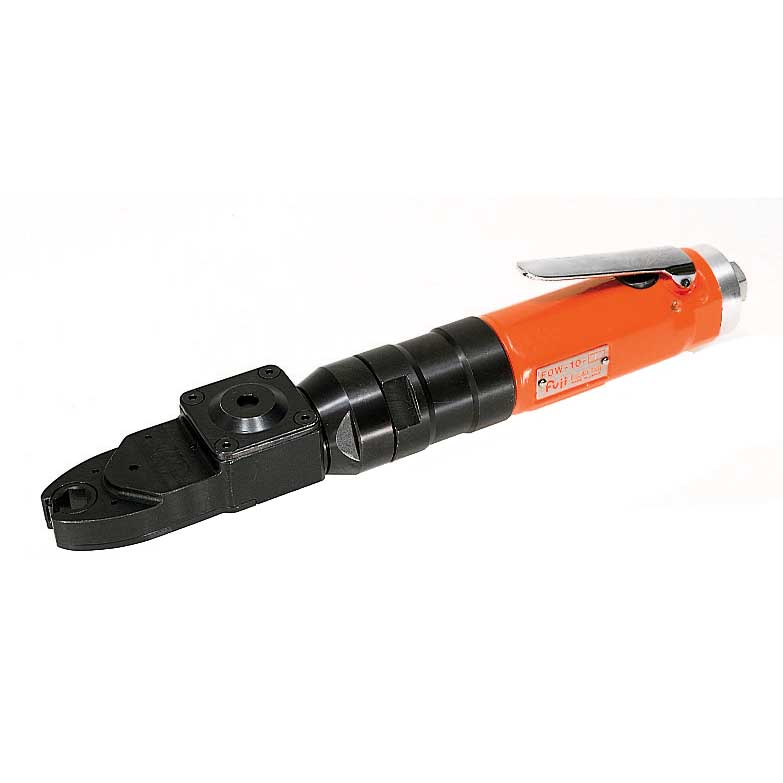

FOW-10-1 10 N

FOW-10-1 10 N

Part number 5412053088
Model FOW-10-1 10 N
Square drive Hex 0.394" Hex 10
Square drive Hex 10 mm Hex 0.394
Working torque Range 6 - 10 Nm 4.4 - 7.4
Max torque 13.6 Nm 10 ft.lbs
Free speed 410 rpm
Head thickness 14 mm 0.55"
Head width 36 mm 1.42"
Net weight 1.5 kg 3.3 lb
Length 294 mm 11.6"
Actual air consumption 6.7 l/s 14.1 cfm
Min. hose size 9.5 mm 3/8"
Sound pressure 90 db(A)
Sound Power 101 db(A)
Vibration α (ISO-28927-2) < 2.5 m/s²
Vibration K (ISO-28927-2) 0.3 m/s²
Bolt size -
