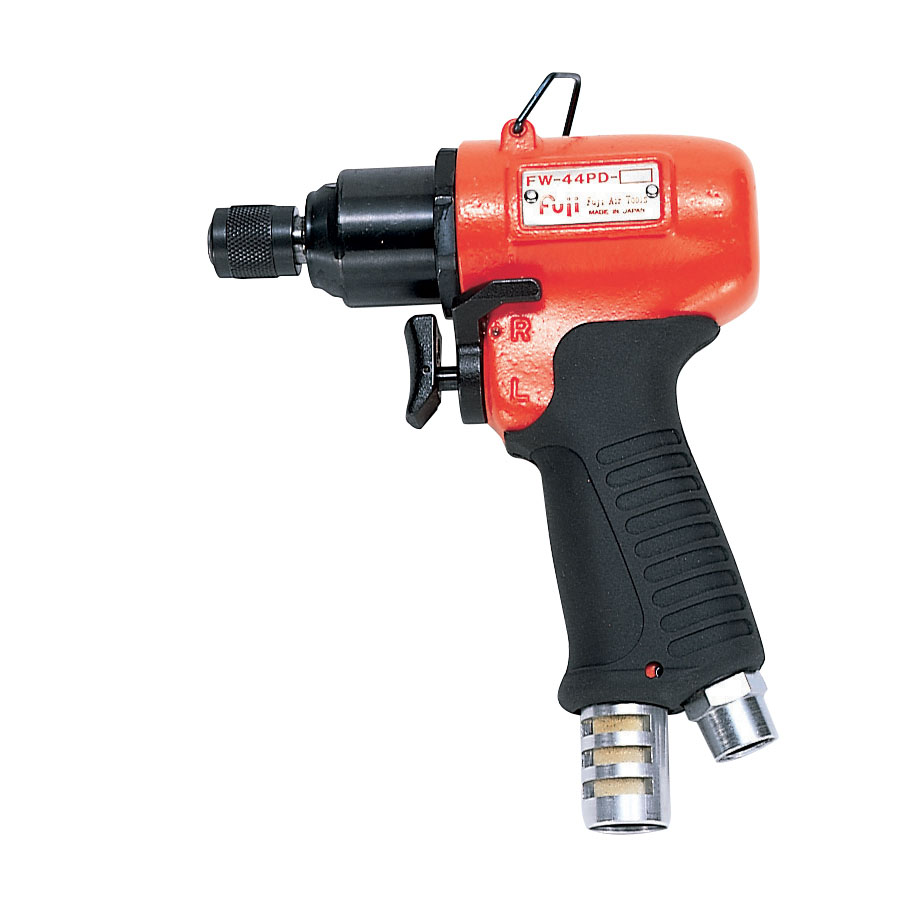

FW-44PAD-20

FW-44PAD-20

Part number 5412053592
Model FW-44PAD-20
Handle type Pistol
Square drive 1/4" Hex." Hex. 6.35
Square drive Hex. 6.35 mm 1/4" Hex.
Working Torque Range (fwd) 3 - 8 Nm 2.2 - 4.4
Maximum Torque (fwd) 10 Nm 7.4 ft.lbs
Free speed 6500 rpm
Net weight 0.78 kg 1.72 lb
Length 132 mm 5.2"
Actual air consumption 9.9 l/s 21.2 cfm
Min. hose size 6.3 mm 1/4"
Sound pressure 77 db(A)
Sound Power 88 db(A)
Vibration α (ISO-28927-2) 5.2 m/s²
Vibration K (ISO-28927-2) 1.6 m/s²
Socket retainer Bit Shank (Hex)
Clutch type Double hammers
Bolt size M5  No.10
