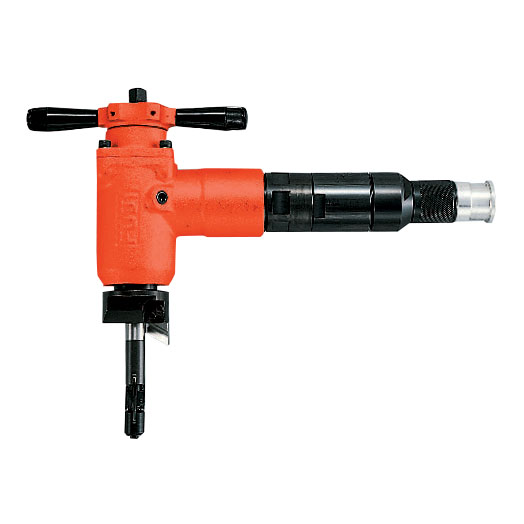

FBM-24-1

FBM-24-1

Part number 5412052423
Model FBM-24-1
Pipe inside diameter 14 - 24 mm  35/64" - 15/16"
Feed length 30 mm 1.18"
Free speed 180 rpm
Max torque 34.3 Nm 25.3 ft.lbs
Power 180 W 0.24 hp
Net weight 2.9 kg 6.4 lb
SideToCenter_mm 27 mm 1 1/16"
Length 278 mm 10.9"
Free speed air consumption 6.7 l/s 14.1 cfm
Min. hose size 8 mm 5/16"
Sound pressure 83 db(A)
Sound Power 94 db(A)
Vibration α (ISO-28927-5) < 2.5 m/s²
Vibration K (ISO-28927-5) 0.2 m/s²
Vibration (ISO-20643) < 2.5 m/s²
Vibration K (ISO-20643) 0.2 m/s²
