FW-5PX-6 BF N

FW-5PX-6 BF N

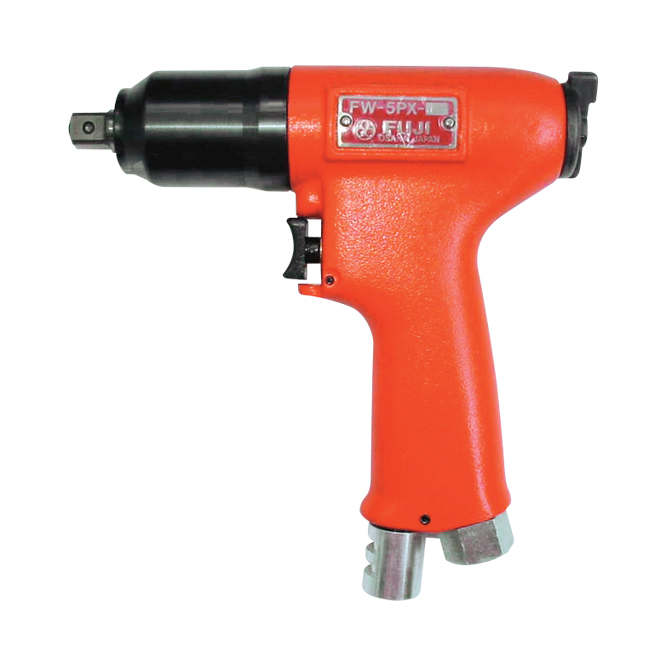

FW-5PX-6 BF N - Durable, flat button retainer, NPT Inlet

Part number 5412053601
Model FW-5PX-6 BF N
Handle type Pistol
Square drive 3/8" 9,5 mm
Square drive 9,5 mm 3/8
Working Torque Range (fwd) 6 - 12 Nm 4.4 - 8.9
Maximum Torque (fwd) 18 Nm 13 ft.lbs
Free speed 12000 rpm
Net weight 0.8 kg 1.76 lb
Length 150 mm 5.91"
Actual air consumption 3.3 l/s 7.1 cfm
Min. hose size 6.3 mm 1/4"
Sound pressure 89 db(A)
Sound Power 100 db(A)
Vibration α (ISO-28927-2) 3.1 m/s²
Vibration K (ISO-28927-2) 1.2 m/s²
Socket retainer Pin (BF-Anvil)
Clutch type Double hammers
Bolt size M5  No.10
