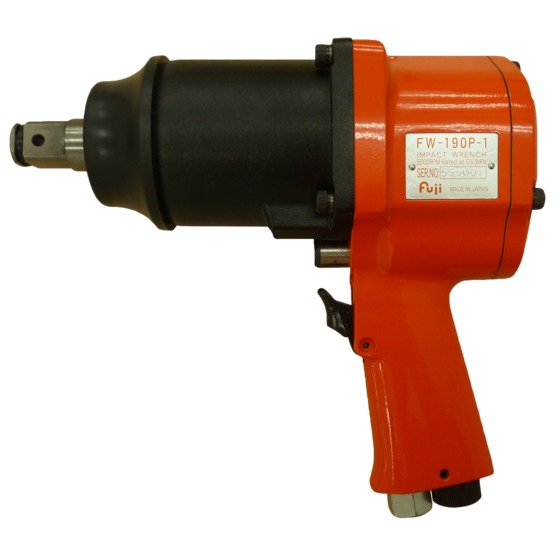

FW-190P-1 BF

FW-190P-1 BF

W-190P-1 BF - Durable, powerful, flat button retainer

Part number 5412104398
Model FW-190P-1 BF
Handle type Pistol
Square drive 3/4" 19 mm
Square drive 19 mm 3/4"
Working Torque Range (fwd) 240 - 560 Nm 178 - 415
Maximum Torque (fwd) 620 Nm 460 ft.lbs
Free speed 5500 rpm
Net weight 4.5 kg 10 lb
Length 241 mm 9.5"
Actual air consumption 8.6 l/s 18.2 cfm
Min. hose size 9.5 mm 3/8"
Sound pressure 91 db(A)
Sound Power 102 db(A)
Vibration α (ISO-28927-2) 8.4 m/s²
Vibration K (ISO-28927-2) 2.7 m/s²
Socket retainer Pin (BF-Anvil)
Clutch type Pin-less rocking dog
Bolt size M20  3/4
