FA-3CK-2 5-8

FA-3CK-2 5-8

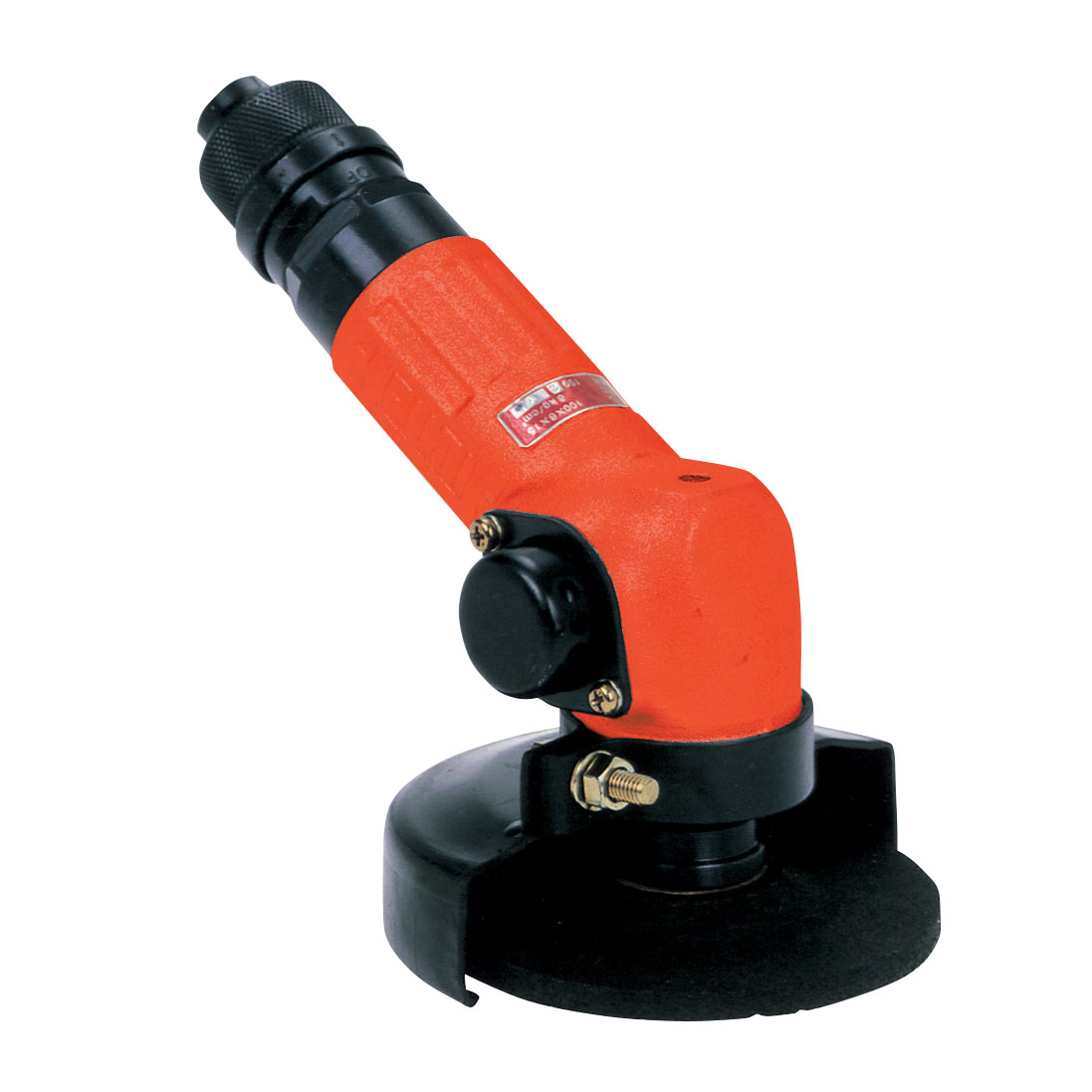

FA-3CK-2 5-8 - 120° Angle, compact body, for 4" wheel, 5/8" hole

Part number 5412052291
Model FA-3CK-2 5-8
Type of wheels Type 27
Spindle thread M8
Wheel size 100 x 6 x 15.8  4 x 1/4 x 5/8
Free speed 13500 rpm
Power 290 W 0.389 hp
Side exhaust Side exhaust
Length 164 mm 6,5"
Net weight 1.2 kg 2.6 lb
Side to center 22.5 mm 3/4"
Height over spindle 77.5 mm 3.05"
Sound pressure 79 db(A)
Sound Power 90 db(A)
Vibration α (ISO-28927-1) 4.6 m/s²
Vibration K (ISO-28927-1) 1.4 m/s²
Free speed air consumption 6.7 l/s 14.12 cfm
Min. hose size 9.5 mm 3/8"
