| Part number |
5412105883 |
| Model |

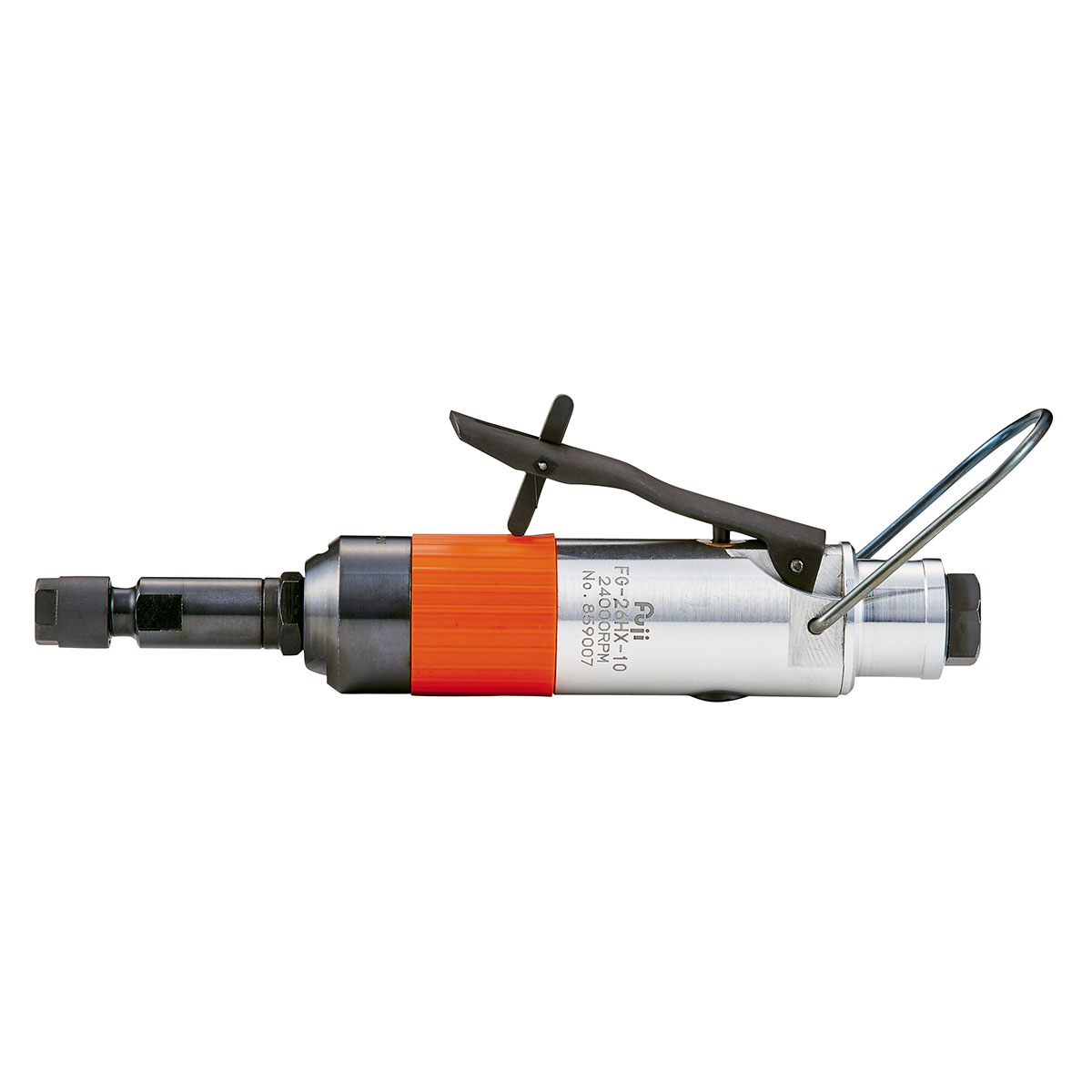

FG-26HX-10F 6 EC |
| Type of wheels |
Mounted point/Carbide burr |
| Throttle |
Lock-off lever |
| Collet size |
6 mm |
0.236" |
| Max diameter of carbide burrs |
13 mm |
1/2" |
| Max diameter of mounted point |
25 mm |
1" |
| Free speed |
24000 rpm |
| Power |
265 W |
0.355 hp |
| Rear exhaust |
Rear exhaust |
| Length |
206 mm |
8.11" |
| Net weight |
0.57 kg |
1.26 lb |
| Side to center |
17.7 mm |
0.697" |
| Sound pressure |
81.2 db(A) |
| Sound Power |
92.2 db(A) |
| Vibration α (ISO-28927-12) |
< 2.5 m/s² |
| Vibration K (ISO-20643) |
1.2 m/s² |
| Free speed air consumption |
8 l/s |
17 cfm |
| Min. hose size |
9.5 mm |
3/8" |
6HX-10F 6 EC - Compact & precision, 6mm collet, CE
