| Part number |
5412104843 |
| Model |
FA-20-2 1-4 N EC |
| Type of wheels |
Mounted point |
| Spindle thread |
3/8-24UNF |
| Collet size |
6.35 mm |
1/4" |
| Max diameter of mounted point |
38 x 13 x - |
1-1/2 x 1/2 x - |
| Free speed |
15000 rpm |
| Power |
294 W |
0.4 hp |
| Side exhaust |
Side exhaust |
| Length |
157 mm |
6.2" |
| Net weight |
0.6 kg |
1.3 lb |
| Side to center |
17.5 mm |
0.69" |
| Height over spindle |
83 mm |
3.27" |
| Sound pressure |
87.7 db(A) |
| Sound Power |
98.7 db(A) |
| Vibration α (ISO-28927-12) |
3.2 m/s² |
| Vibration K (ISO-20643) |
2.2 m/s² |
| Vibration α (ISO-28927-1) |
3.2 m/s² |
| Vibration K (ISO-28927-1) |
2.2 m/s² |
| Free speed air consumption |
9.8 l/s |
20.8 cfm |
| Min. hose size |
9.5 mm |
3/8" |

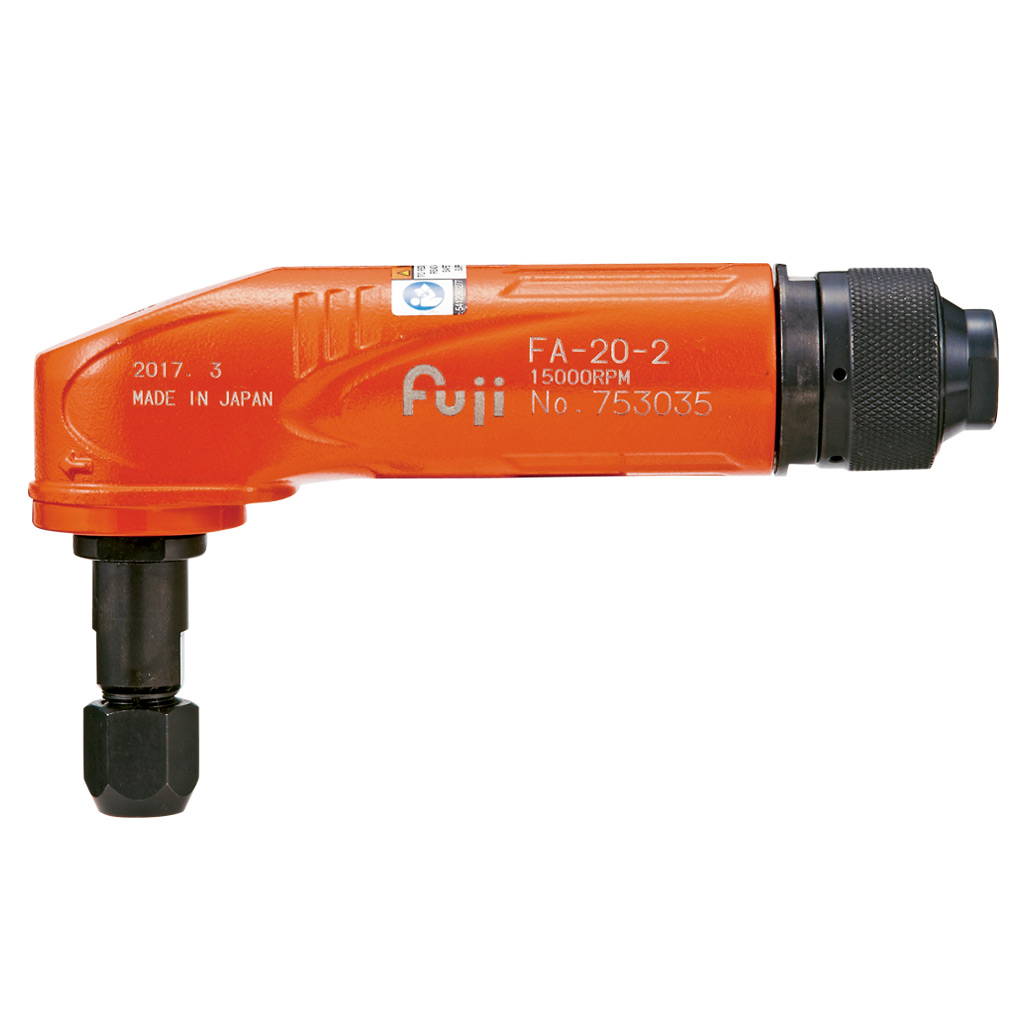

FA-20-2 1-4 N EC - Compact, low profile, Robust
