| Part number |
5412104845 |
| Model |
FA-20X-1F N EC |
| Type of wheels |
Type 27 |
| Spindle thread |
1/4-28UNF |
| Wheel size |
50 x 4 x 9.5 |
2 x 5/32 x 3/8 |
| Free speed |
15000 rpm |
| Power |
265 W |
0.36 hp |
| Side exhaust |
Rear exhaust |
| Length |
220 mm |
8.7" |
| Net weight |
0.8 kg |
1.8 lb |
| Side to center |
17.5 mm |
0.69" |
| Height over spindle |
40.5 mm |
1.59" |
| Sound pressure |
87.8 db(A) |
| Sound Power |
98.8 db(A) |
| Vibration α (ISO-28927-12) |
2.9 m/s² |
| Vibration K (ISO-20643) |
1.3 m/s² |
| Vibration α (ISO-28927-1) |
2.9 m/s² |
| Vibration K (ISO-28927-1) |
1.3 m/s² |
| Free speed air consumption |
9 l/s |
19.1 cfm |
| Min. hose size |
9.5 mm |
3/8" |

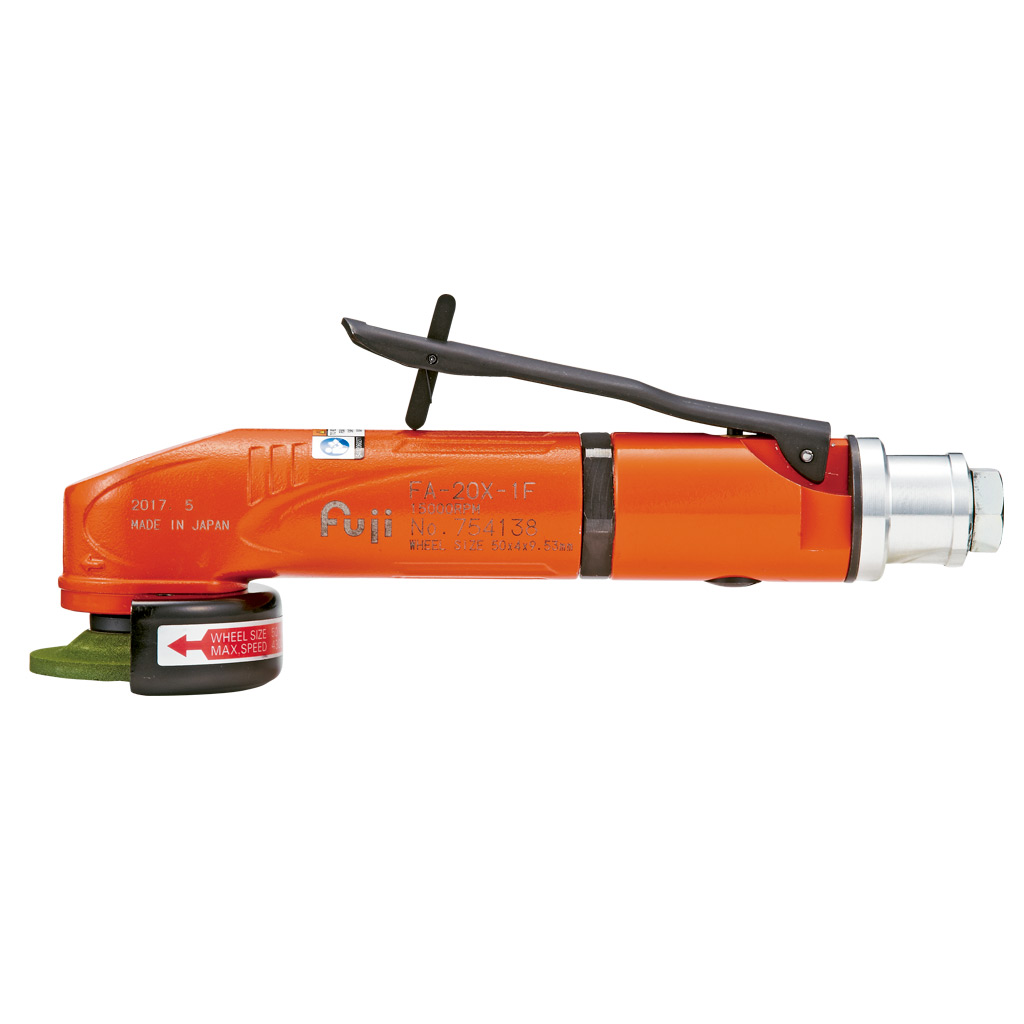

FA-20X-1F N EC - Compact, low profile, Robust
