| Part number |
5412103205 |
| Model |
FG-50H-2 1-4 N |
| Type of wheels |
Mounted point/Carbide burr |
| Throttle |
Roll throttle |
| Collet size |
6.35 mm |
1/4" |
| Max diameter of carbide burrs |
22 mm |
7/8" |
| Max diameter of mounted point |
32 mm |
1 1/4" |
| Free speed |
18000 rpm |
| Power |
340 W |
0.456 hp |
| Side exhaust |
Side exhaust |
| Length |
176 mm |
6.7" |
| Net weight |
0.8 kg |
1.8 lb |
| Side to center |
19.75 mm |
0.777" |
| Sound pressure |
79 db(A) |
| Sound Power |
90 db(A) |
| Vibration α (ISO-28927-12) |
< 2.5 m/s² |
| Vibration K (ISO-20643) |
0.7 m/s² |
| Free speed air consumption |
7.17 l/s |
15.2 cfm |
| Min. hose size |
9.5 mm |
3/8" |

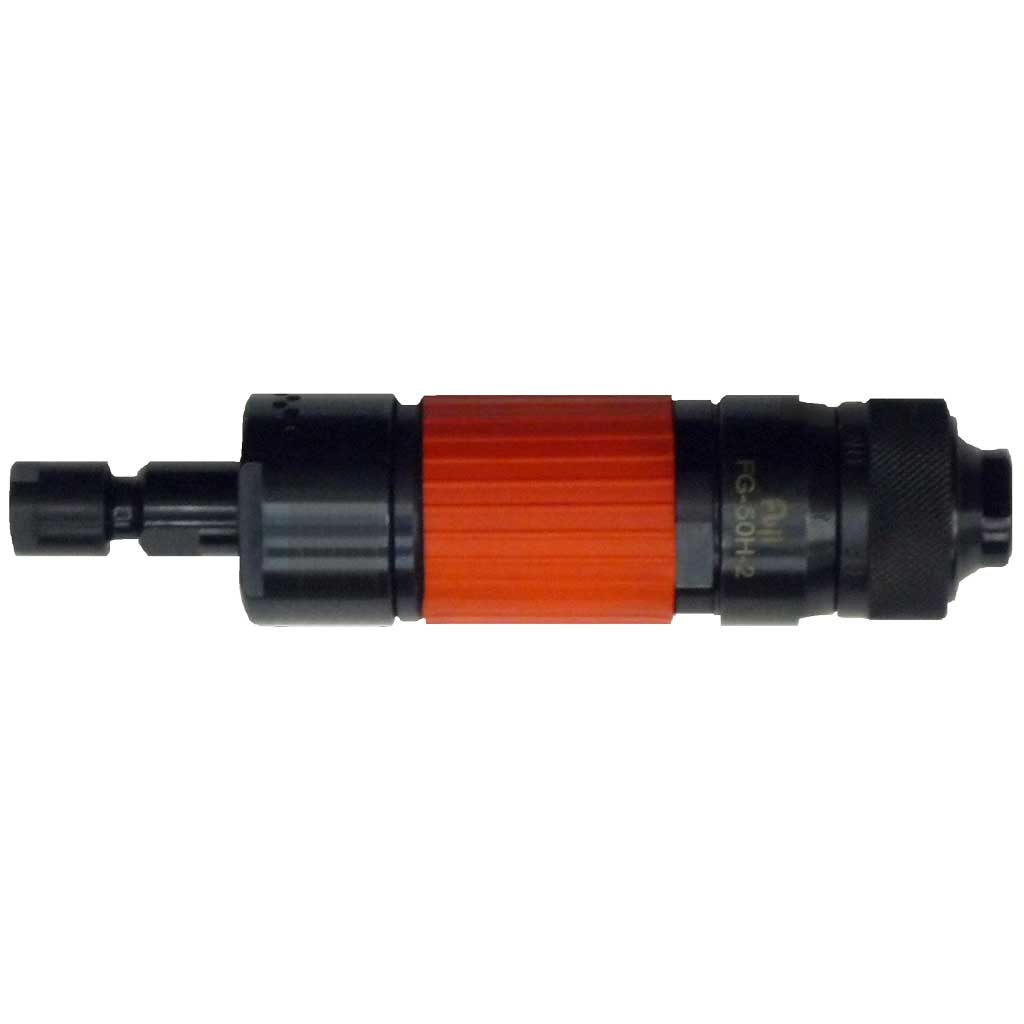

FG-50H-2 1-4 N - High power & accuracy, 1/4" collet, NPT Inlet
