| Part number |
5412104155 |
| Model |
FW-330-1C N |
| Handle type |
Straight |
| Square drive |
1" |
25,4 mm |
| Square drive |
25,4 mm |
1 |
| Working Torque Range (fwd) |
500 - 2100 Nm |
370 - 1560 |
| Maximum Torque (fwd) |
2600 Nm |
1930 ft.lbs |
| Free speed |
5000 rpm |
| Net weight |
10.7 kg |
23.8 lb |
| Length |
356 mm |
14.0" |
| Actual air consumption |
19 l/s |
40.6 cfm |
| Min. hose size |
12.7 mm |
1/2" |
| Sound pressure |
100 db(A) |
| Sound Power |
111 db(A) |
| Vibration α (ISO-28927-2) |
8.4 m/s² |
| Vibration K (ISO-28927-2) |
2.7 m/s² |
| Socket retainer |
Dual (Ring & hole) |
| Clutch type |
Pin-less rocking dog |
| Bolt size |
M33 - 36 |
|

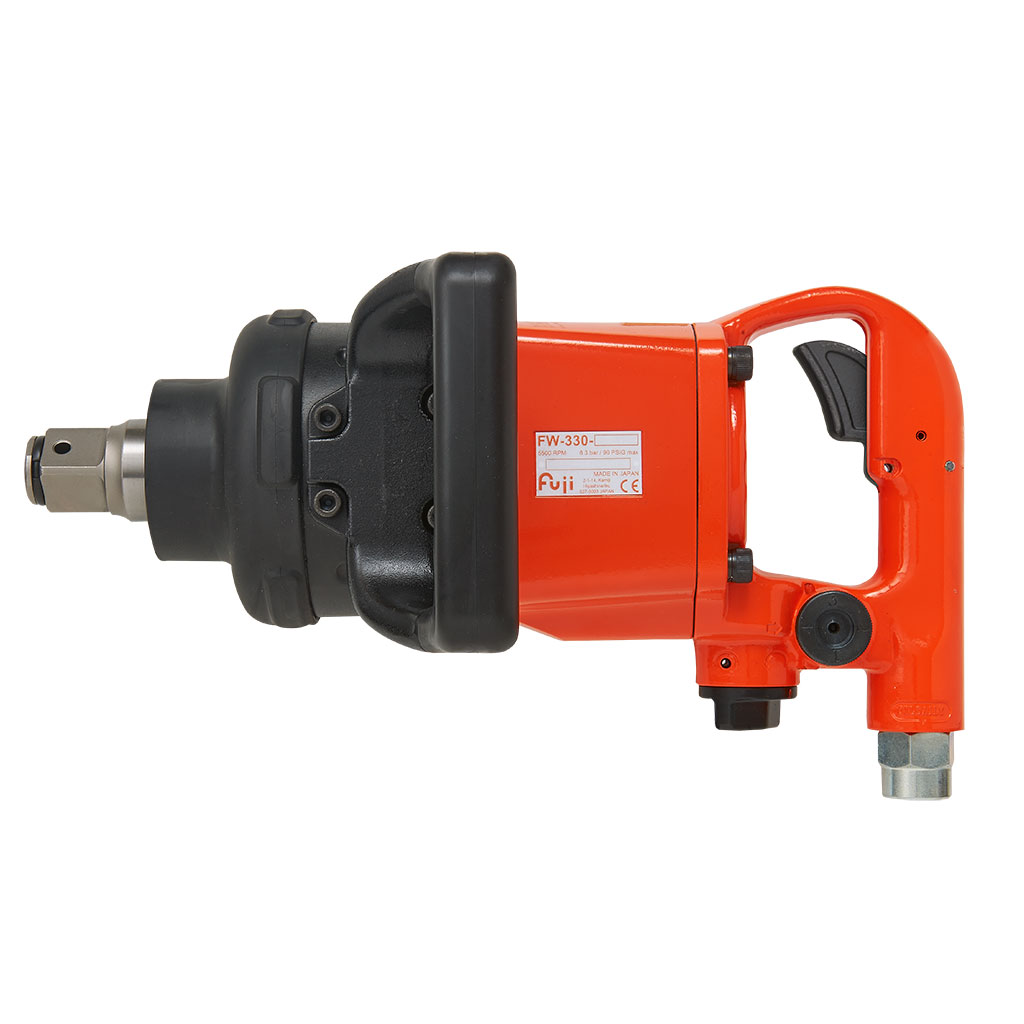

FW-330-1C N - Excellent durability, Best for heavy maintenance applications, inside trigger, NPT Inlet
