FRD-6PH-2

FRD-6PH-2

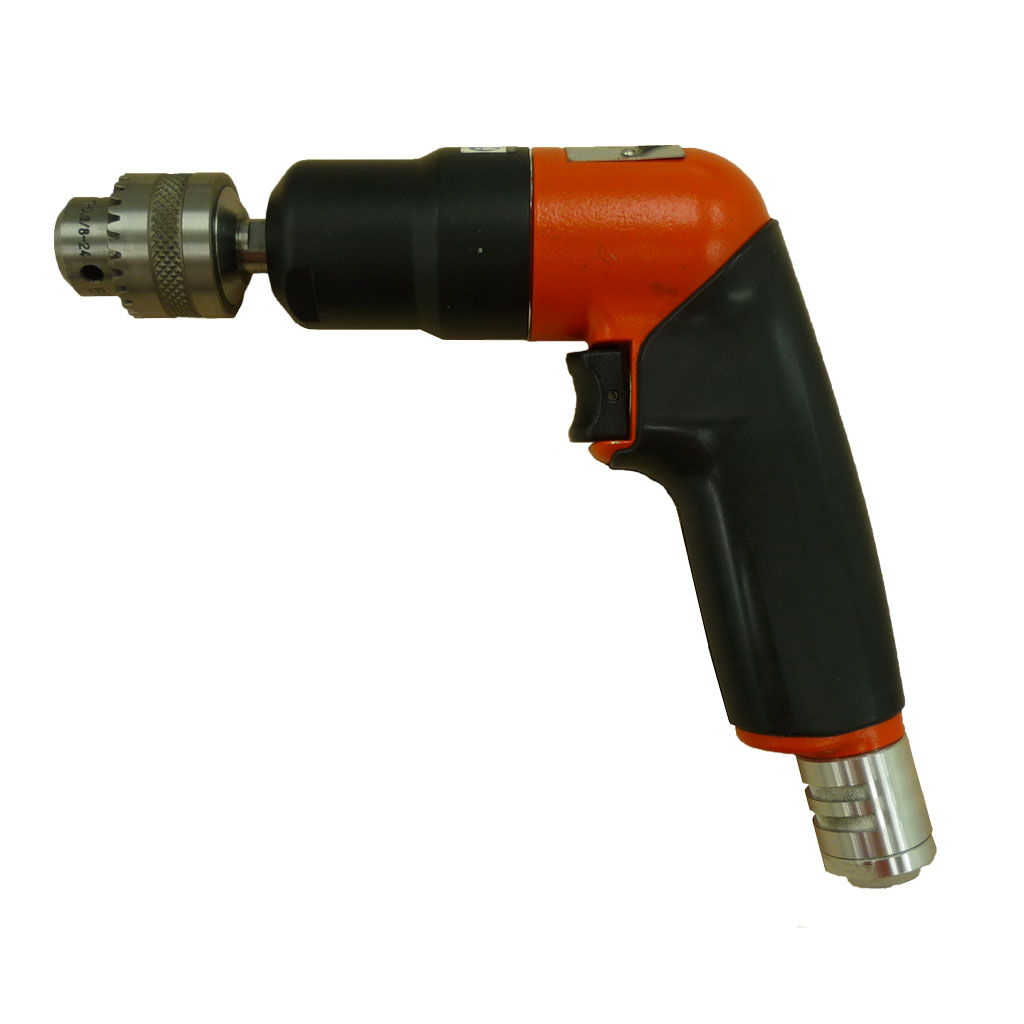

  FRD-6PH-2 - Precision & robust, taperd chuck

Part number 5412077834
Model FRD-6PH-2
Spindle or chuck type Jacobs Taper 1
Chuck capacity 6.5 mm 1/4"
Drilling capacity 5 mm 3/16"
SideToCenter_mm 21 mm 0.828125"
Free speed 4300 rpm
Power 340 W
Stall torque 2.7 Nm 2 ft.lbs
Net weight 0.9 kg 1.98 lb
Length 198 mm 7.8"
Free speed air consumption 10 l/s 20.8 cfm
Min. hose size 9.5 mm 3/8"
Sound pressure 73 db(A)
Sound Power 83.7 db(A)
Vibration α (ISO-28927-5) < 2.5 m/s²
Vibration K (ISO-28927-5) 0.74 m/s²
