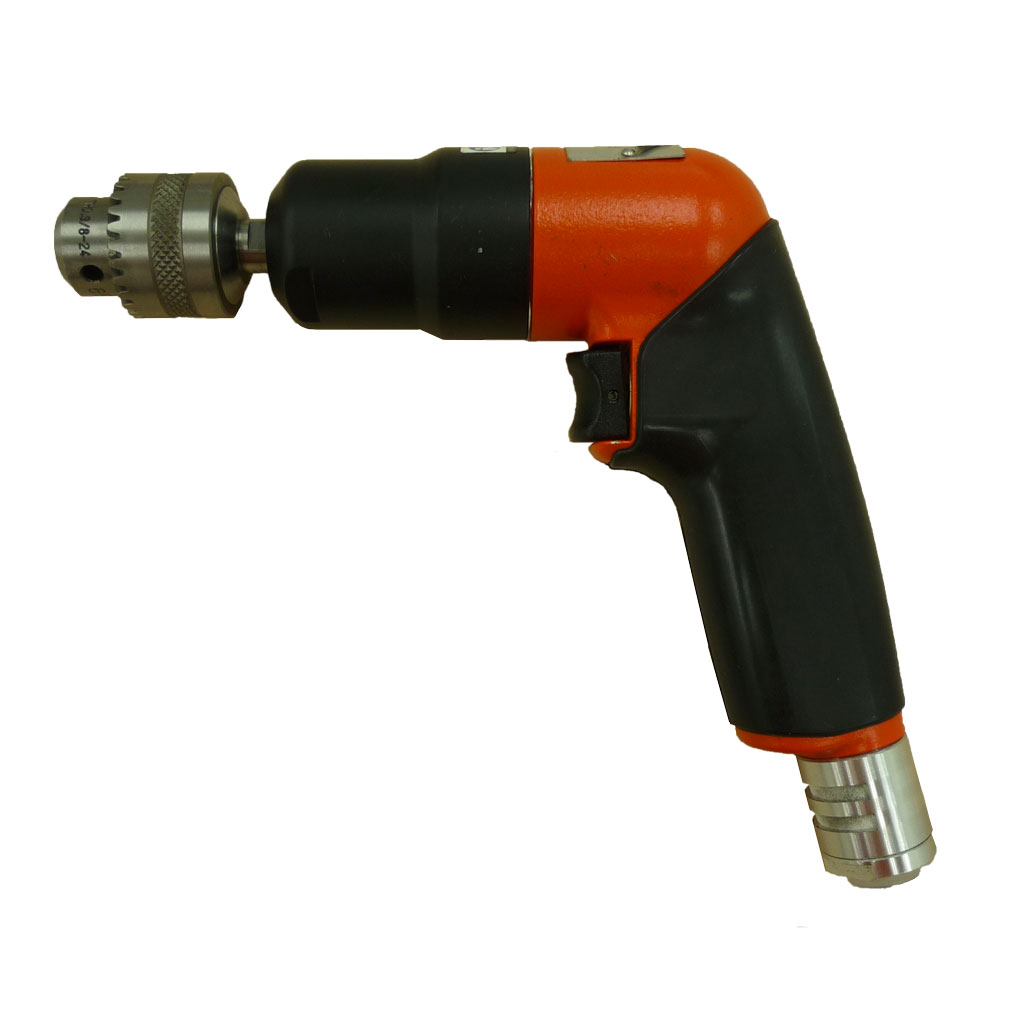

FRD-6PH-3 8 N - Precision & robust, taperd chuck, NPT inlet| Part number | 5412103221 | |
| Model | FRD-6PH-3 8 N | |
| Spindle or chuck type | Jacobs Taper 1 | |
| Chuck capacity | 8 mm | 5/16" |
| Drilling capacity | 8 mm | 5/16" |
| SideToCenter_mm | 21 mm | 0.828125" |
| Free speed | 2800 rpm | |
| Power | 340 W | |
| Stall torque | 4.3 Nm | 3.2 ft.lbs |
| Net weight | 0.99 kg | 2.18 lb |
| Length | 205 mm | 8.07" |
| Free speed air consumption | 10 l/s | 20.8 cfm |
| Min. hose size | 9.5 mm | 3/8" |
| Sound pressure | 72.6 db(A) | |
| Sound Power | 83.6 db(A) | |
| Vibration α (ISO-28927-5) | < 2.5 m/s² | |
| Vibration K (ISO-28927-5) | 1.03 m/s² | |
