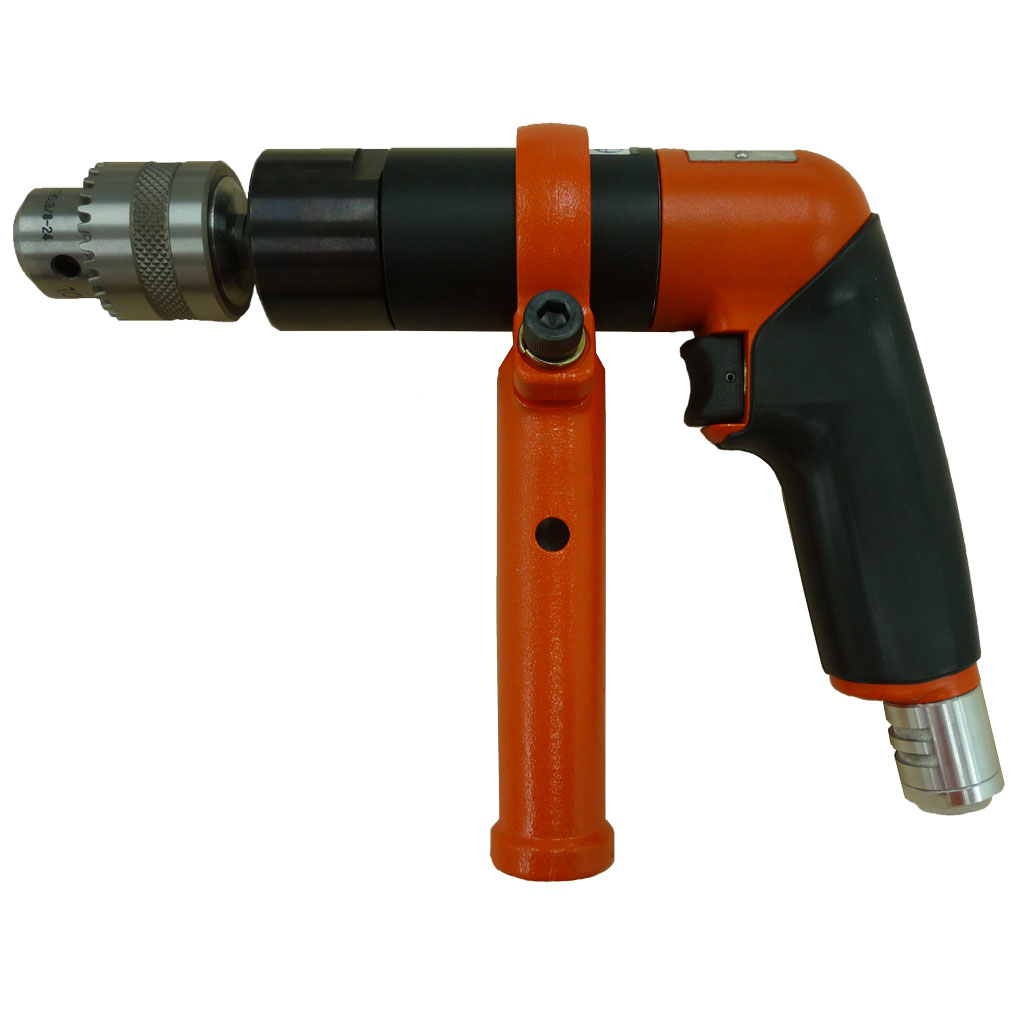

FRD-6PH-7 - Precision & robust, taperd chuck| Part number | 5412072190 | |
| Model | FRD-6PH-7 | |
| Spindle or chuck type | Jacobs Taper 6 | |
| Chuck capacity | 13 mm | 1/2" |
| Drilling capacity | 13 mm | 1/2" |
| Reaming/Tapping capacity | ||
| SideToCenter_mm | 22.5 mm | 0.890625" |
| Free speed | 600 rpm | |
| Power | 320 W | |
| Stall torque | 15.8 Nm | 11.7 ft.lbs |
| Net weight | 1.5 kg | 3.31 lb |
| Length | 258 mm | 10.1" |
| Free speed air consumption | 10 l/s | 20.8 cfm |
| Min. hose size | 9.5 mm | 3/8" |
| Sound pressure | 72.7 db(A) | |
| Sound Power | 83.7 db(A) | |
| Vibration α (ISO-28927-5) | < 2.5 m/s² | |
| Vibration K (ISO-28927-5) | 0.74 m/s² | |
