FL-5S-3 BF EC

FL-5S-3 BF EC

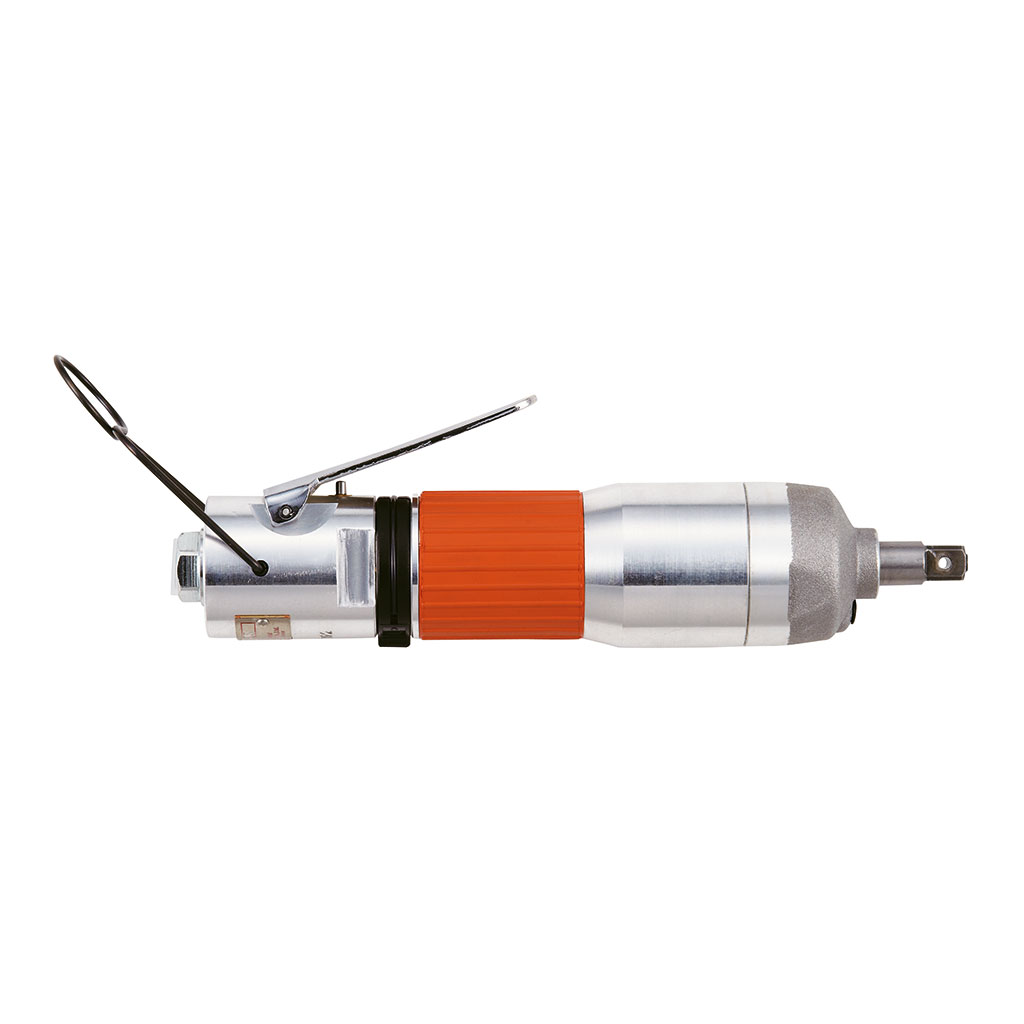

FL-5S-3 BF EC - Versatile, compact, long life, CE

Part number 5412105722
Model FL-5S-3 BF EC
Handle type Straight
Square drive Sq 3/8" Sq 9.5
Square drive Sq 9.5 mm Sq 3/8
Working Torque Range (fwd) 11 - 24 Nm 8.1 - 17.7
Free speed 7000 rpm
Net weight 0.85 kg 1.87 lb
Length 210 mm 8.27"
Side to center 22 mm 0.87"
Actual air consumption 6.7 l/s 14.1 cfm
Min. hose size 6.3 mm 1/4"
Sound pressure 79.2 db(A)
Sound Power 90.2 db(A)
Vibration α (ISO-28927-2) 4.3 m/s²
Vibration K (ISO-28927-2) 2.2 m/s²
Socket retainer Pin (BF-Anvil)
Pulse type 2-blade
Bolt size M6 - M8  1/4- -5/16
