FL-4SD-3 EC

FL-4SD-3 EC

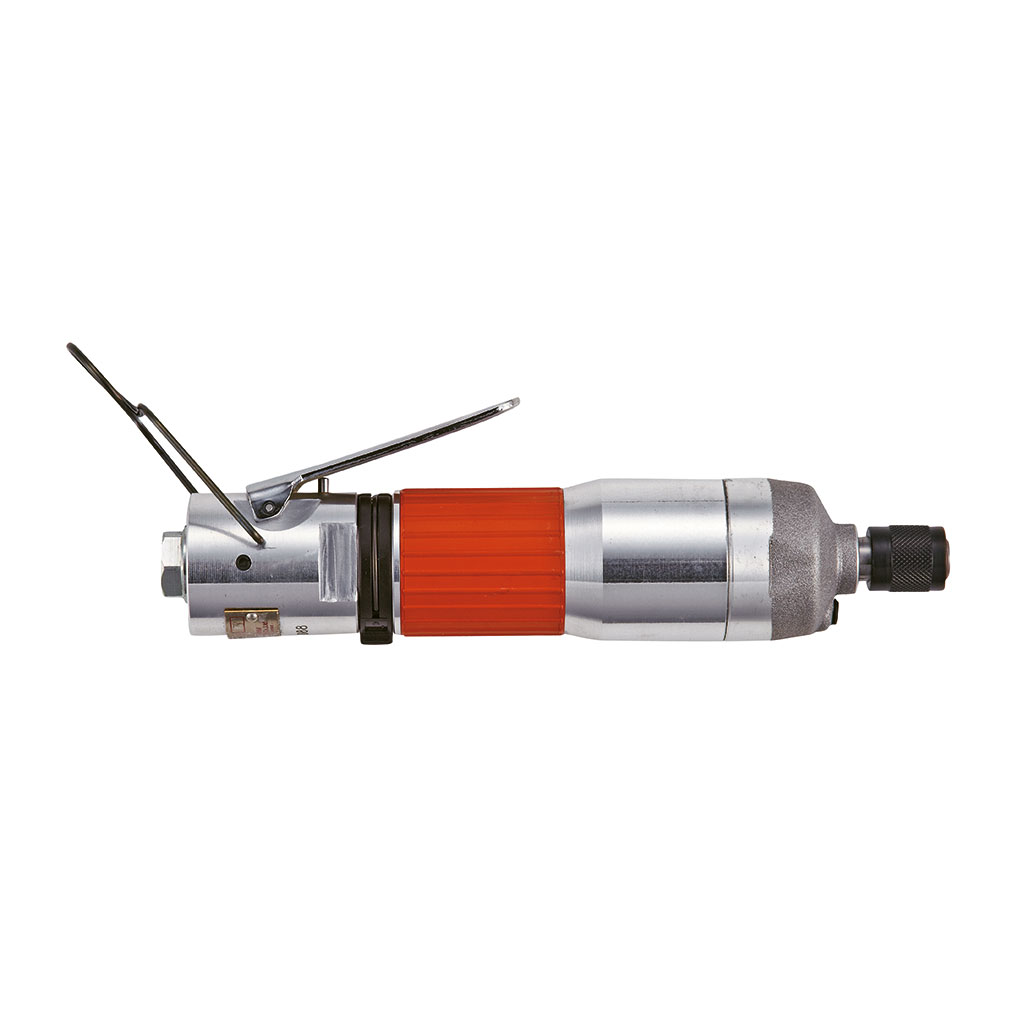

FL-4SD-3 EC - Versatile, compact, long life, CE

Part number 5412105730
Model FL-4SD-3 EC
Handle type Straight
Square drive Hex 1/4" Hex 6.35
Square drive Hex 6.35 mm Hex 1/4
Working Torque Range (fwd) 6 -14 Nm 4.4 - 10.3
Free speed 6000 rpm
Net weight 0.85 kg 1.87 lb
Length 210 mm 8.27"
Side to center 22 mm 0.87"
Actual air consumption 6 l/s 12.7 cfm
Min. hose size 6.3 mm 1/4"
Sound pressure 72.1 db(A)
Sound Power 83.1 db(A)
Vibration α (ISO-28927-2) 3 m/s²
Vibration K (ISO-28927-2) 1.4 m/s²
Socket retainer Bit Shank (Hex)
Pulse type 2-blade
Bolt size M6  1/4
