FL-6SD-3 EC

FL-6SD-3 EC

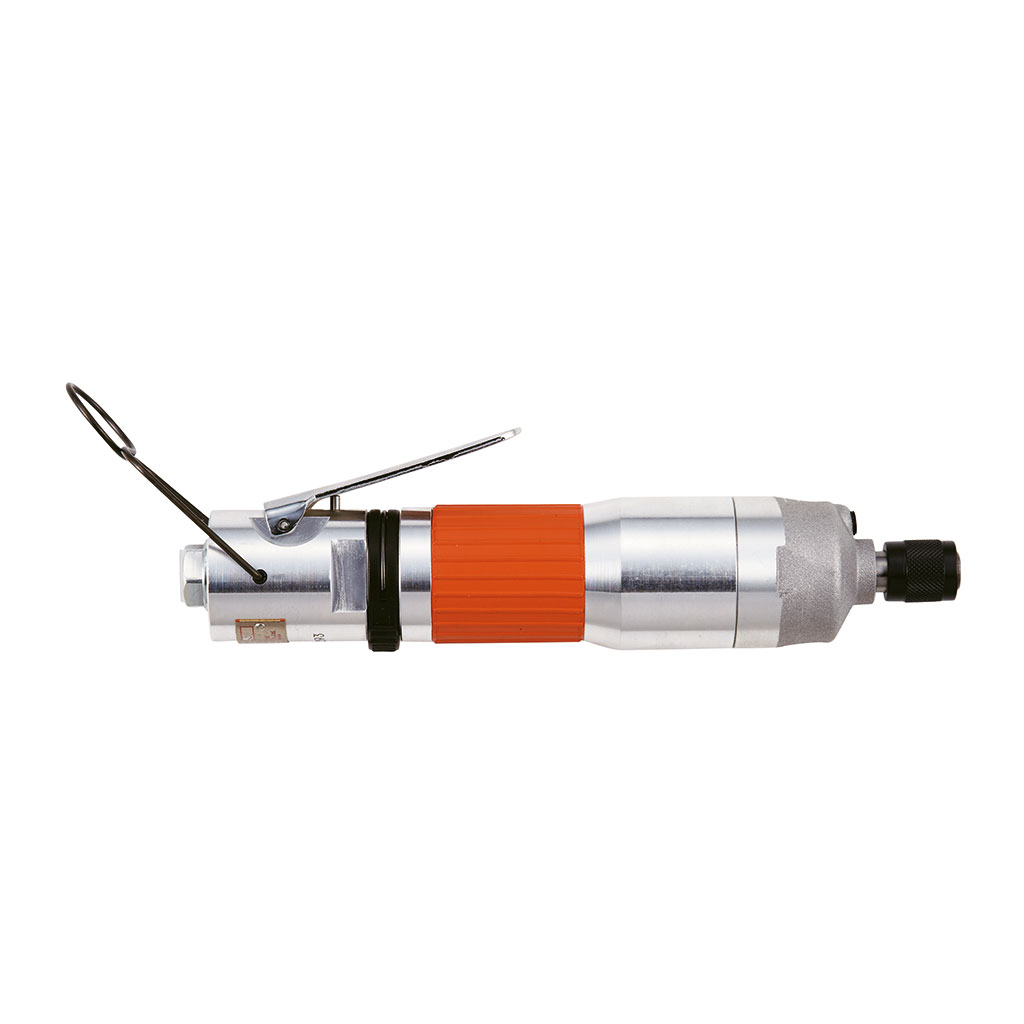

FL-6SD-3 EC - Versatile, compact, long life, CE

Part number 5412105732
Model FL-6SD-3 EC
Handle type Straight
Square drive Hex 1/4" Hex 6.35
Square drive Hex 6.35 mm Hex 1/4
Working Torque Range (fwd) 21 - 32 Nm 15.5 - 23.6
Free speed 6400 rpm
Net weight 0.9 kg 1.98 lb
Length 221 mm 8.7"
Side to center 22 mm 0.87"
Actual air consumption 7 l/s 14.8 cfm
Min. hose size 9.5 mm 3/8"
Sound pressure 79.8 db(A)
Sound Power 90.8 db(A)
Vibration α (ISO-28927-2) 4.9 m/s²
Vibration K (ISO-28927-2) 2.3 m/s²
Socket retainer Bit Shank (Hex)
Pulse type 2-blade
Bolt size M8  5/16
