FL-13-3 BF

FL-13-3 BF

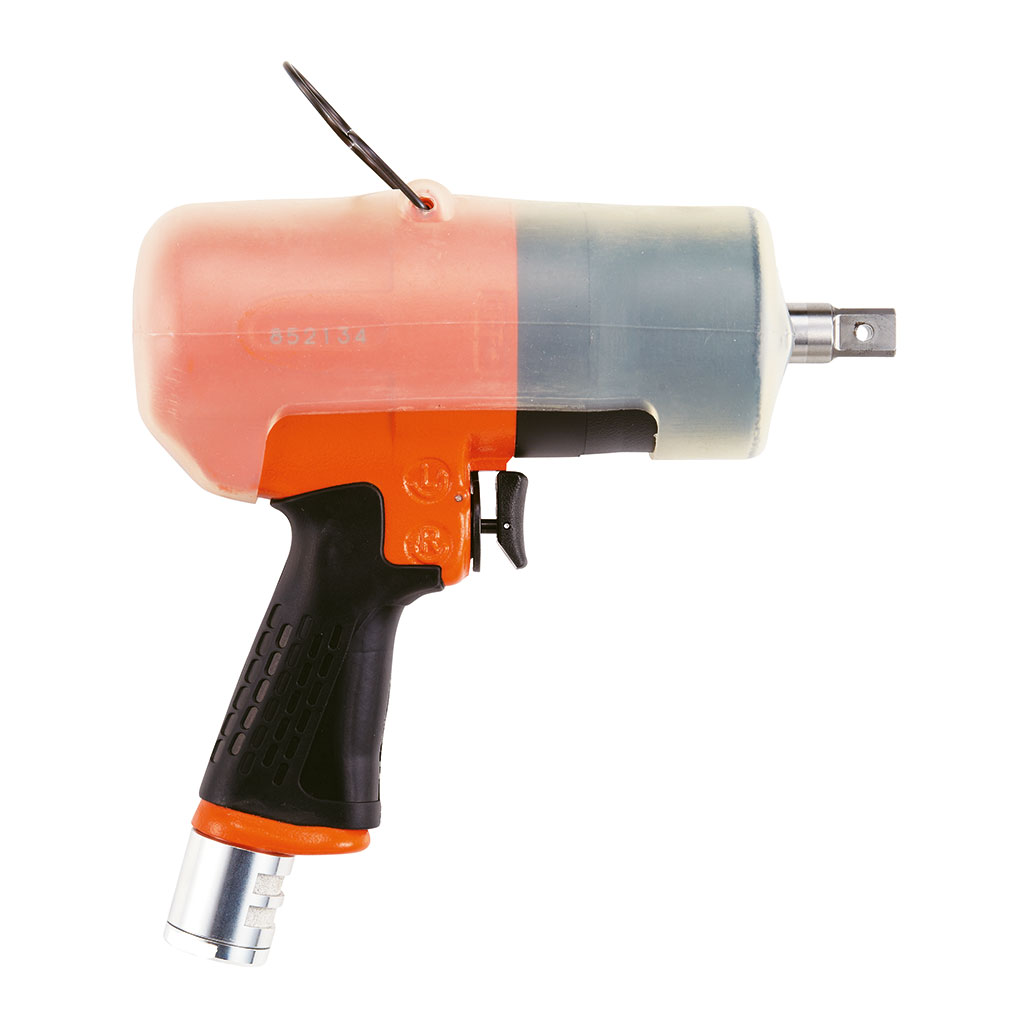

 FL-13-3 BF - Versatile, compact, long life

Part number 5412105628
Model FL-13-3 BF
Handle type Pistol
Square drive Sq 1/2" Sq 12.7
Square drive Sq 12.7 mm Sq 1/2
Working Torque Range (fwd) 120 -172 Nm 88.4 - 126.8
Free speed 3800 rpm
Net weight 2.1 kg 4.63 lb
Length 192 mm 7.56"
Side to center 32 mm 1.26"
Actual air consumption 14 l/s 30 cfm
Min. hose size 9.5 mm 3/8"
Sound pressure 83.9 db(A)
Sound Power 94.9 db(A)
Vibration α (ISO-28927-2) 4.1 m/s²
Vibration K (ISO-28927-2) 2.1 m/s²
Socket retainer Pin (BF-Anvil)
Pulse type 2-blade
Bolt size M12 - M14  1/2 - 9/16
