| Part number |
5412105605 |
| Model |
FL-9-3 BF |
| Handle type |
Pistol |
| Square drive |
Sq 1/2" |
Sq 12.7 |
| Square drive |
Sq 12.7 mm |
Sq 1/2 |
| Working Torque Range (fwd) |
52 - 96 Nm |
38.3 - 70.8 |
| Free speed |
4600 rpm |
| Net weight |
1.45 kg |
3.2 lb |
| Length |
173 mm |
6.81" |
| Side to center |
27 mm |
1.06" |
| Actual air consumption |
11 l/s |
23 cfm |
| Min. hose size |
9.5 mm |
3/8" |
| Sound pressure |
79.3 db(A) |
| Sound Power |
90.3 db(A) |
| Vibration α (ISO-28927-2) |
3.4 m/s² |
| Vibration K (ISO-28927-2) |
1.3 m/s² |
| Socket retainer |
Pin (BF-Anvil) |
| Pulse type |
2-blade |
| Bolt size |
M10 |
3/8 |

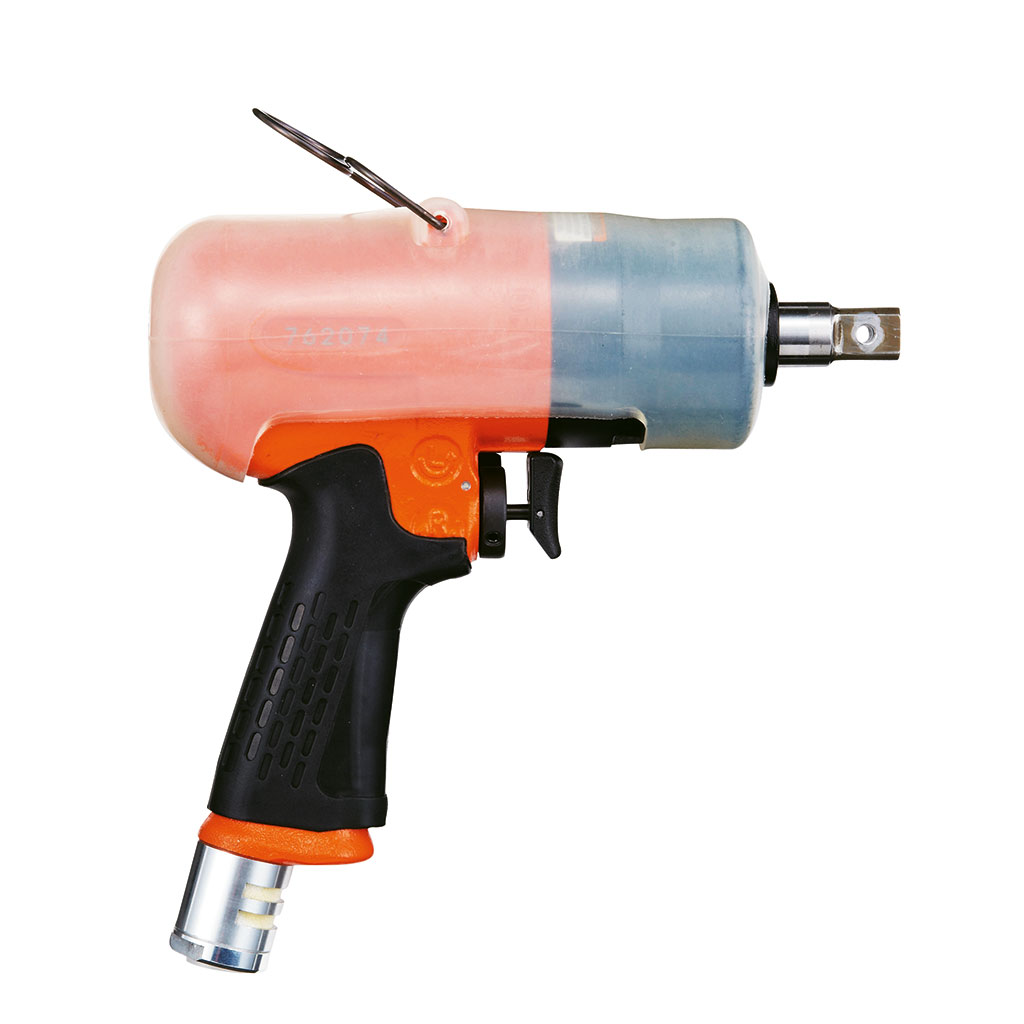

FL-9-3 BF - Versatile, compact, long life
