FL-6S-3 P

FL-6S-3 P

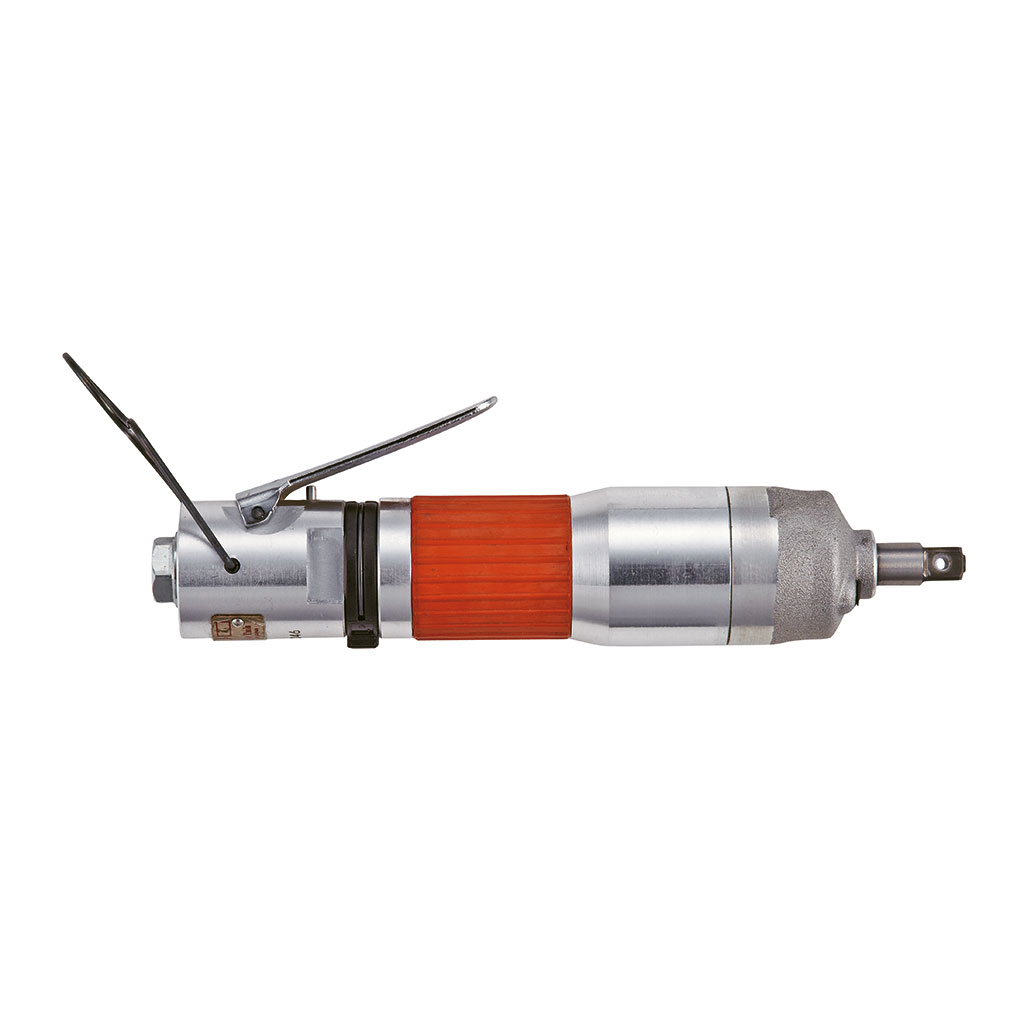

FL-6S-3 P - Versatile, compact, long life

Part number 5412105364
Model FL-6S-3 P
Handle type Straight
Square drive Sq 3/8" Sq 9.5
Square drive Sq 9.5 mm Sq 3/8
Working Torque Range (fwd) 21 - 32 Nm 15.5 - 23.6
Free speed 6400 rpm
Net weight 0.9 kg 1.98 lb
Length 221 mm 8.7"
Side to center 22 mm 0.87"
Actual air consumption 7 l/s 14.8 cfm
Min. hose size 9.5 mm 3/8"
Sound pressure 79.8 db(A)
Sound Power 90.8 db(A)
Vibration α (ISO-28927-2) 5.2 m/s²
Vibration K (ISO-28927-2) 2.4 m/s²
Socket retainer Hole (P-Anvil)
Pulse type 2-blade
Bolt size M8  5/16
