FL-6-3 P

FL-6-3 P

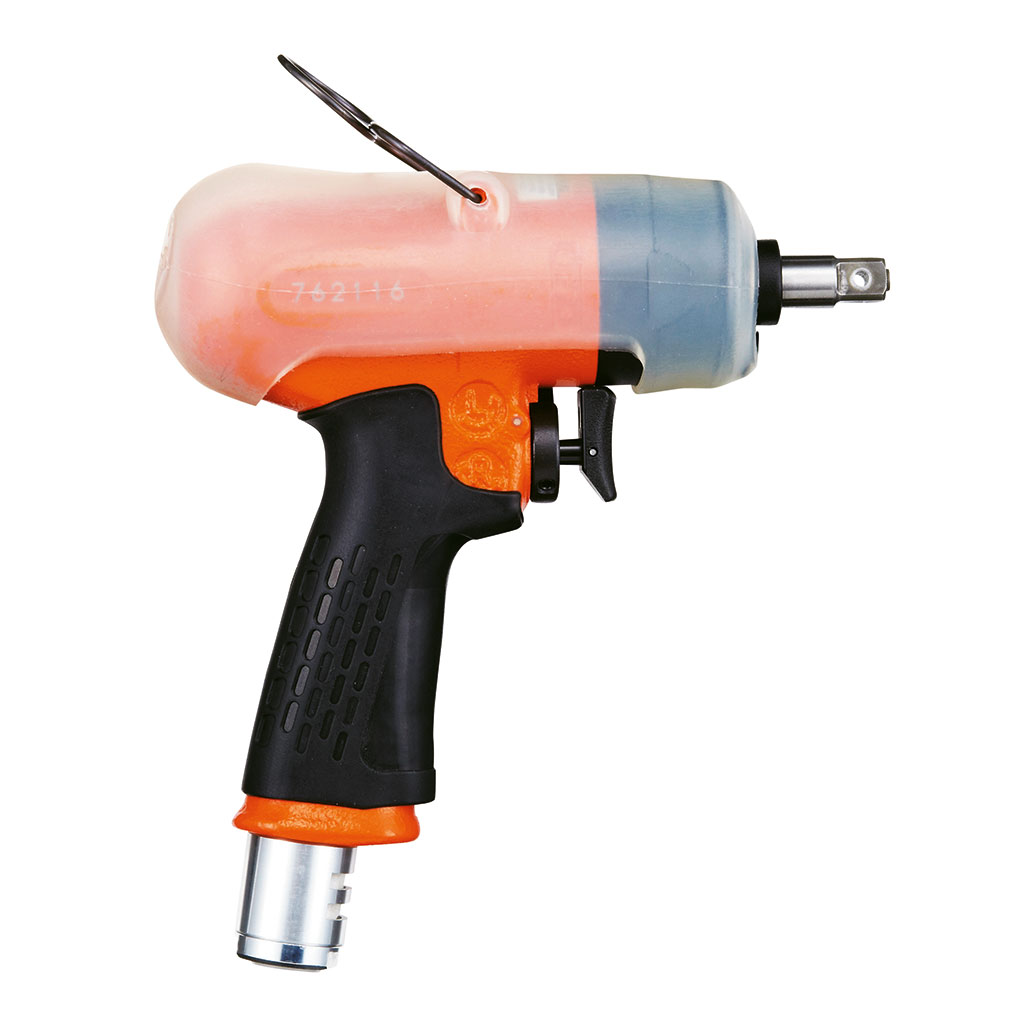

FL-6-3 P - Versatile, compact, long life

Part number 5412105354
Model FL-6-3 P
Handle type Pistol
Square drive Sq 3/8" Sq 9.5
Square drive Sq 9.5 mm Sq 3/8
Working Torque Range (fwd) 28 - 56 Nm 20.6 - 41.3
Free speed 6700 rpm
Net weight 0.83 kg 1.83 lb
Length 152 mm 5.98"
Side to center 22 mm 0.87"
Actual air consumption 7 l/s 14.8 cfm
Min. hose size 9.5 mm 3/8"
Sound pressure 82.2 db(A)
Sound Power 93.2 db(A)
Vibration α (ISO-28927-2) < 2.5 m/s²
Vibration K (ISO-28927-2) 0.6 m/s²
Socket retainer Hole (P-Anvil)
Pulse type 2-blade
Bolt size M8  5/16
