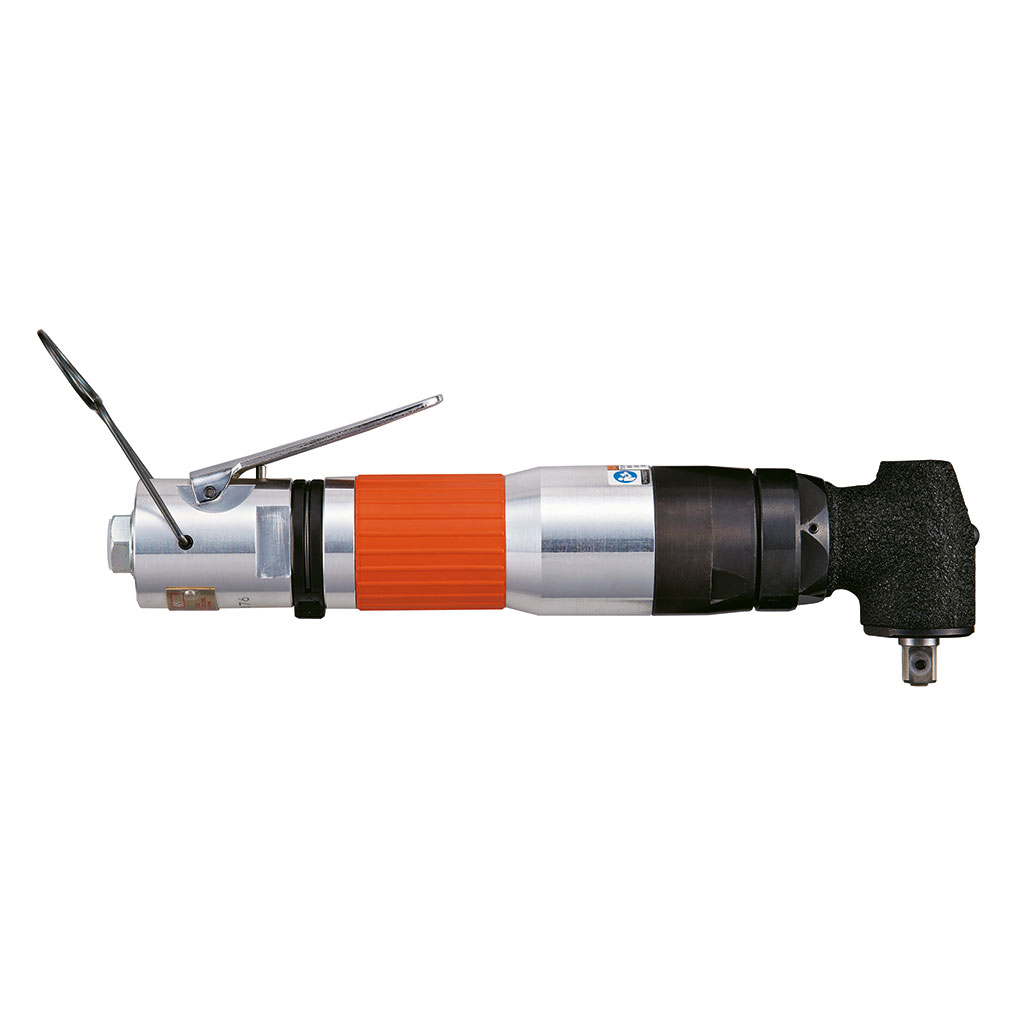

FL-6SC-3 P - Angle head, Versatile, compact, long life

Part number 5412105566
Model FL-6SC-3 P
Handle type Straight
Square drive Sq 3/8" Sq 9.5
Square drive Sq 9.5 mm Sq 3/8
Working Torque Range (fwd) 19 - 29 Nm 14.0 - 21.4
Free speed 5900 rpm
Net weight 1.3 kg 2.87 lb
Length 252 mm 9.92"
Side to center 22 mm 0.87"
Actual air consumption 5.7 l/s 12 cfm
Min. hose size 9.5 mm 3/8"
Sound pressure 84.6 db(A)
Sound Power 95.6 db(A)
Vibration α (ISO-28927-2) 12.3 m/s²
Vibration K (ISO-28927-2) 3.8 m/s²
Socket retainer Hole (P-Anvil)
Pulse type 2-blade
Bolt size M8  5/16
