| Part number |
5412105564 |
| Model |
FL-5SC-3 P |
| Handle type |
Straight |
| Square drive |
Sq 3/8" |
Sq 9.5 |
| Square drive |
Sq 9.5 mm |
Sq 3/8 |
| Working Torque Range (fwd) |
10 - 22 Nm |
7.4 - 16.2 |
| Free speed |
6600 rpm |
| Net weight |
1.2 kg |
2.65 lb |
| Length |
238 mm |
9.37" |
| Side to center |
22 mm |
0.87" |
| Actual air consumption |
5.5 l/s |
11.7 cfm |
| Min. hose size |
6.3 mm |
1/4" |
| Sound pressure |
83.8 db(A) |
| Sound Power |
94.8 db(A) |
| Vibration α (ISO-28927-2) |
13.4 m/s² |
| Vibration K (ISO-28927-2) |
4.3 m/s² |
| Socket retainer |
Hole (P-Anvil) |
| Pulse type |
2-blade |
| Bolt size |
M6 - M8 |
1/4- -5/16 |

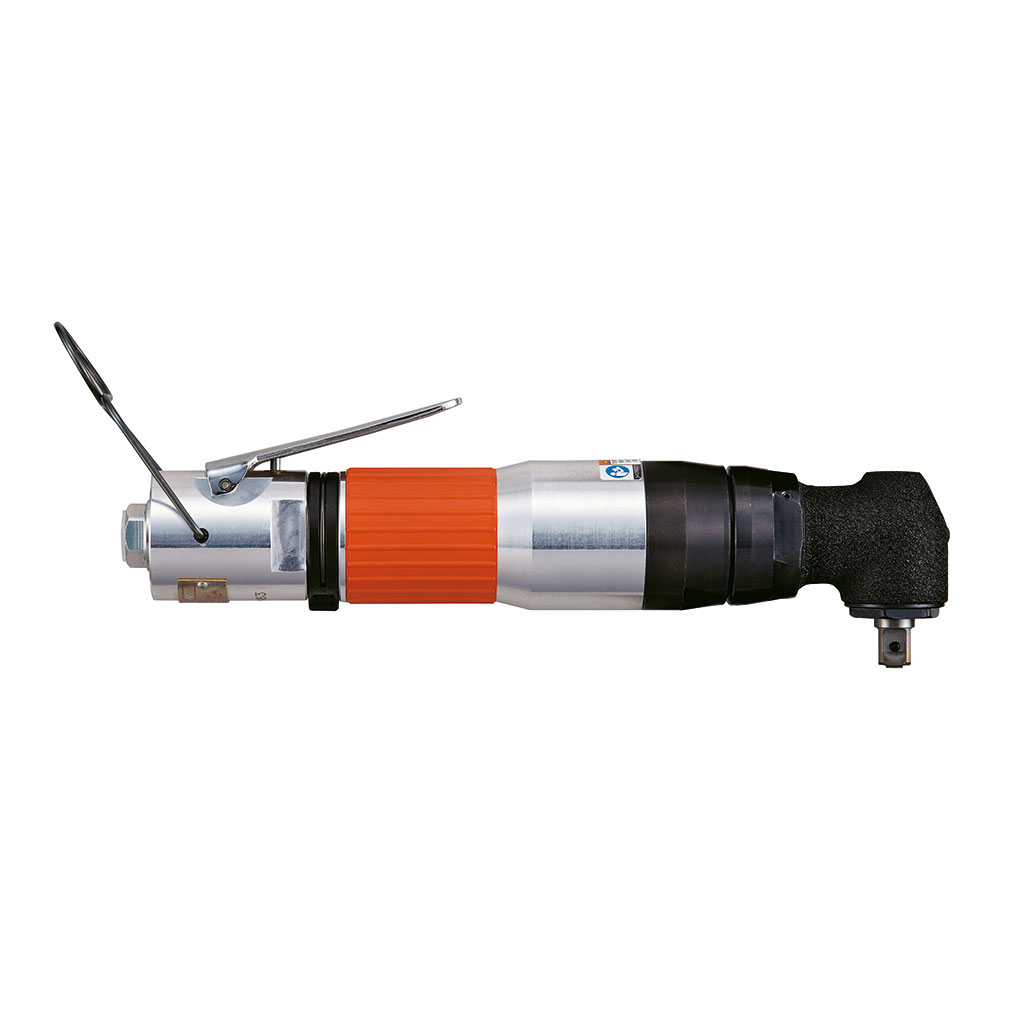

FL-5SC-3 P - Angle head, Versatile, compact, long life
