FLT-4-3 BF

FLT-4-3 BF

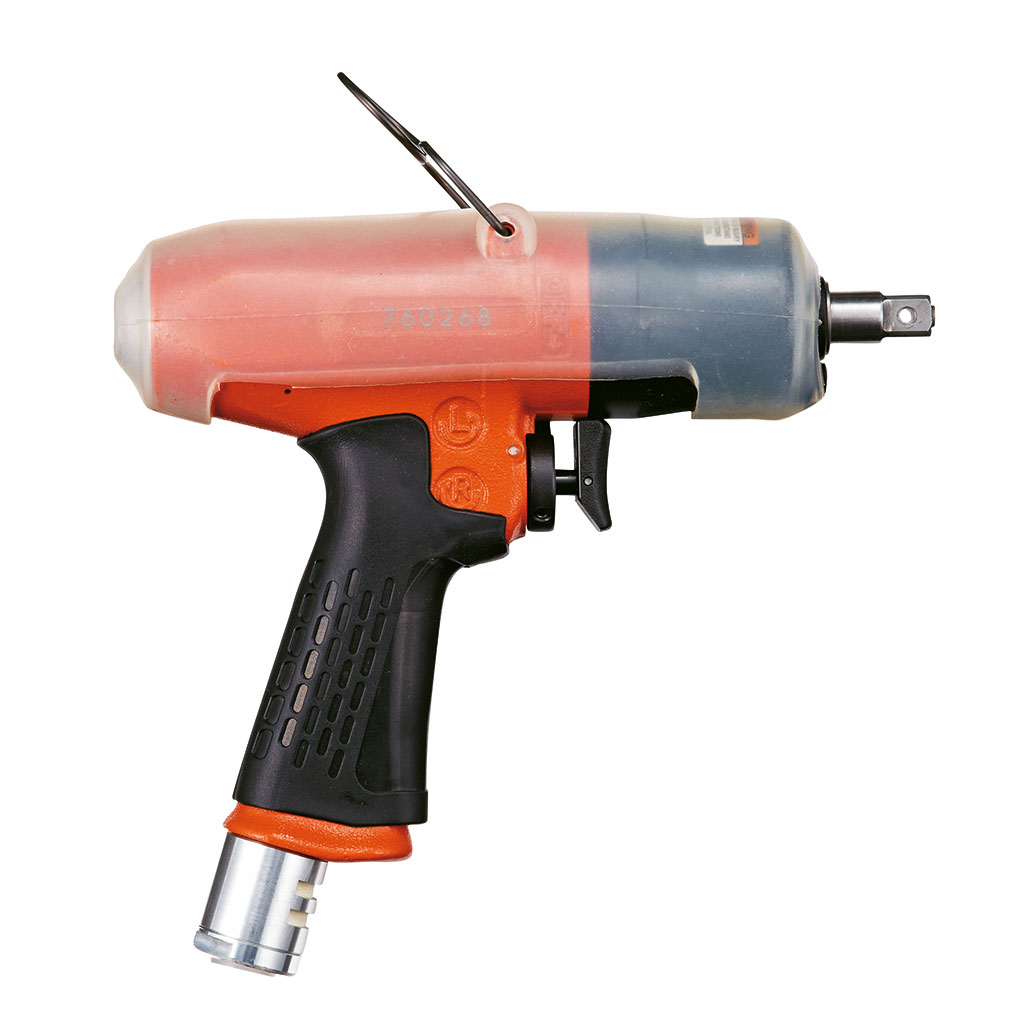

FLT-4-3 BF - Compact, accurate & long life

Part number 5412105757
Model FLT-4-3 BF
Handle type Pistol
Square drive Sq 3/8" Sq 9.5
Square drive Sq 9.5 mm Sq 3/8
Working Torque Range (fwd) 5 - 12 Nm 3.7 - 8.8
Free speed 6200 rpm
Net weight 0.97 kg 2.14 lb
Length 181 mm 7.13"
Side to center 22 mm 0.87"
Actual air consumption 6.7 l/s 14.1 cfm
Min. hose size 6.3 mm 1/4"
Sound pressure 74.7 db(A)
Sound Power 85.7 db(A)
Vibration α (ISO-28927-2) < 2.5 m/s²
Vibration K (ISO-28927-2) 0.4 m/s²
Socket retainer Pin (BF-Anvil)
Pulse type 2-blade
Bolt size M5 - M6  No.10 -1/4
