FLT-7-3 BF CD

FLT-7-3 BF CD

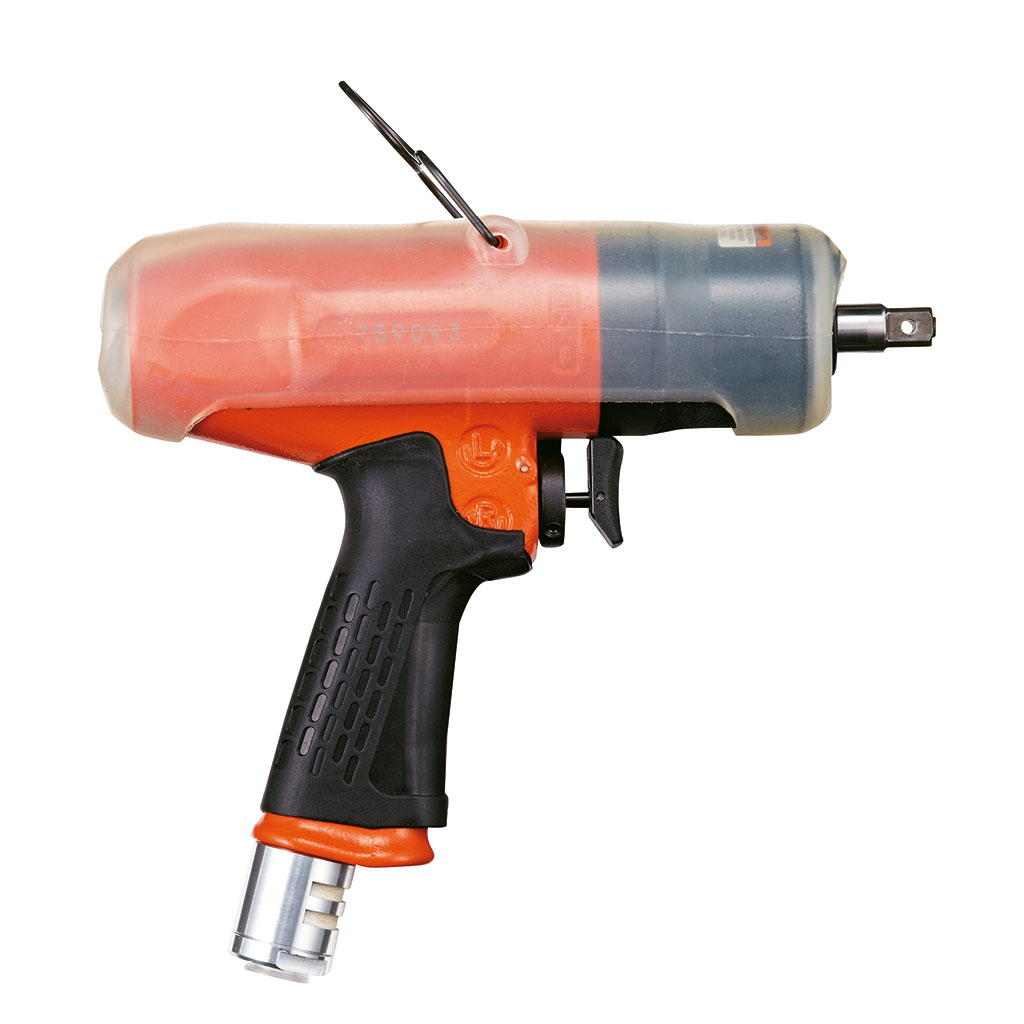

FLT-7-3 BF CD - Compact, accurate & long life, for count down

Part number 5412105708
Model FLT-7-3 BF CD
Handle type Pistol
Square drive Sq 3/8" Sq 9.5
Square drive Sq 9.5 mm Sq 3/8
Working Torque Range (fwd) 30 - 50 Nm 22.1 - 36.9
Free speed 6100 rpm
Net weight 1.1 kg 2.43 lb
Length 189.5 mm 7.46"
Side to center 24 mm 0.942"
Actual air consumption 10 l/s 21.2 cfm
Min. hose size 9.5 mm 3/8"
Sound pressure 80.7 db(A)
Sound Power 91.7 db(A)
Vibration α (ISO-28927-2) < 2.5 m/s²
Vibration K (ISO-28927-2) 0.9 m/s²
Socket retainer Pin (BF-Anvil)
Pulse type 2-blade
Bolt size M8 - M10  5/6 - 3/8
