FLT-9-3 BF

FLT-9-3 BF

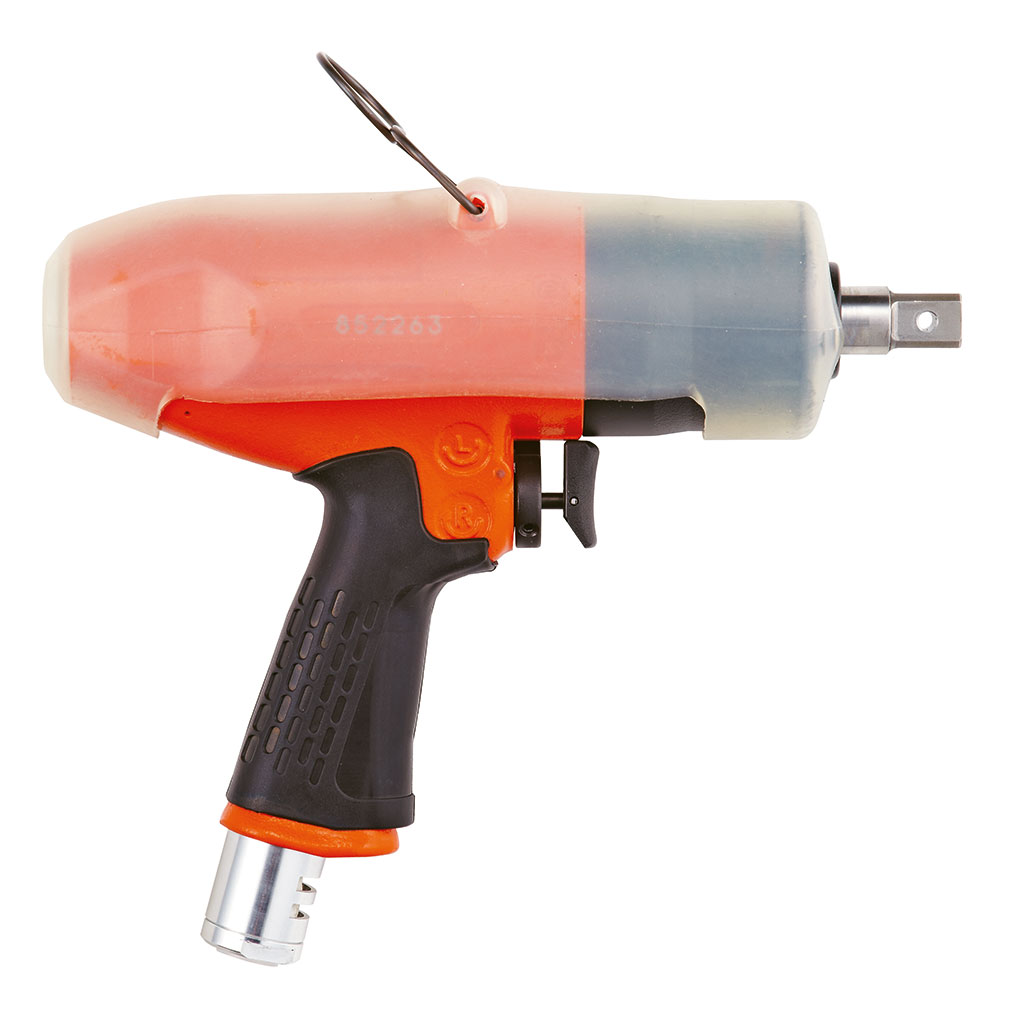

FLT-9-3 BF - Compact, accurate & long life

Part number 5412105638
Model FLT-9-3 BF
Handle type Pistol
Square drive Sq 1/2" Sq 12.7
Square drive Sq 12.7 mm Sq 1/2
Working Torque Range (fwd) 45 - 85 Nm 33.2 - 62.7
Free speed 4800 rpm
Net weight 1.6 kg 3.53 lb
Length 209 mm 8.23"
Side to center 27 mm 1.06"
Actual air consumption 11 l/s 24 cfm
Min. hose size 9.5 mm 3/8"
Sound pressure 79.5 db(A)
Sound Power 90.5 db(A)
Vibration α (ISO-28927-2) 3.7 m/s²
Vibration K (ISO-28927-2) 1.5 m/s²
Socket retainer Pin (BF-Anvil)
Pulse type 2-blade
Bolt size M10  1/2
