FG-5PX-1 N

FG-5PX-1 N

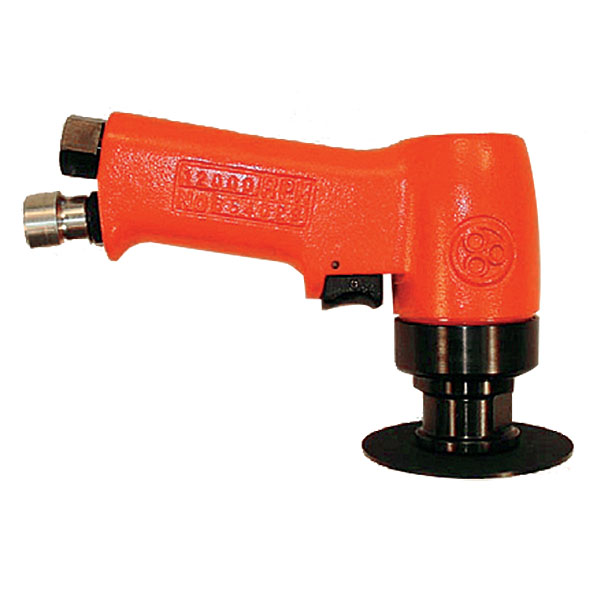

FG-5PX-1 N - Light & robust, NPT inlet

Part number 5412052879
Model FG-5PX-1 N
Pad type Disc 125mm / 5in
Pad Size 115 x 1.5 x 22  4-1/2 x 1/16 x 0.866
Paper size 125 x - x 22.2  5 x - x 7/8
Free speed 12000 rpm
Spindle thread 3/8-24UNF
Height over spindle 108 mm 4.25"
Power 370 W 0.49 hp
Length 170 mm 6.69"
Net weight 1 kg 2.2 lb
Sound pressure 84 db(A)
Sound Power 95 db(A)
Vibration α (ISO-28927-3) < 2.5 m/s²
Vibration K (ISO-28927-3) 0.51 m/s²
Actual air consumption 0.5 l/s 17.7 cfm
Free speed air consumption 8.4 l/s 17.7 cfm
Min. hose size 9.5 mm 3/8"
