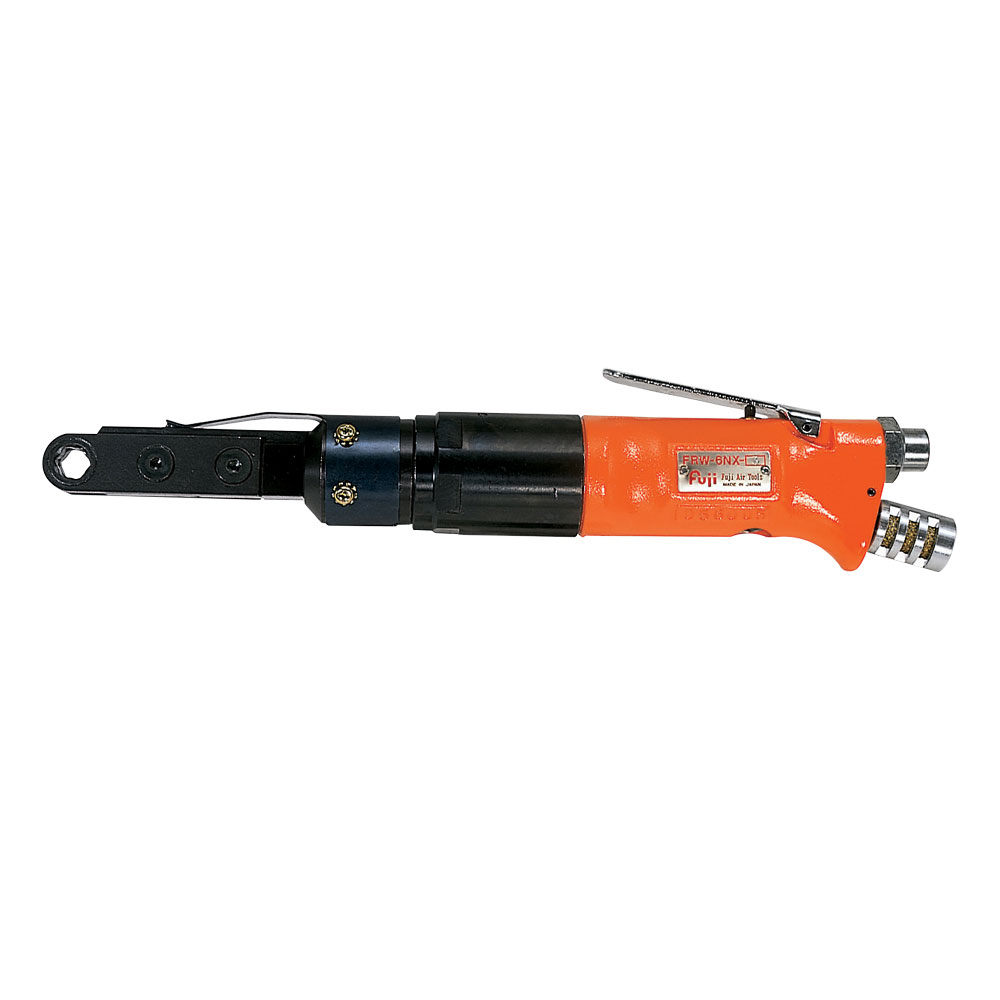

FRW-6NX-3 10 - Compact, 10mm socket| Part number | 5412053439 | |
| Model | FRW-6NX-3 10 | |
| Square drive | Hex 0.394" | Hex 10 |
| Square drive | Hex 10 mm | Hex 0.394 |
| Working torque Range | 4.0 - 6.0 Nm | 2.9 - 4.4 |
| Max torque | 10.8 Nm | 8.1 ft.lbs |
| Free speed | 200 rpm | |
| Head thickness | 13 mm | 0.51" |
| Head width | 20 mm | 0.79" |
| Net weight | 1.2 kg | 2.6 lb |
| Length | 316 mm | 12.4" |
| Actual air consumption | 4.2 l/s | 8.8 cfm |
| Min. hose size | 9.5 mm | 3/8" |
| Sound pressure | 85 db(A) | |
| Sound Power | 96 db(A) | |
| Vibration α (ISO-28927-2) | < 2.5 m/s² | |
| Vibration K (ISO-28927-2) | 0.6 m/s² | |
| Bolt size | M6 | 1/4 |
