| Part number |
5412053606 |
| Model |
FW-5SXD-7 |
| Handle type |
Straight |
| Square drive |
1/4" Hex." |
Hex. 6.35 |
| Square drive |
Hex. 6.35 mm |
1/4" Hex. |
| Working Torque Range (fwd) |
3 - 8 Nm |
2.2 - 5.9 |
| Maximum Torque (fwd) |
14 Nm |
10 ft.lbs |
| Free speed |
12000 rpm |
| Net weight |
0.7 kg |
1.54 lb |
| Length |
223 mm |
8.78" |
| Actual air consumption |
3.3 l/s |
7.1 cfm |
| Min. hose size |
6.3 mm |
1/4" |
| Sound pressure |
82 db(A) |
| Sound Power |
93 db(A) |
| Vibration α (ISO-28927-2) |
9.5 m/s² |
| Vibration K (ISO-28927-2) |
2.8 m/s² |
| Socket retainer |
Bit Shank (Hex) |
| Clutch type |
Double hammers |
| Bolt size |
M5 |
No.10 |

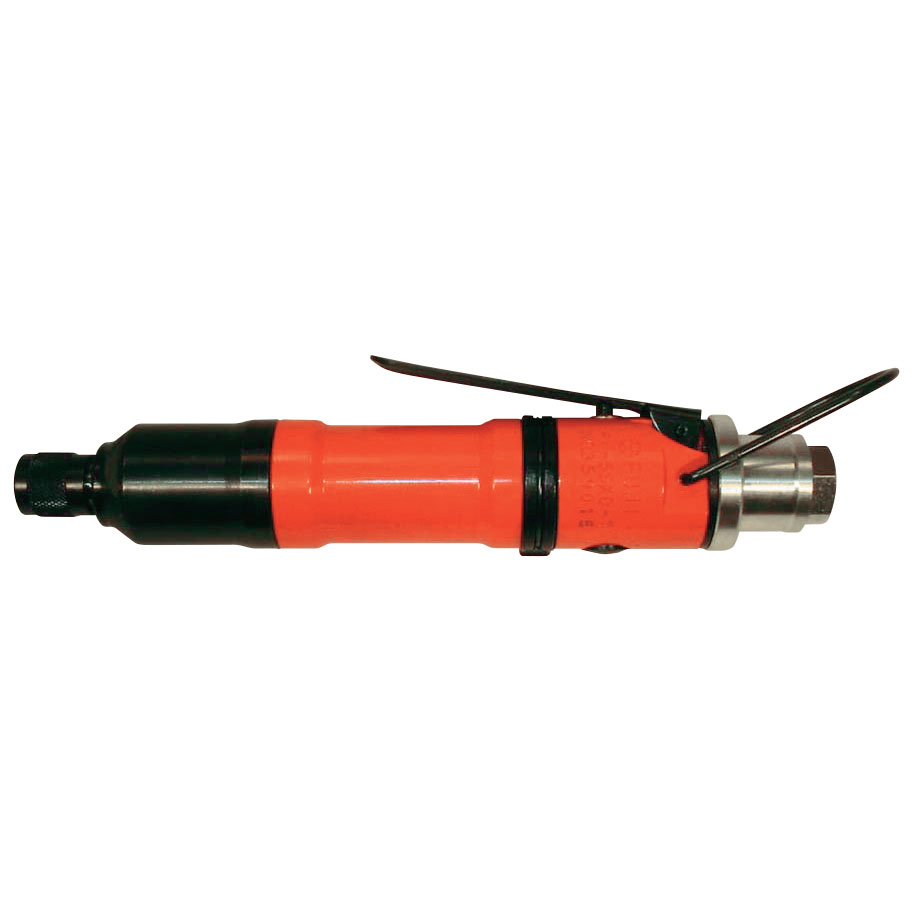

FW-5SXD-7 - Compact, short bit
