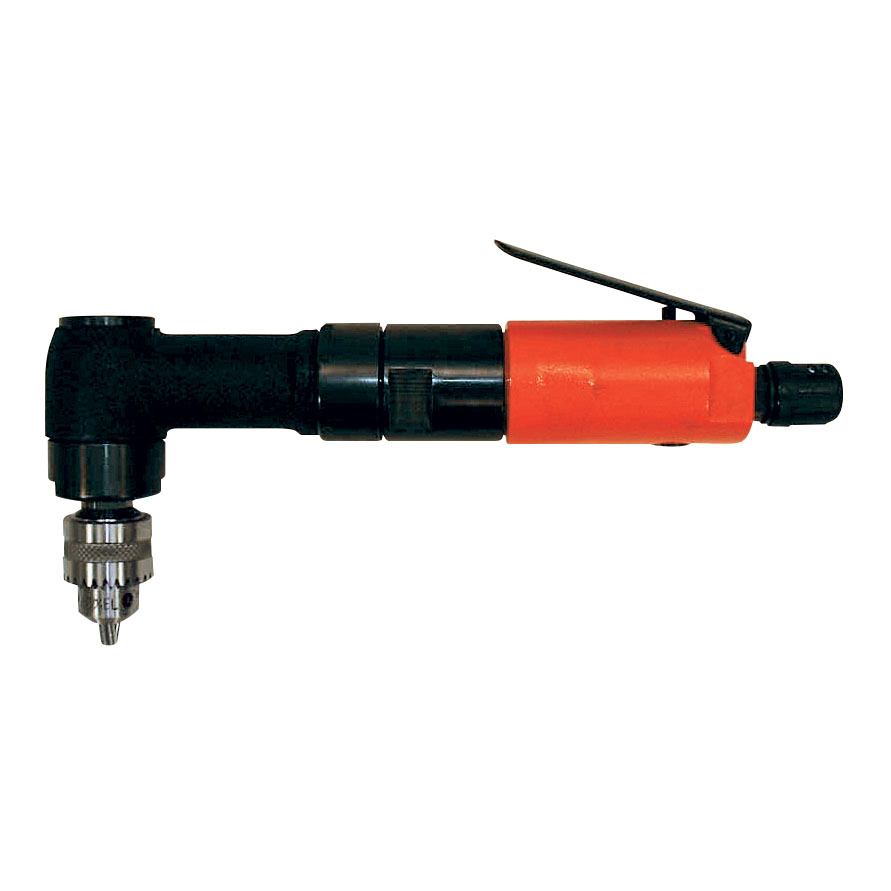

FCD-6X-1 E - Strong angle head| Part number | 5412052534 | |
| Model | FCD-6X-1 E | |
| Spindle or chuck type | 3/8-24UNF | |
| Chuck capacity | 6.5 mm | 1/4" |
| Drilling capacity | 6 mm | 1/4" |
| SideToCenter_mm | 21 mm | 0.828125" |
| Free speed | 2500 rpm | |
| Power | 290 W | |
| Stall torque | 4.9 Nm | 3.6 ft.lbs |
| Net weight | 1.7 kg | 3.75 lb |
| Length | 267 mm | 10.5" |
| Free speed air consumption | 11 l/s | 23.3 cfm |
| Min. hose size | 9.5 mm | 3/8" |
| Sound pressure | 80.6 db(A) | |
| Sound Power | 91.6 db(A) | |
| Vibration α (ISO-28927-5) | < 2.5 m/s² | |
| Vibration K (ISO-28927-5) | 0.5 m/s² | |
