Replaceable protective cover
Reliable Gearbox: 13,000 cycles before maintenance
Vane type high performance air motor same as industrial impact wrench
Capable of reaching high torque accuracy
Different reaction arm types and shapes available
Reduce operator fatigue and risks of MSDs
| Metric | Imperial | |
|---|---|---|

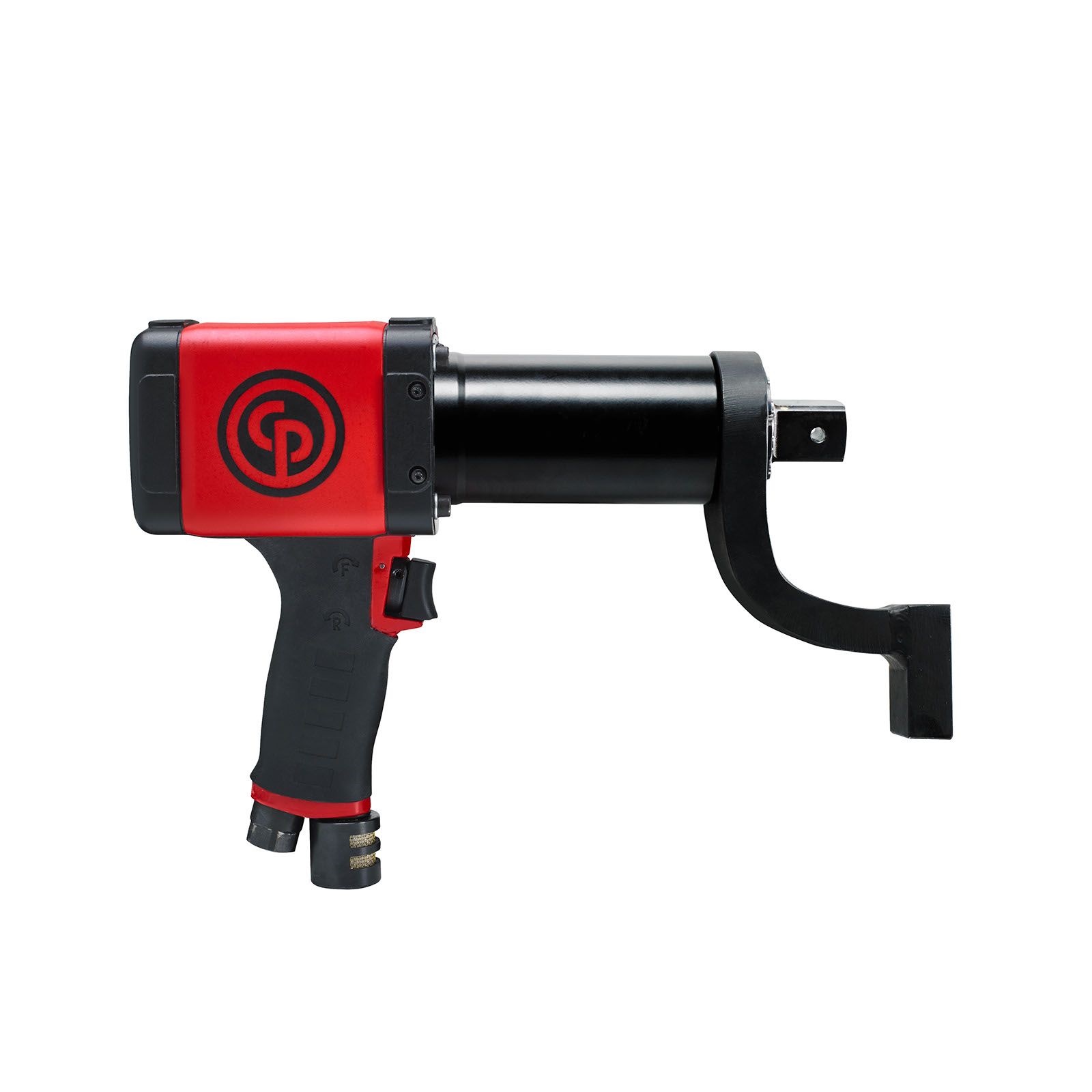

| Model | CP6626 | |
| Part number | 6151800100 | |
| Bolt size | 20 - 36 mm | 3/4 - 1 3/8 " |
| European Directives | 2006/42/EC (17/05/2006) | |
| European Sound standard | ISO 15744 | |
| European Standards | EN ISO 11148-6:2013 | |
| Free speed | 10 rpm | |
| Handle type | Pistol | |
| Height | 212 mm | 8.34 " |
| Length | 300 mm | 12 " |
| Maximum Torque (fwd) | 2600 Nm | 1900 ft.lbs |
| Maximum Torque (reverse) | 2600 Nm | 1900 ft.lbs |
| Net weight | 5.1 kg | 11.2 lb |
| Reaction bar | S-type | |
| Reversible | Reversible | |
| Side to center | 34 mm | 1.34 " |
| Socket retainer | Hole | |
| Sound Power | 101 db(A) | |
| Sound pressure | 90 db(A) | |
| Sound uncertainty | 3 db(A) | |
| Square drive | 25 mm | |
| Torque preset # | Multi | |
| Vibration | <2,5 m/s² | |
| Vibration ISO | ISO 28927-2 | |
| Weight Including Reaction Arm | 6.5 kg | 14,3 lb |
| Weight w/o Reaction Arm | 5.1 kg | 11.2 lb |
| Width | 72 mm | 2.83 " |
| Working Torque Range (fwd) | 700 - 2600 Nm | 520 - 1900 ft.lbs |
| Working Torque Range (reverse) | 700 - 2600 Nm | 520 - 1900 ft.lbs |
