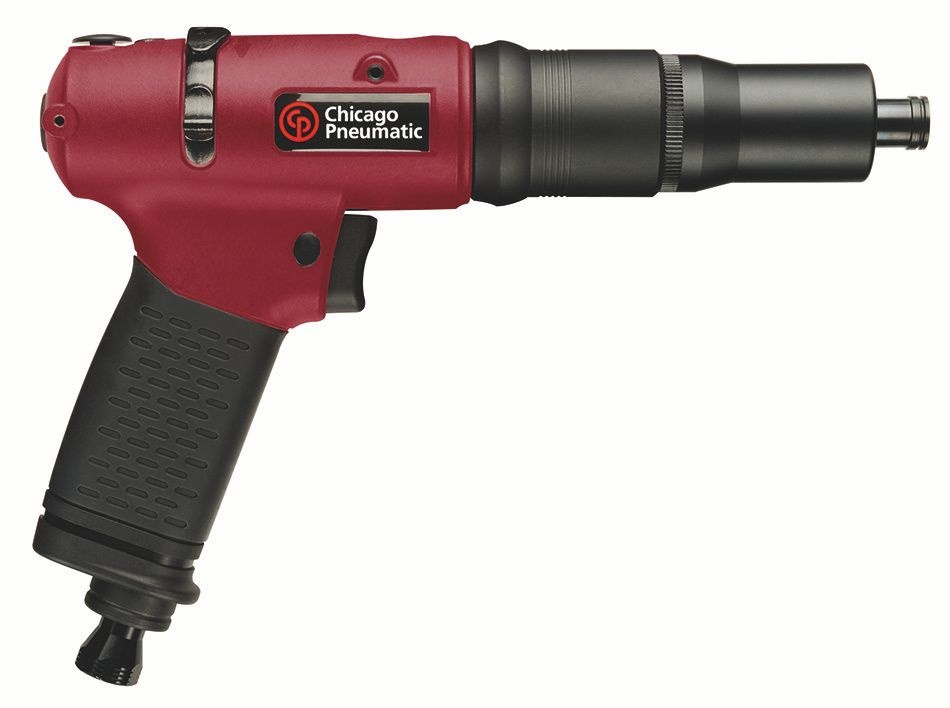

Automatic Shut-off clutch screwdriver
Pistol shape with Progressive trigger
One-hand reverse button
3 air inlets for versatile access
Keyless Torque setting adjustment
Color rings for identification
| Metric | Imperial | |
|---|---|---|
| Model | CP2611 | |
| Part number | 6151922611 | |
| Air inlet thread size | 1/4 " | |
| Bit holder | Quick Change Hexagonal Female | |
| Clutch type | Shut off | |
| Diameter | 23 mm | 0.89 " |
| Free speed | 1000 rpm | |
| Free speed air consumption | 10 l/s | 21.189 cfm |
| Handle type | Pistol | |
| Height | 175 mm | 6.9 " |
| Length | 235 mm | 9.25 " |
| Max working torque | 7.5 Nm | 5.53 ft.lbs |
| Min working torque | 1 Nm | 0.737 ft.lbs |
| Min. hose size | 10 mm | 3/8 " |
| Net weight | 1.1 kg | 2.4 lb |
| Output drive | 1/4 " | |
| Screw type hard | yes | |
| Screw type soft | yes | |
| Screw type very soft | yes | |
| Sound Power | 91 db(A) | |
| Sound pressure | 80 db(A) | |
| Vibration | <2.5 m/s² | |
| Vibration ISO | ISO-28927-2 | |
| Vibration uncertainty (K) | - m/s² |
