Pulse Wrenches

Pulse Wrenches

FET Series

CONTROLLING DYNAMIC TORQUE BY OIL PRESSURE
The Fuji FET system wrench is equipped with a torque transducer which enables torque control and monitoring on critical applications.

MINIMIZE TIGHTENING TORQUE SCATTER
Installed tightening torque tends to scatter for soft joint applications due to relaxation issues. To combat this, the FET system has functionality to add additional pulses after reaching torque target which ensures a more stable output.

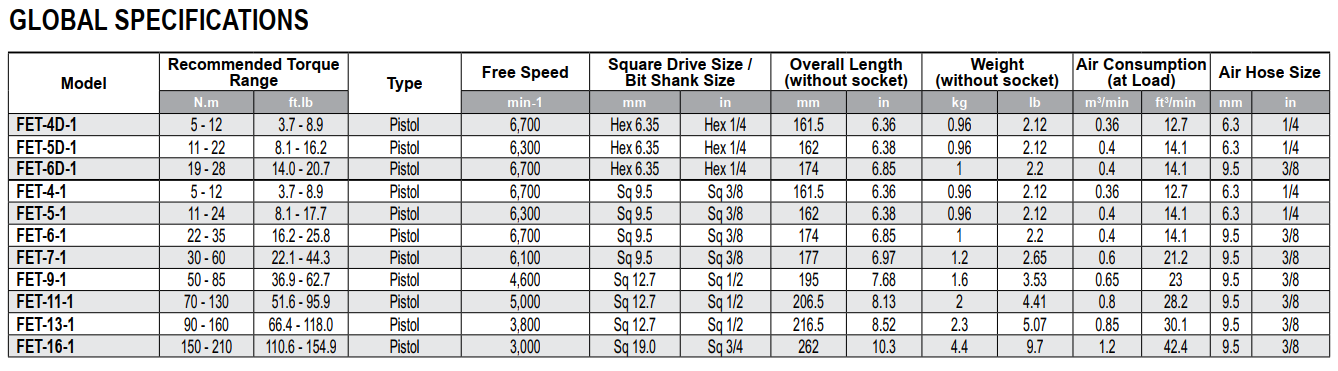

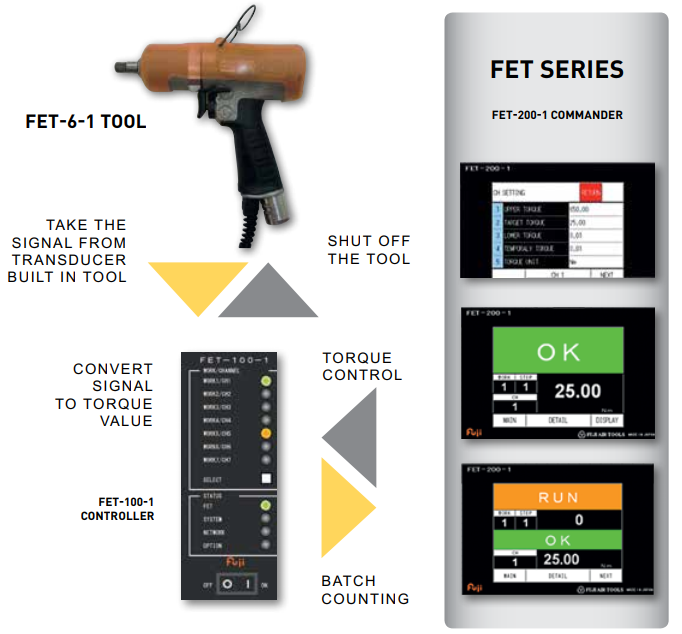

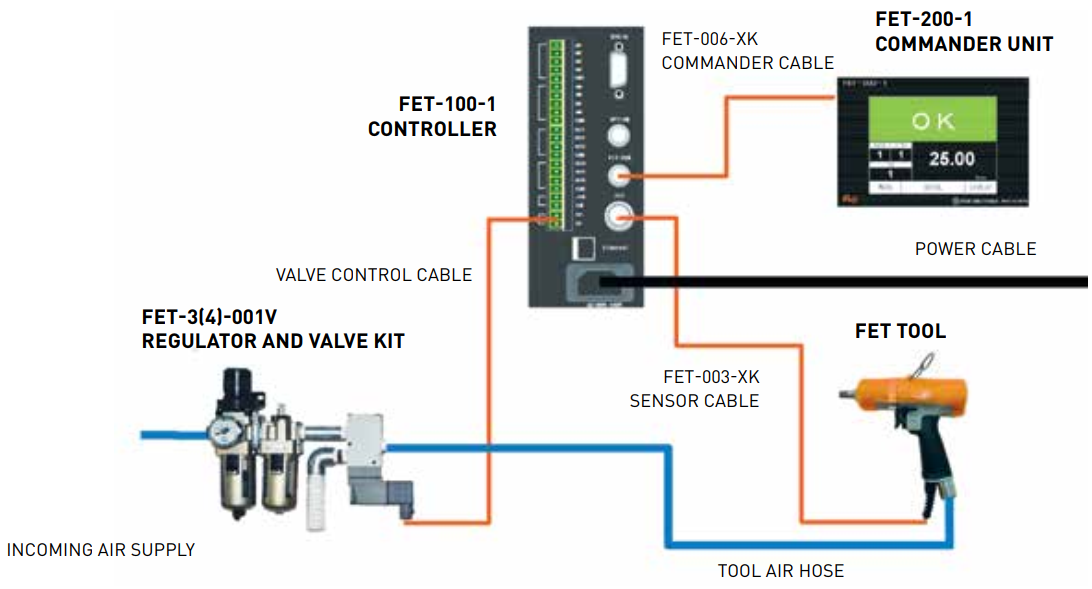

FET SERIES SYSTEM

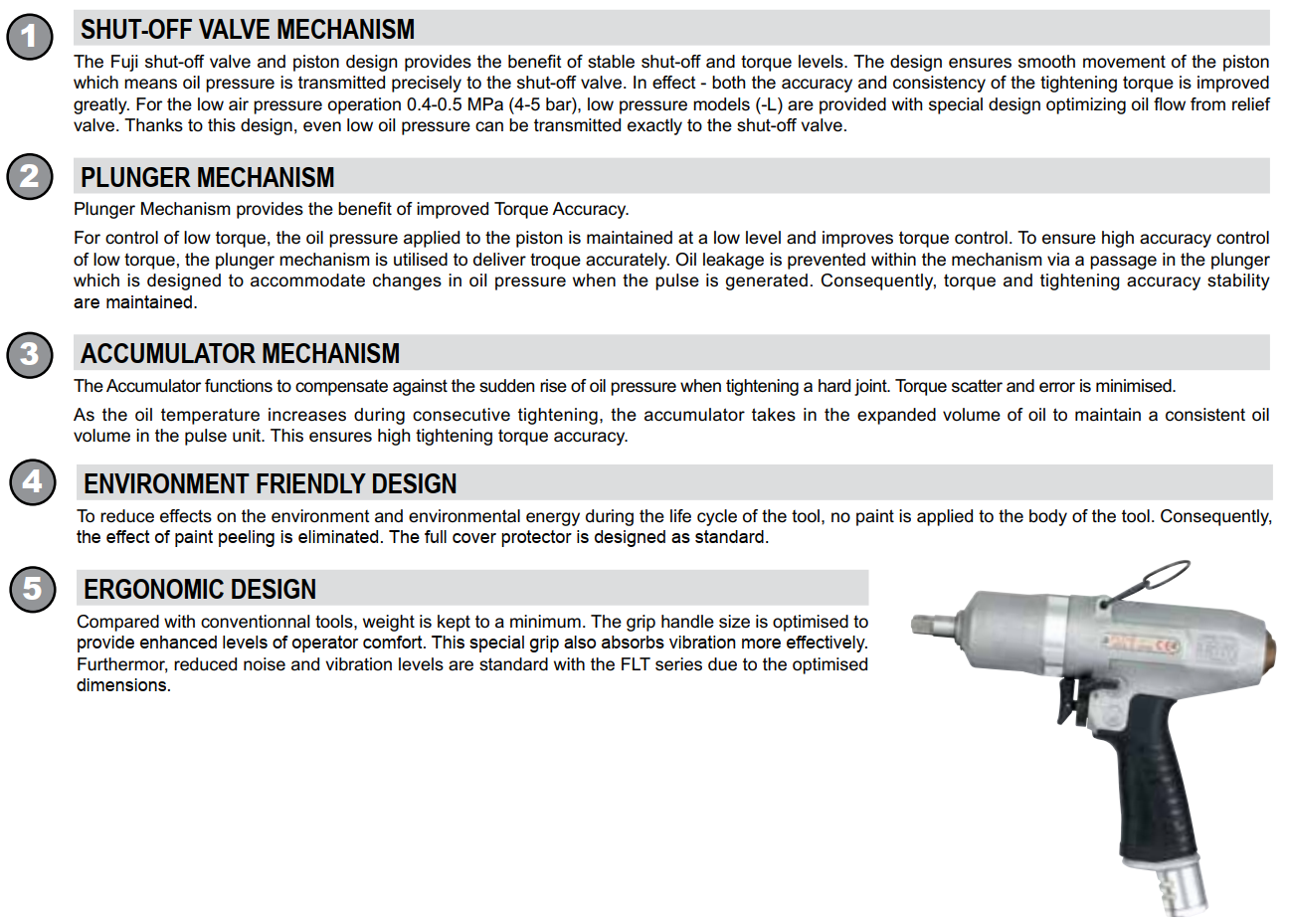

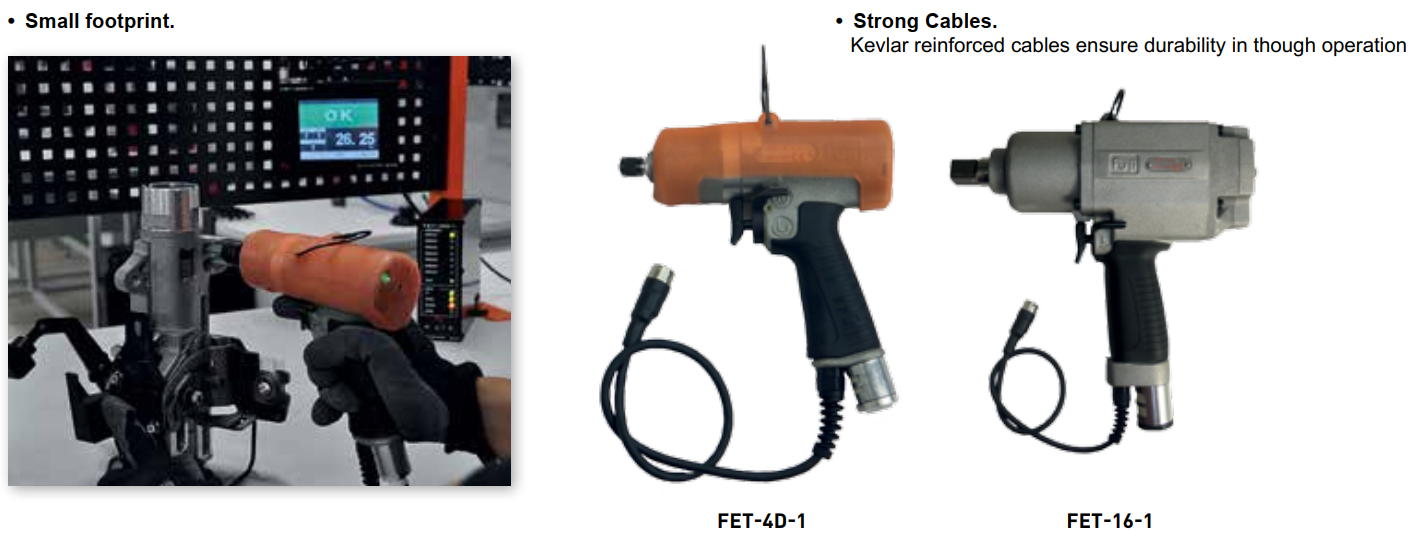

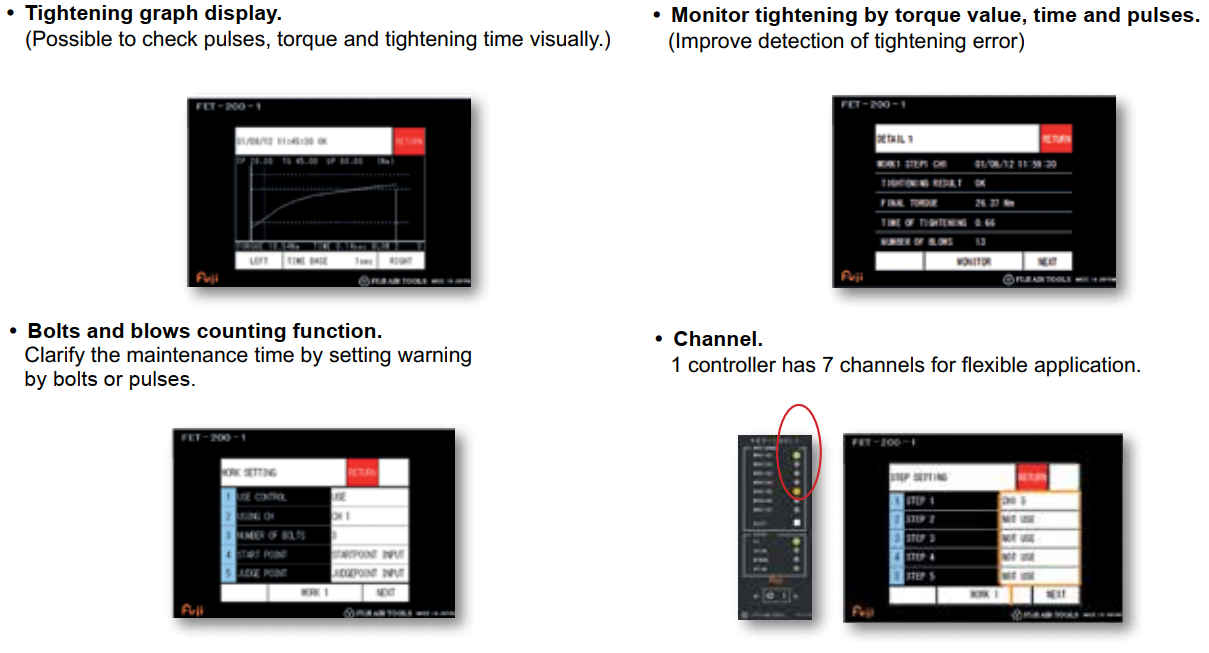

UNIQUE FEATURES OF FET SERIES




FET SERIES SYSTEM

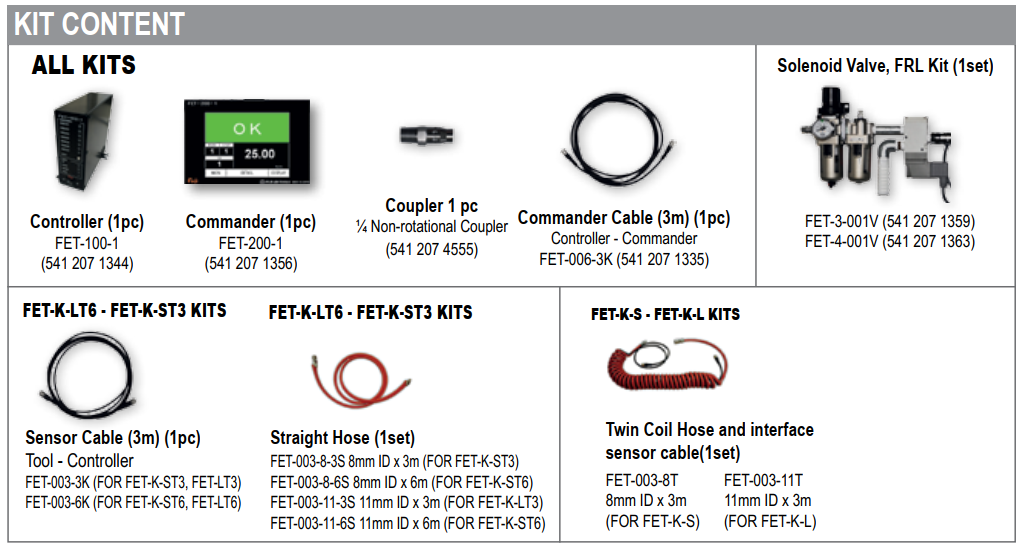

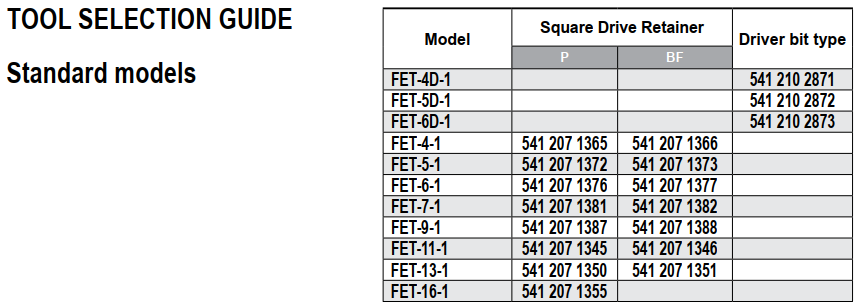

FET SERIES KIT

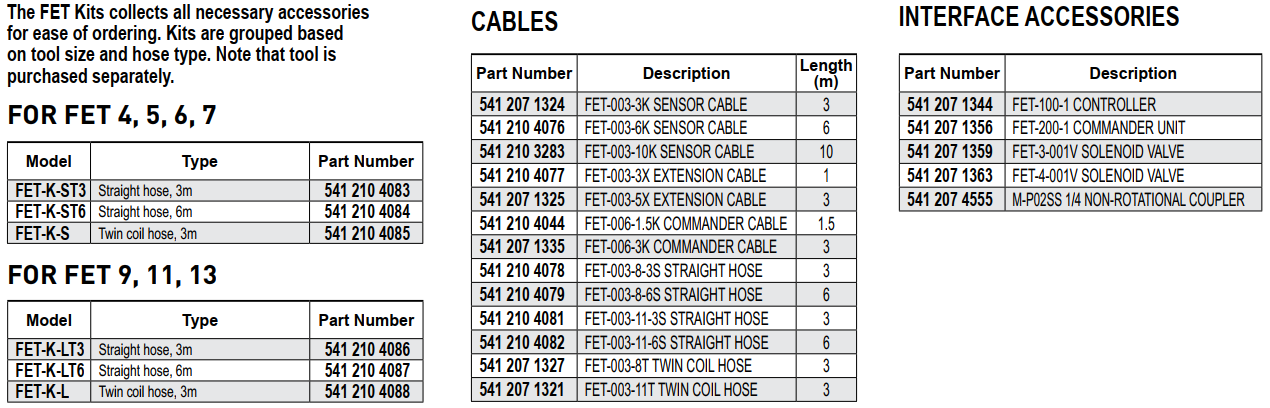

ACCESSORIES

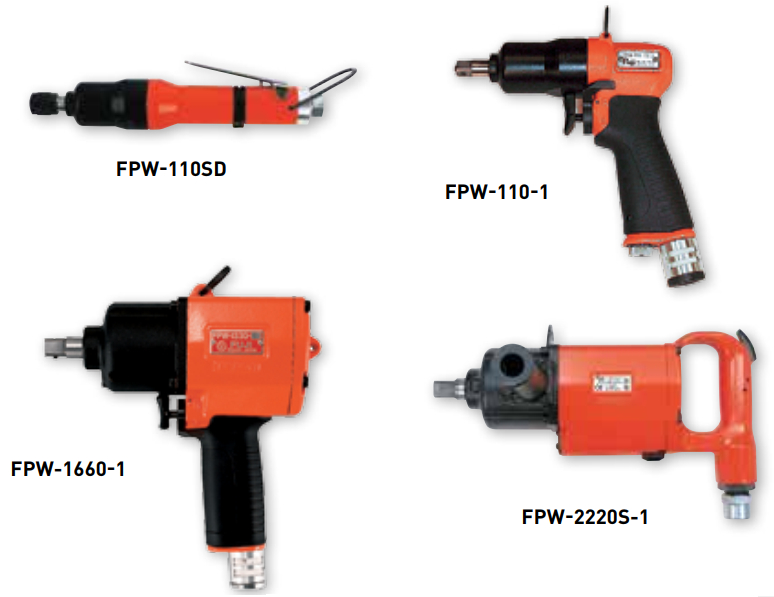

PULSE WRENCHES NON SHUT-OFF TYPE

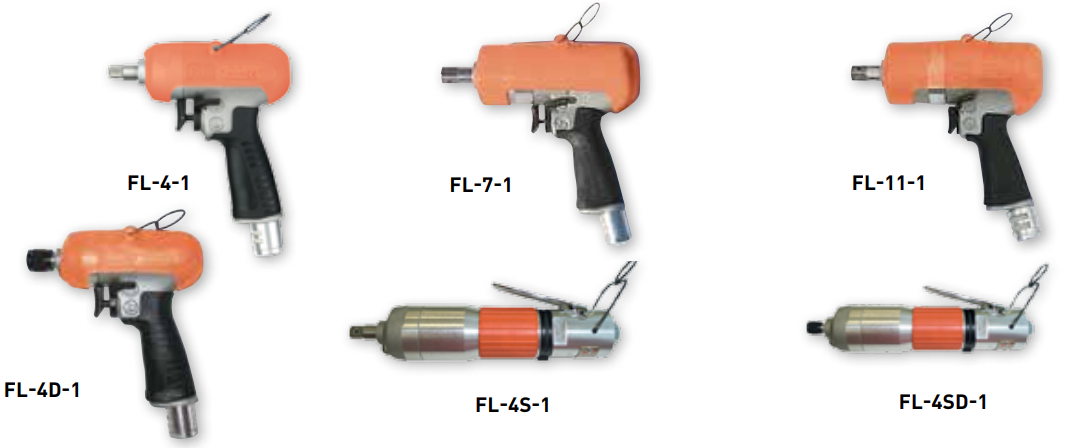

FL Series

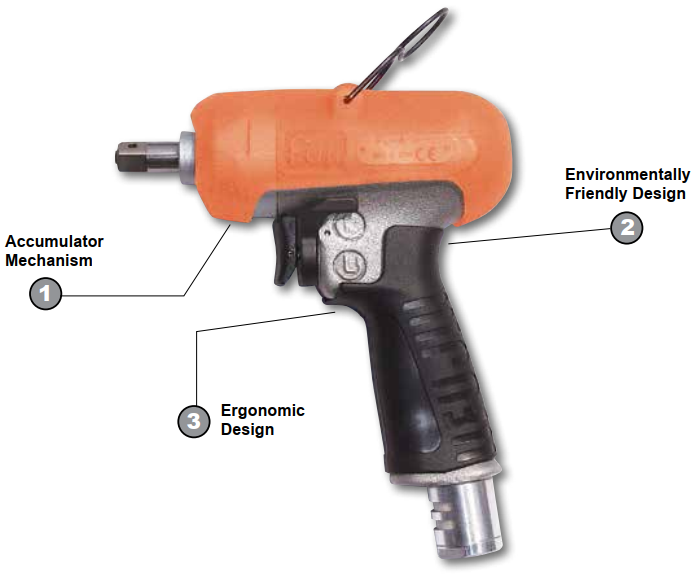

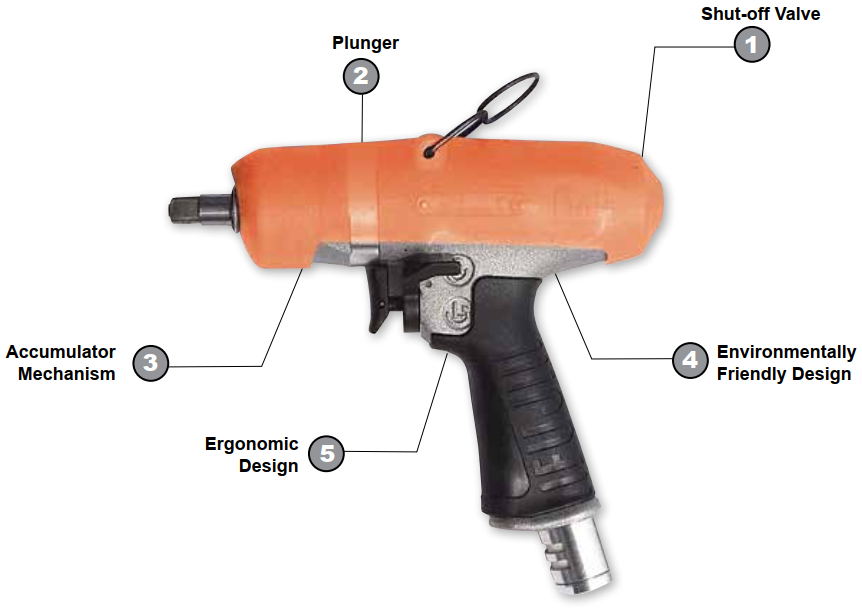

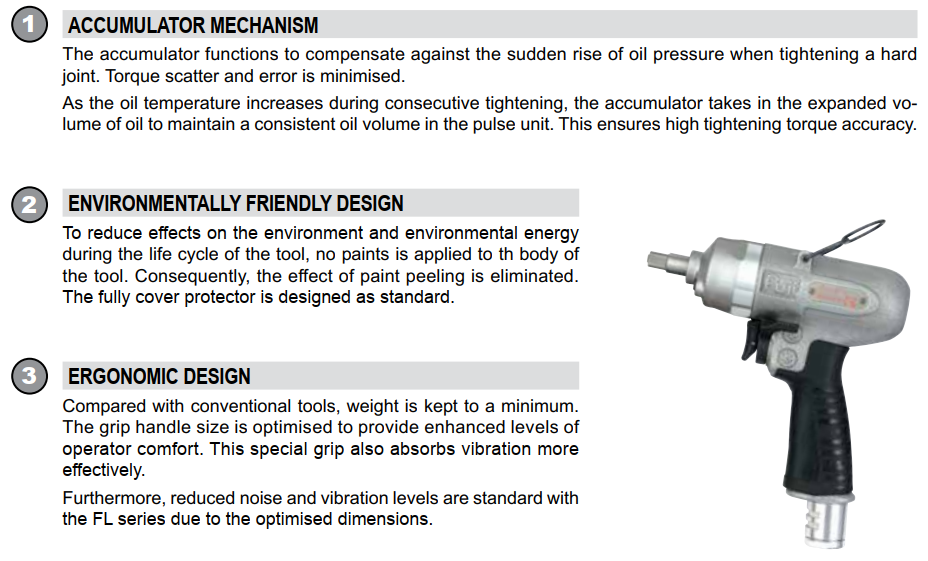

FEATURES

PULSE WRENCHES NON SHUT-OFF TYPE

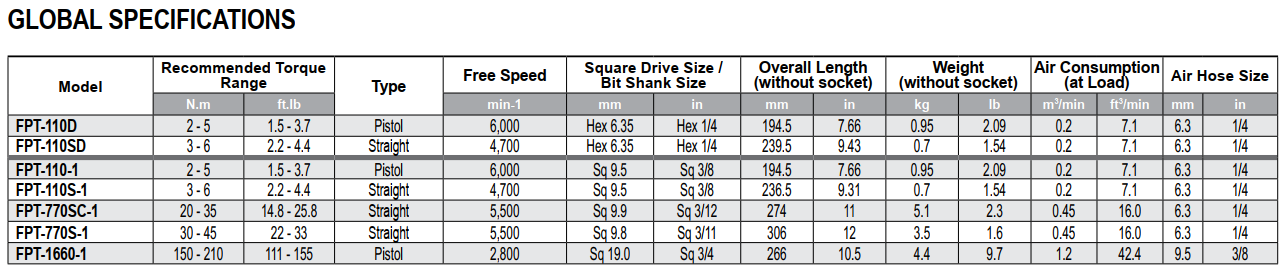

Recommended Torque Range, Max Torque
Shows recommended torque range or max torque of the model. Torque figures in the specifications must be used as guidance only, as final output depends on type and size of bolts and nuts, joint rate and air pressure etc.

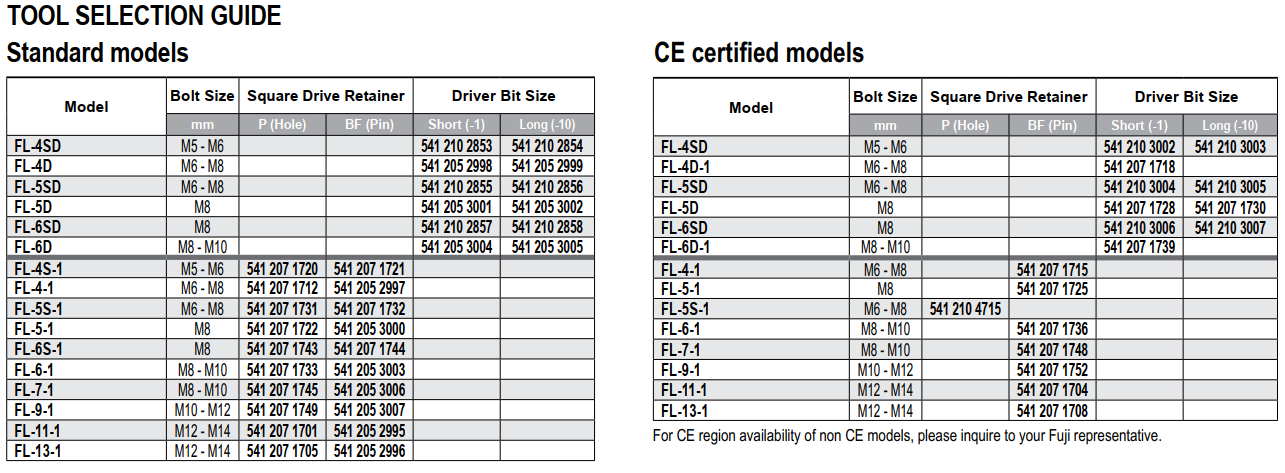

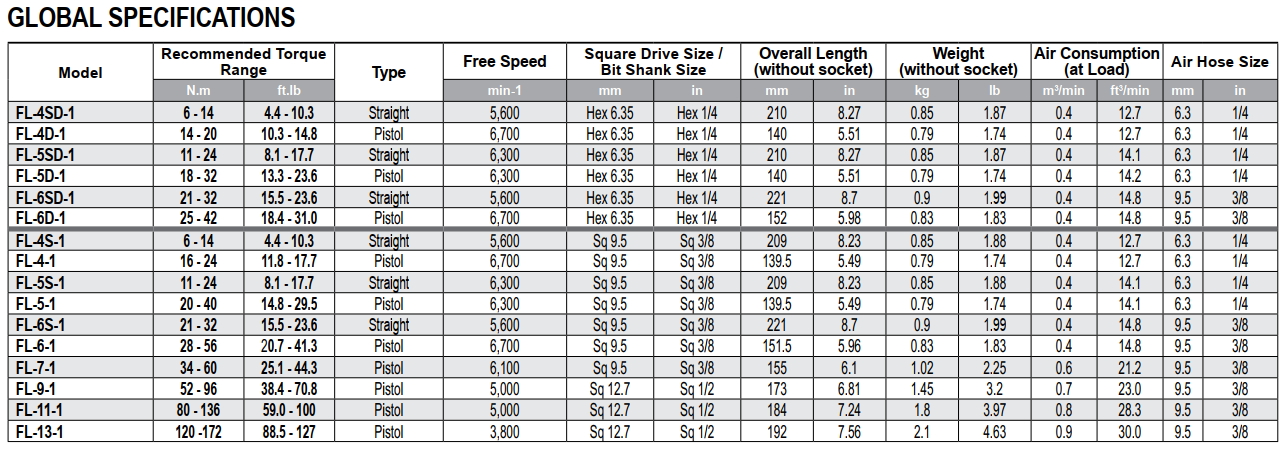

PISTOL AND STRAIGHT MODELS (SQUARE DRIVE - BIT SHANK) Sq. 6.35 mm (1/4") ~ 9.5 mm (3/8") ~ 12.7 mm (1/2")









PULSE WRENCHES NON SHUT-OFF TYPE

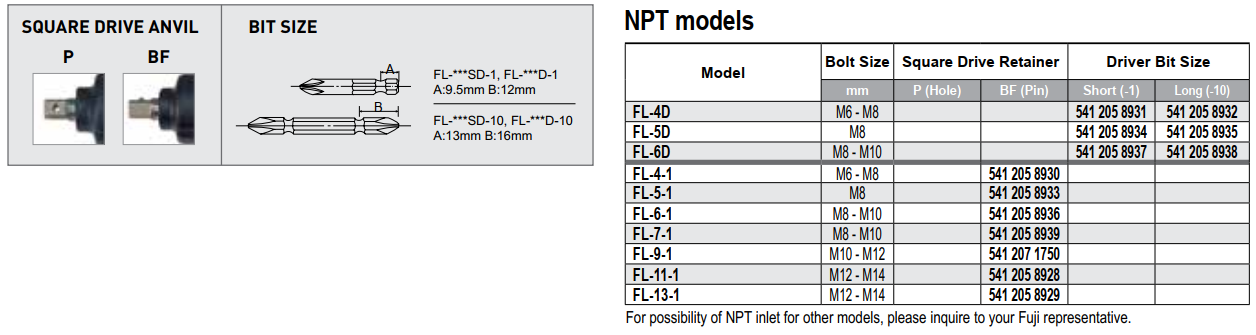

PISTOL GRIP & STRAIGHT MODELS (SQUARE DRIVE - BIT SHANK)



PULSE WRENCHES SHUT-OFF TYPE

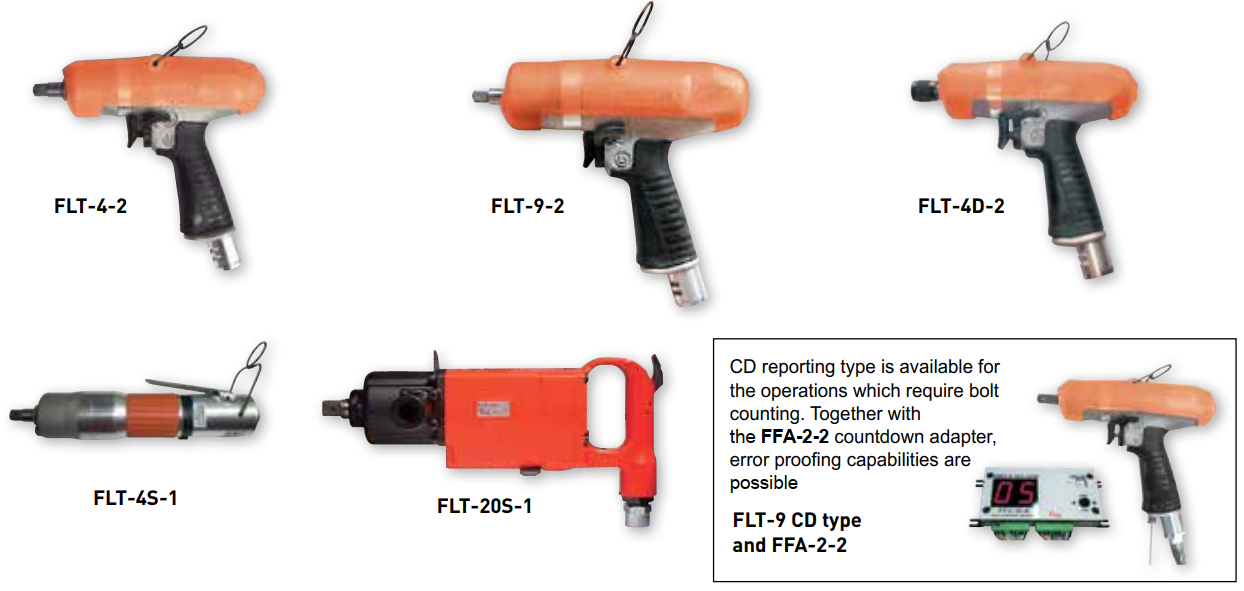

FLT Series

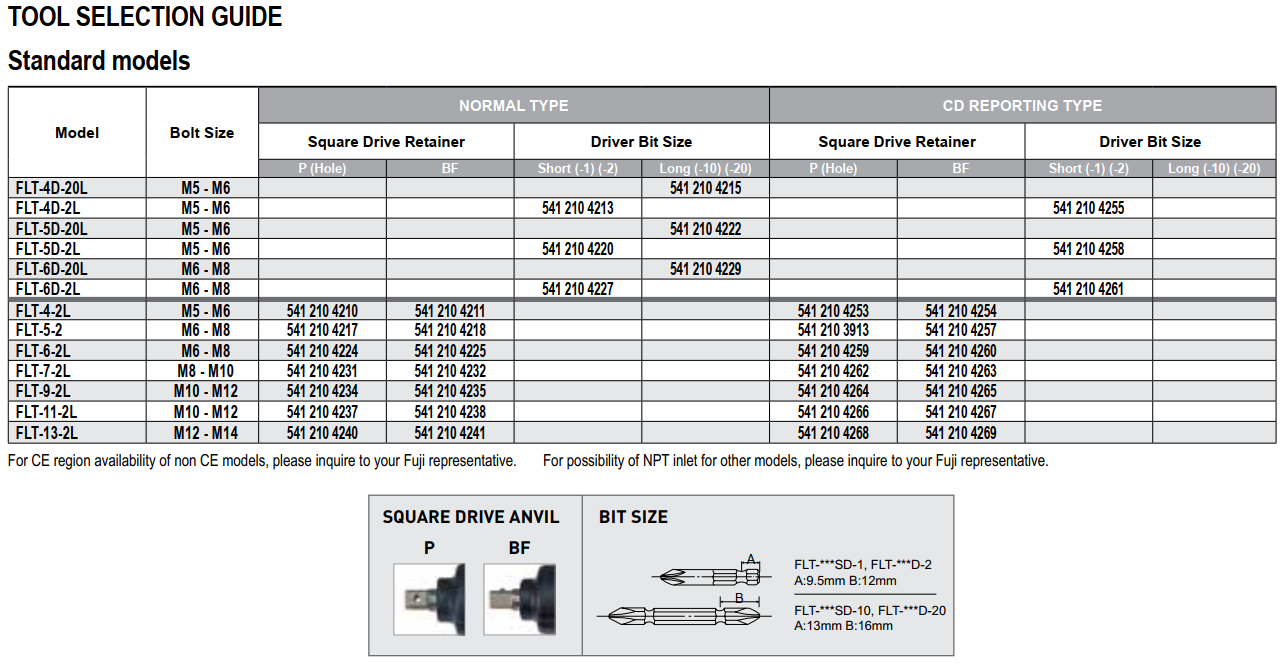

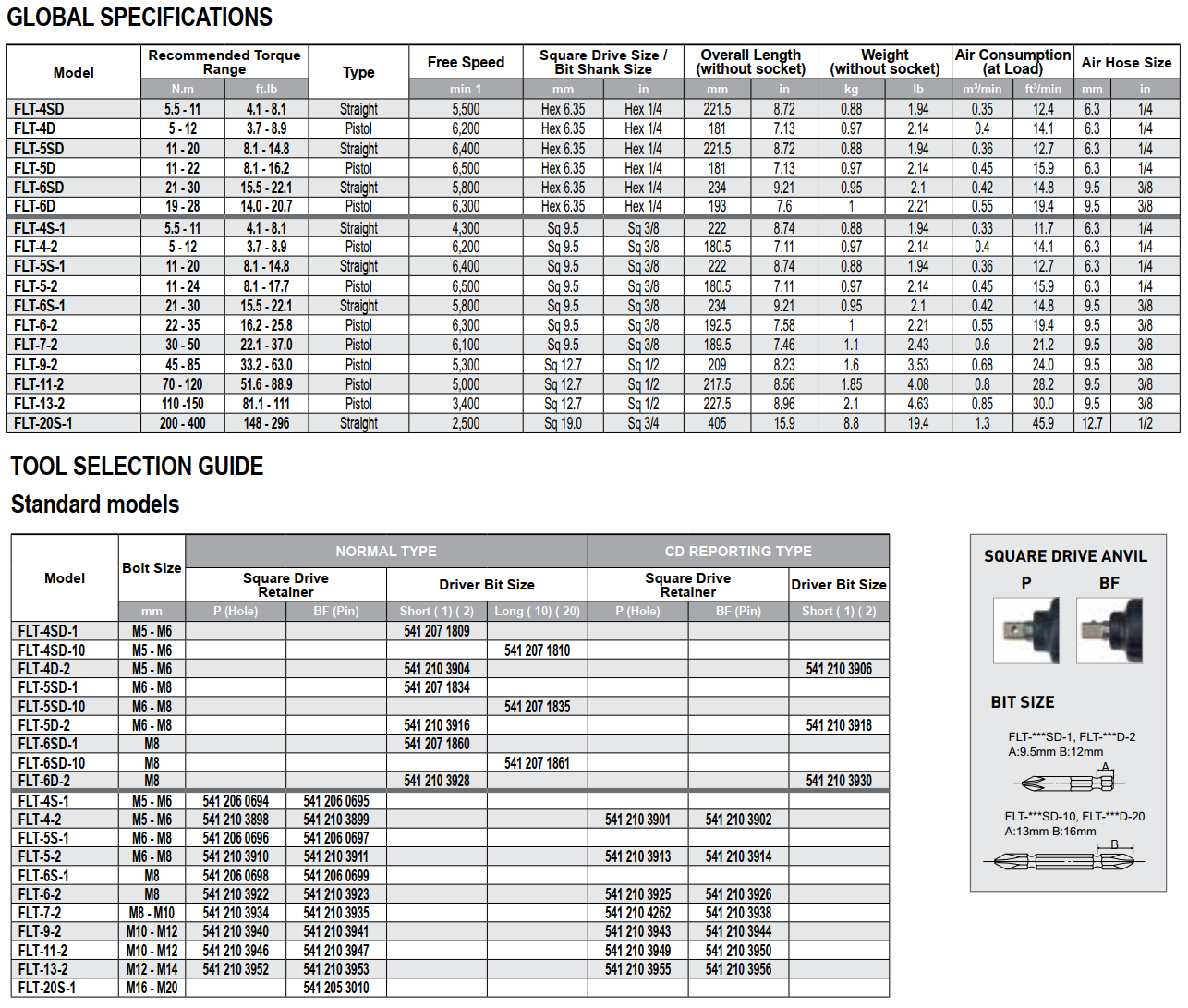

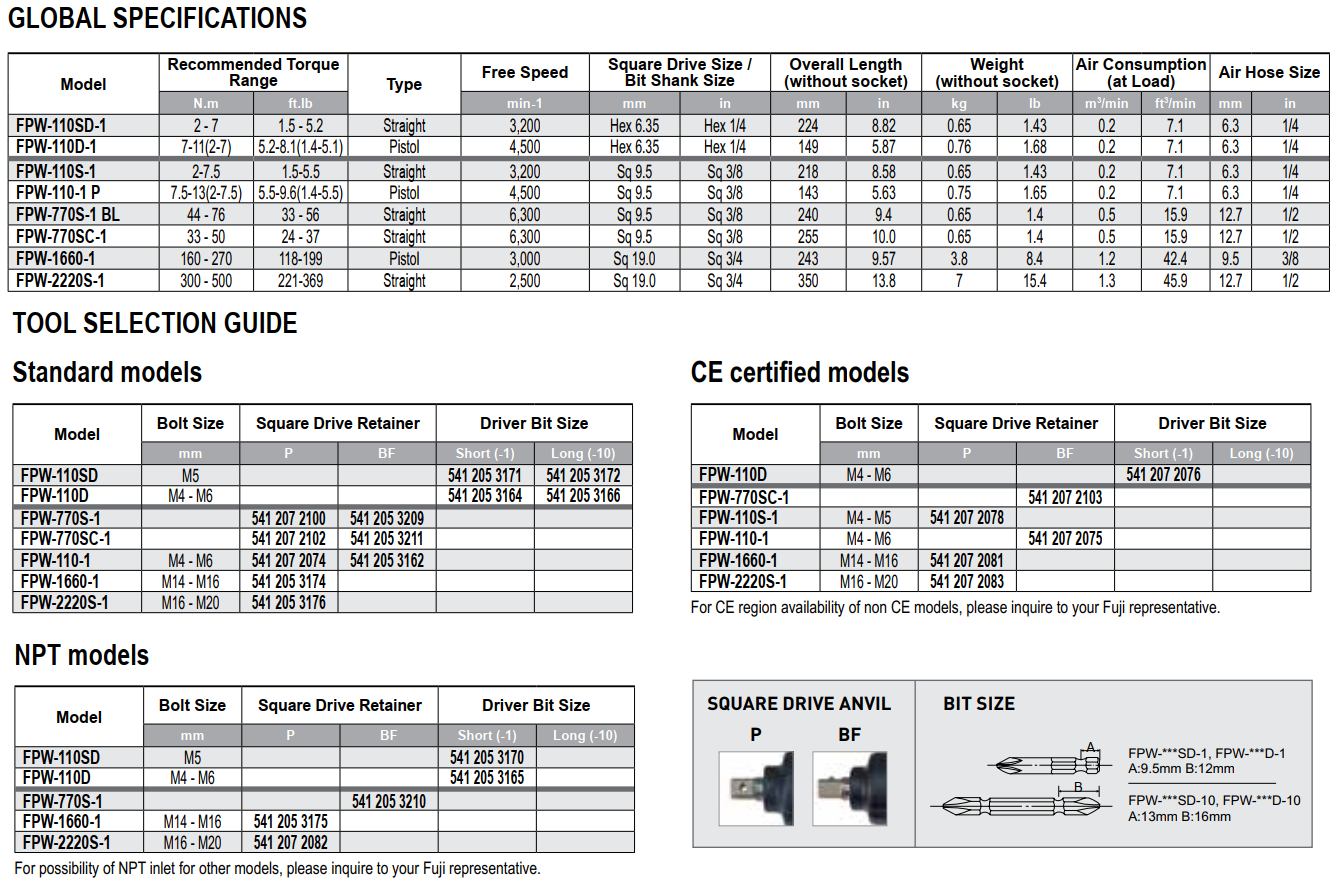

STANDARD MODELS (SQUARE DRIVE - BIT SHANK)     Sq. 9.5 mm (3/8") ~ 19 mm (3/4") - Hex. 6.35 (1/4")









For the low air pressure operation 0.4-0.5 MPa (4-5 bar), low pressure models (-L) are provided with special design optimi-zing oil flow from relief valve. This design enables acurate and consistent tightening.

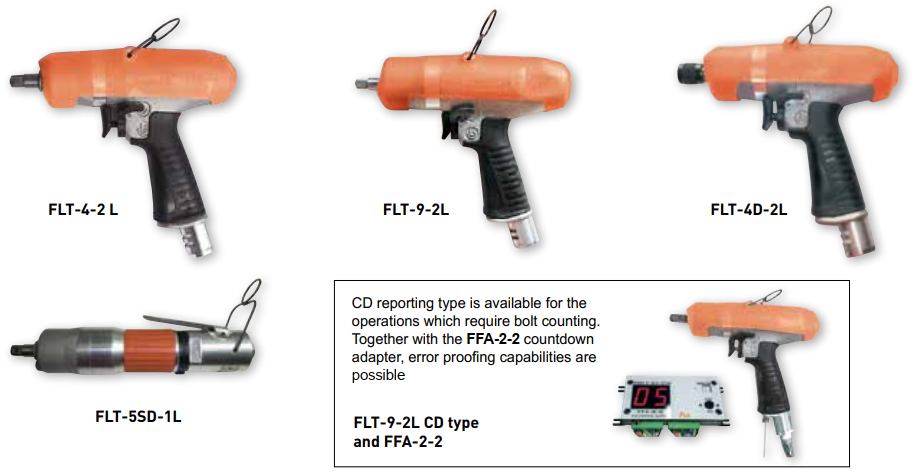

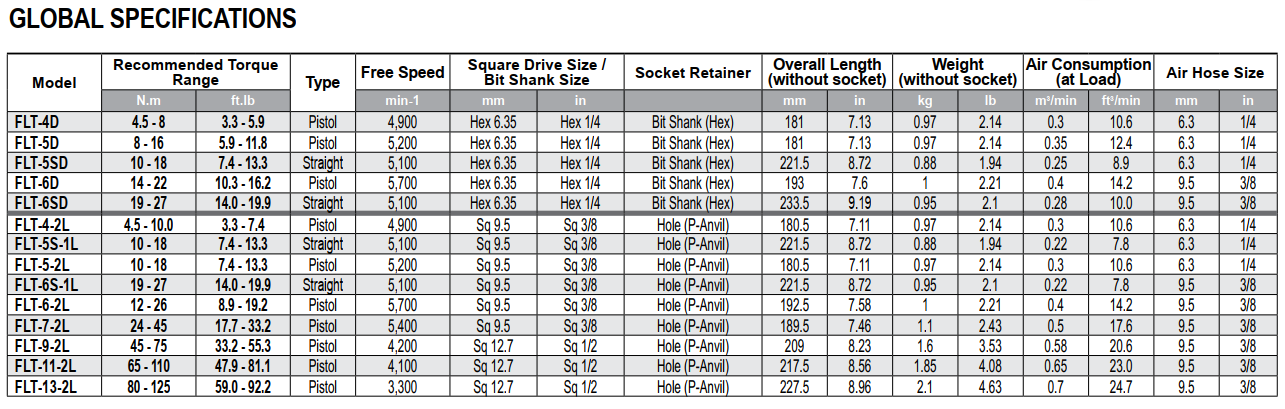

LOW PRESSURE MODELS

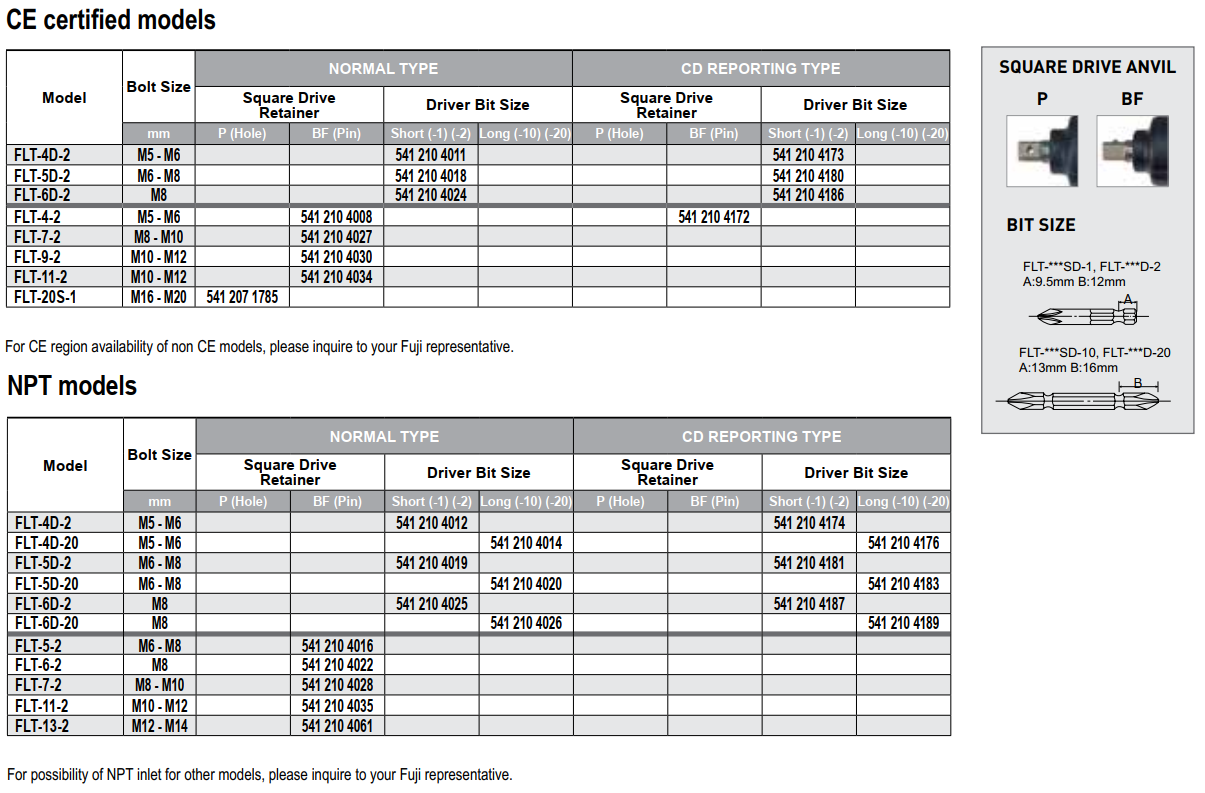

PISTOL GRIP & STRAIGHT MODELS (SQUARE DRIVE - BIT SHANK) Hex. 6.35 mm (1/4") ~ Sq. 9.5 mm (3/8") ~ 19 mm (3/4")









Photo Credit From Fujitools Japan
