Grinders

Grinders

PENCIL GRINDERS / TURBO GRINDERS

TURBO GRINDERS
Super high speed operation provides a more precise finish. Ø3mm or Ø1/8" and Ø6mm or Ø1/4" collet sizes are available to suit the application.

MAX. DIAMETER OF ABRASIVES
Please use correct diameter of mounted points and carbide burrs for the speed.

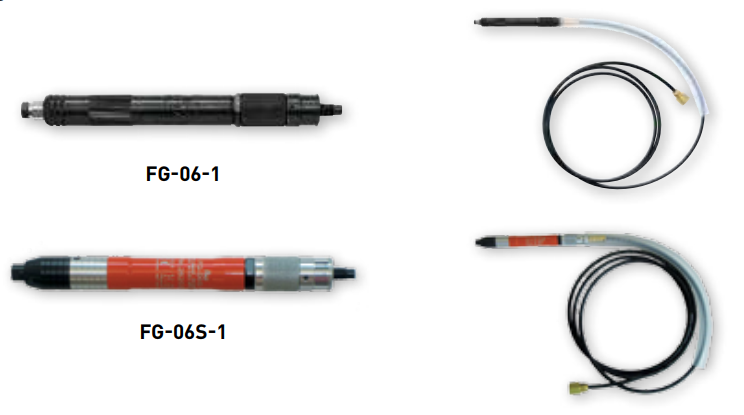

PENCIL GRINDER

Pencil Grinders are excellent tools for deburring, contouring and light grinding when used with a rotary burr. The small compact diameter, and light weight, aid precise application





DIE GRINDERS


FG-12U SERIES

FG-12U series are featured with an ergonomic spindle design supported by double bearings and connected to the motor spindle via a coupling. Together with this design 40,000rpm of speed provide the high accuracy and low vibration. Best tools for grinding with carbide burrs.

MAX. DIAMETER OF ABRASIVES Please use correct diameter of mounted points and carbide burrs for the speed.







FG-13 SERIES

FG-13 series feature compact and sturdy design with 30,000 rpm of speed. They are widely used for gringing and deburring with mounted points or carbide burrs.

MAX. DIAMETER OF ABRASIVES Please use correct diameter of mounted points and carbide burrs for the speed.









FG-26h SERIES

The FG-26H series features a high accuracy collet and spindle design to provide best in class run-out characteristics and low vibration, increasing life of abrasive. Suitable for both mounted point and carbide burr work. Extended models are also avai-lable for hard to reach applications

MAX. DIAMETER OF ABRASIVES Please use correct diameter of mounted points and car-bide burrs for the speed.








FG-50h SERIES








LOW SPEED GRINDERS

These powerful Grinders are designed with a gear reduction mechanism and speed control governor to maintain the power and rotational speed. Their light weight and compact design make them excellent for polishing, grinding, paint removal and can be used with non-woven cloth, brushes, flap wheels and buffs.

GRINDING WHEEL MODELS FOR TYPE 1





COLLET MODELS





STRAIGHT GRINDERS

All Fuji grinders are designed and produced using Fuji's latest grinder technology. Fuji straight grinders are equipped with centrifugal speed control governors, noise reducing design. These standard features assure high performance and smooth operation.





EXTENDED GRINDERS

GRINDING WHEEL MODELS FOR TYPE 1







ROLL THROTTLE MODELS FOR INNER GRINDING







ANGLE GRINDERS

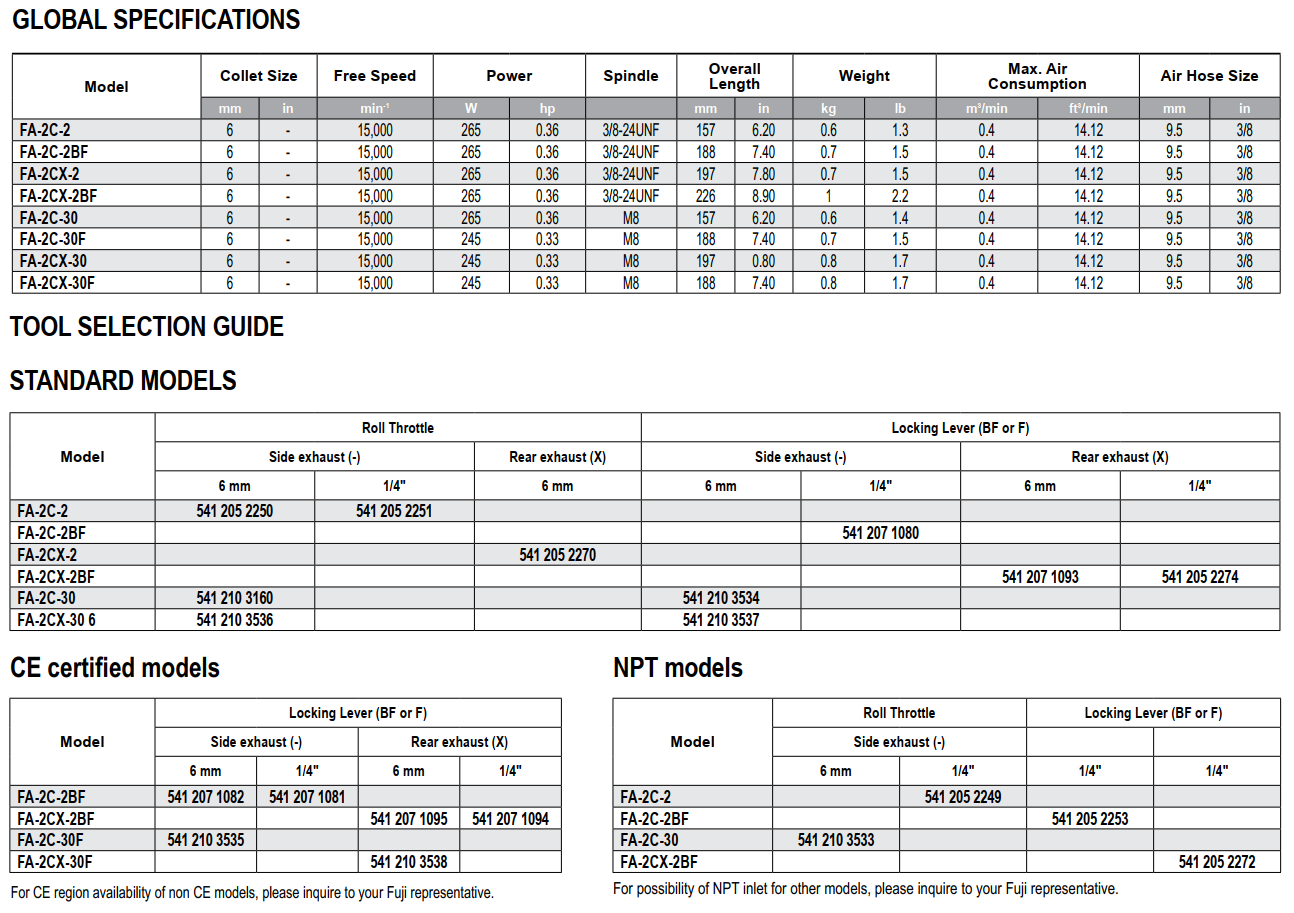

2" ANGLE GRINDERS COLLET MODELS

FA-2C series are featured with a compact body and sturdy structure. The series is a defact standard of small grinding. There are collet models FA-2C-2 & 30 and 2" grinding wheel models FA-2C-1

MAX. DIAMETER OF ABRASIVES Please use correct diameter of mounted points and carbide burrs for the speed











2" ANGLE GRINDERS - GRINDING WHEEL MODELS

MAX. DIAMETER OF GRINDING WHEELS - TYPE 27 Please use correct diameter of grinding wheels for the speed









4" ANGLE GRINDERS

There are three main ranges of 4" grinders, all designed for robustness and performance in demanding environments.
The FA-30 features a small form factor and low weight. A versatile grinder that is very efficient for hard to access applications or non-horizontal work.
The FA-4C is air efficient and a great choice where there are limitations to air supply. Suitable for a variety of applications. The FA-40 features high power and is especially suitable for though applications such as aluminum grinding but offers high re-moval rates over all areas.

Each series is avaialble in a variety of handle configurations. The FA-30 also has rear exhaust versions.

MAX. DIAMETER AND HOLE SIZE OF GRINDING WHEELS - TYPE 27  Please use correct diameter of grinding wheels for the speed. Also select the correct hole size.

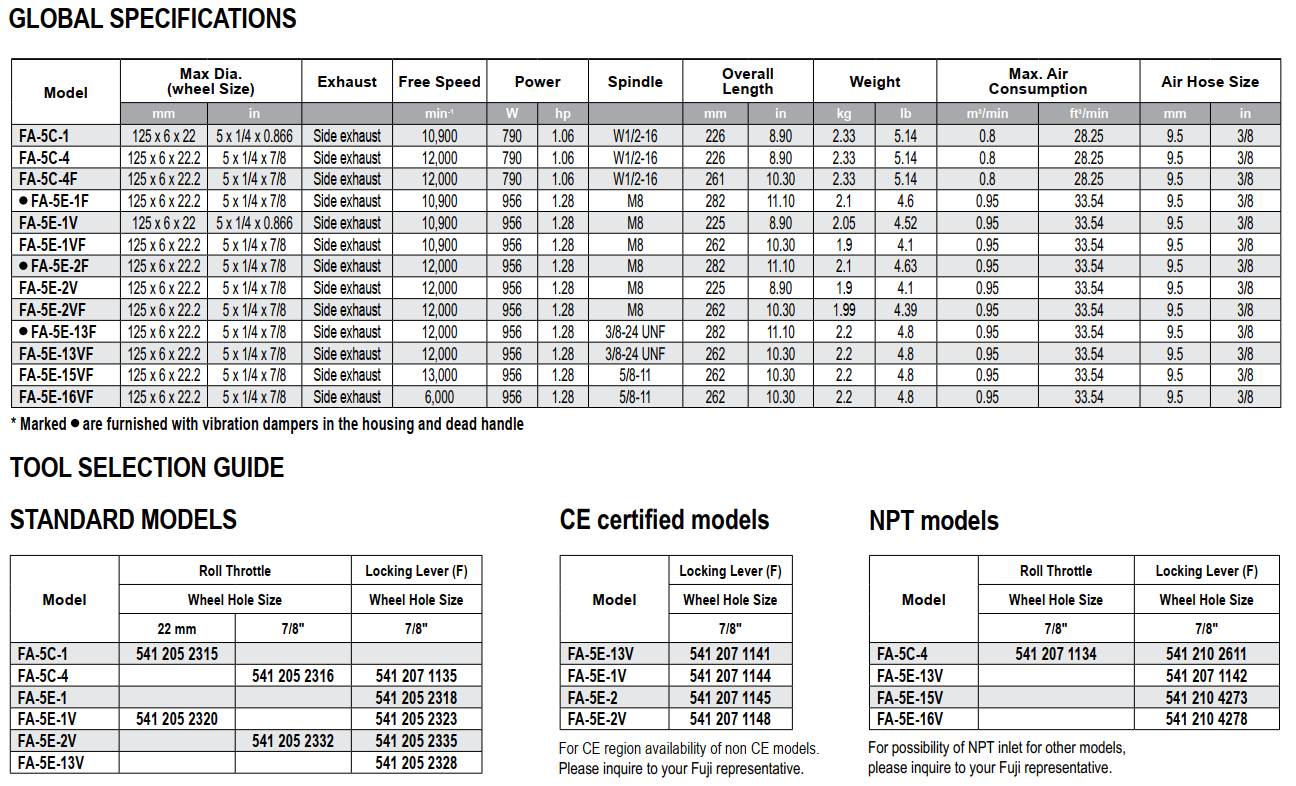

5" ANGLE GRINDERS

There are 2 ranges of 5" angle grinders, FA-5C (790W, 1.06hp) and FA-5E with higher power (956W, 1.28hp) and lower profile body. These models are available with variety of speed, spindle, and handle configurations.

MAX. DIAMETER AND HOLE SIZE OF GRINDING WHEELS - TYPE 27 Please use correct diameter of grinding wheels for the speed. Also select the correct hole size.

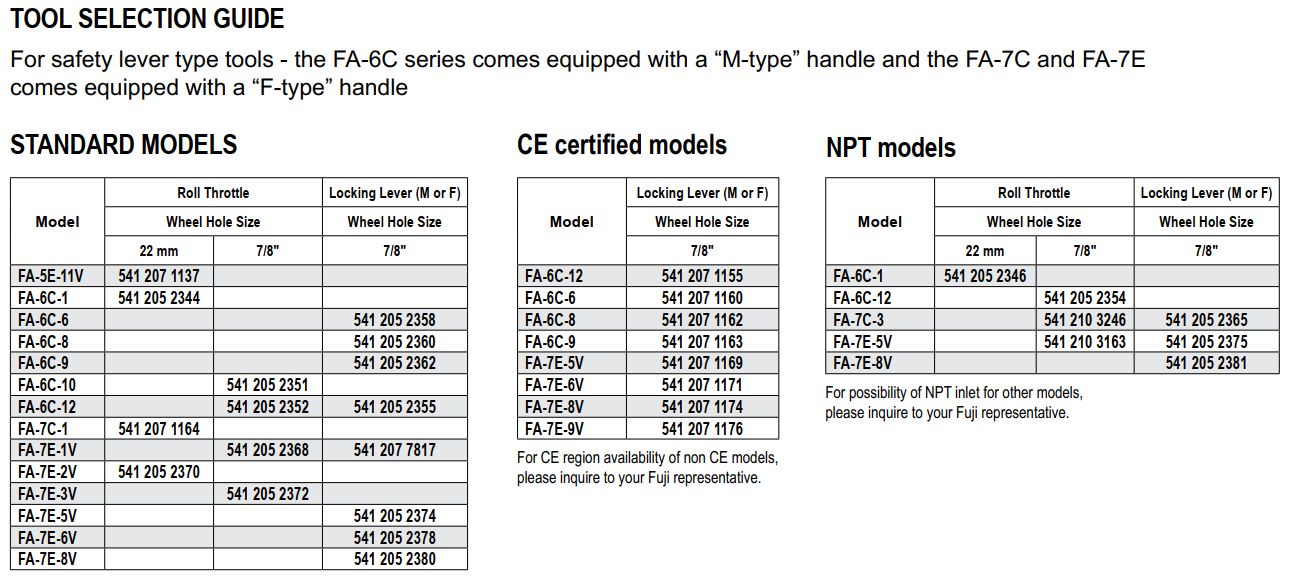

7" ANGLE GRINDERS

There are 3 ranges of 7" angle grinders, FA-7C with conventional specifications 1280W (1.72hp), and FA-7E with higher power 1500W, 2hp and lower profile body. FA-6C with conventional specification for compact 7" grinders

MAX. DIAMETER AND HOLE SIZE OF GRINDING WHEELS - TYPE 27  Please use correct diameter of grinding wheels for the speed. Also select the correct hole size.

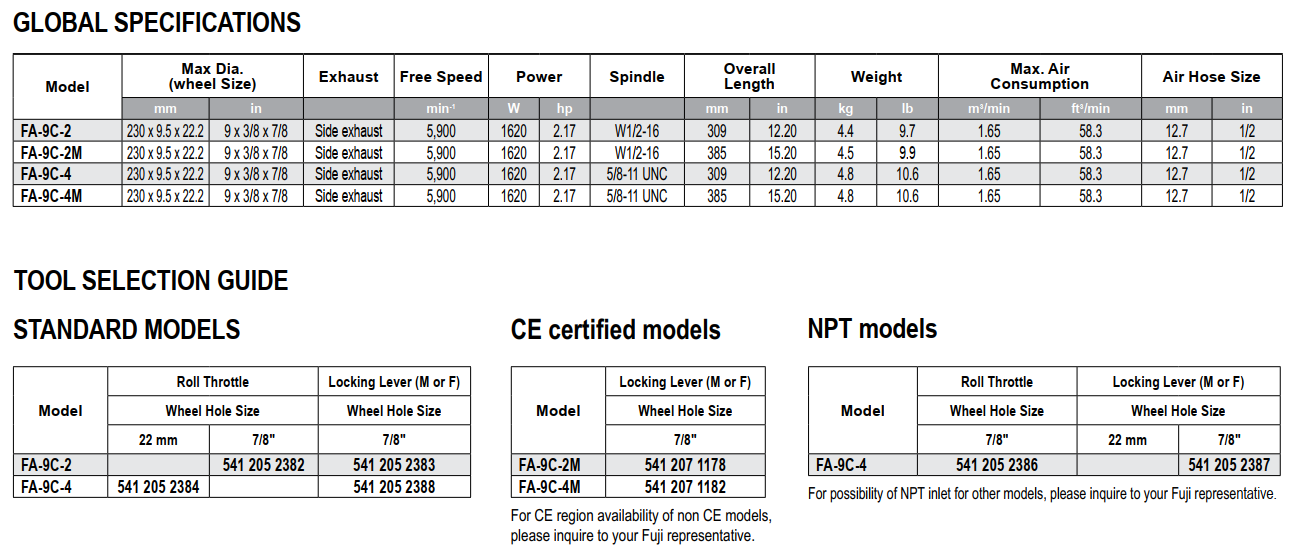

9" ANGLE GRINDERS

MAX. DIAMETER AND HOLE SIZE OF GRINDING WHEELS - TYPE 27 Please use correct diameter of grinding wheels for the speed.








OTHER SIZE - GRINDING WHEELS OR CUTTING DISK







VERTICAL GRINDERS - VERTICAL SANDERS

VERTICAL GRINDERS STANDARD TYPE




VERTICAL GRINDERS CUP WHEEL TYPE



SANDING DISC TYPE


Photo Credit From Fujitools Japan
