Percussive Tools

Percussive Tools

PERCUSSIVE TOOLS FEATURES

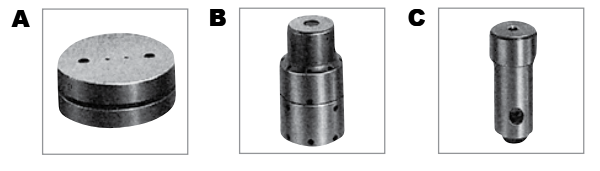

VALVE MECHANISM
Equipped with following valve mechanism, Fuji Percussion Tools have trouble-free long life.
A. PLATE VALVE
Plate valve consists of four parts of valve sheet, valve cover, valve case and valve. This simple mechanism and plate valve surface provide longer durability.

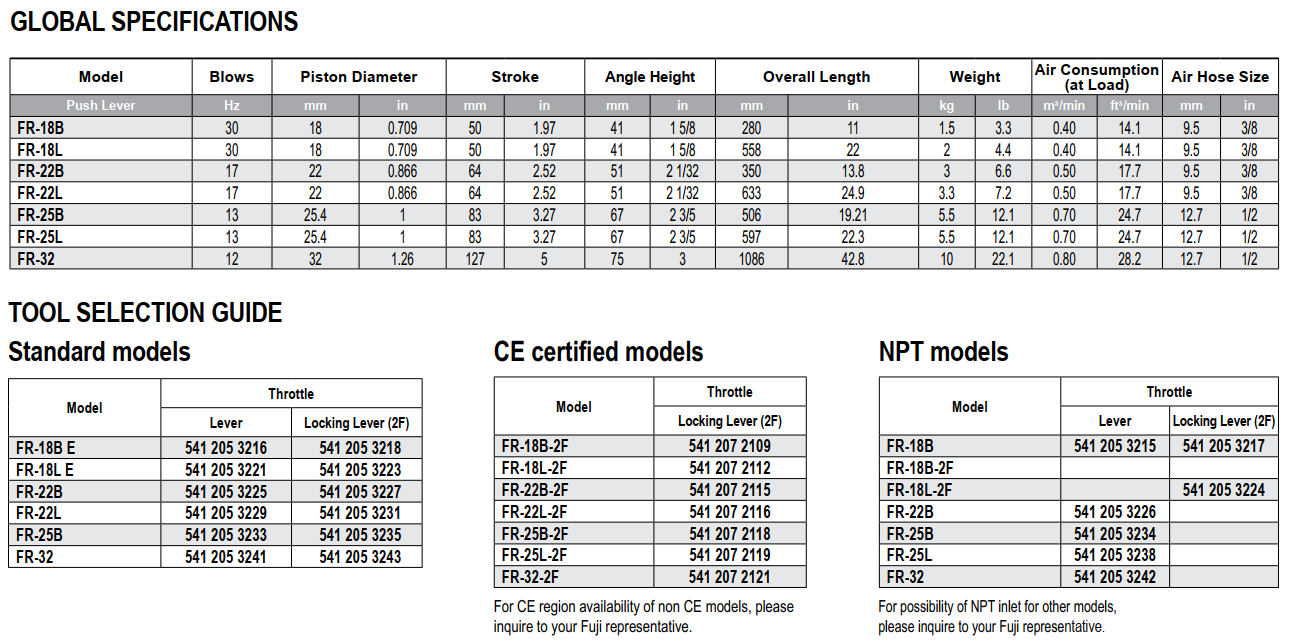

FR Series
B. SLEEVE VALVE
Hollow valve enables a light and compact body and longer strokefor its size.
C. PISTON VALVE
High blow frequency (60Hz to 90Hz) can be maintained as this piston functions as a valve providing high working efficiency.


LOW AIR CONSUMPTION
Low air consumption 0.14-0.18 m3/min

(due to the valve mechanism) enables Fuji Percussion Tools to be used with a smaller compressor.


QUICK CHANGE ATTACHMENTS FOR PERCUSSIVE TOOLS
Attachment, such as chisels and needles, can be quickly and easily changed.


MULTI-NEEDLES
Fuji Needle Scalers utilise multiple needles that do not contaminate the workpiece.


PLASTIC HANDLE COVER
The plastic handle cover reduces the effect of vibration and provides an insulated grip for the operator.

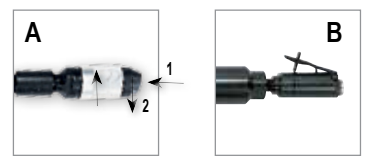

LOCKING HANDLE
The locking handle are designed to reduce the risk of acci-dental starting of the tools. The handle is automatically locked when the operator releases the handle.

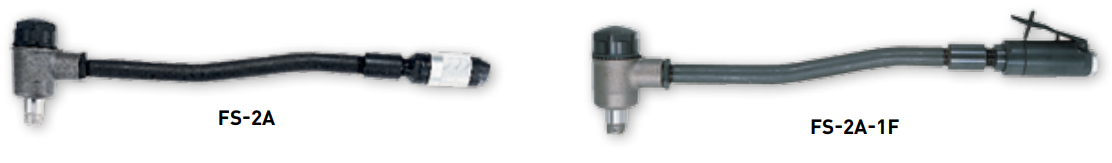

A. Locking Roll Handle : FS-2A
B. Locking Locking Lever Handle : FS, FR, FCH, FNS Series



LOW BLOW FREQUENCY
The built-in Sleeve Valve allows the operator to adjust the blow frequency by adjusting the throttle valve.

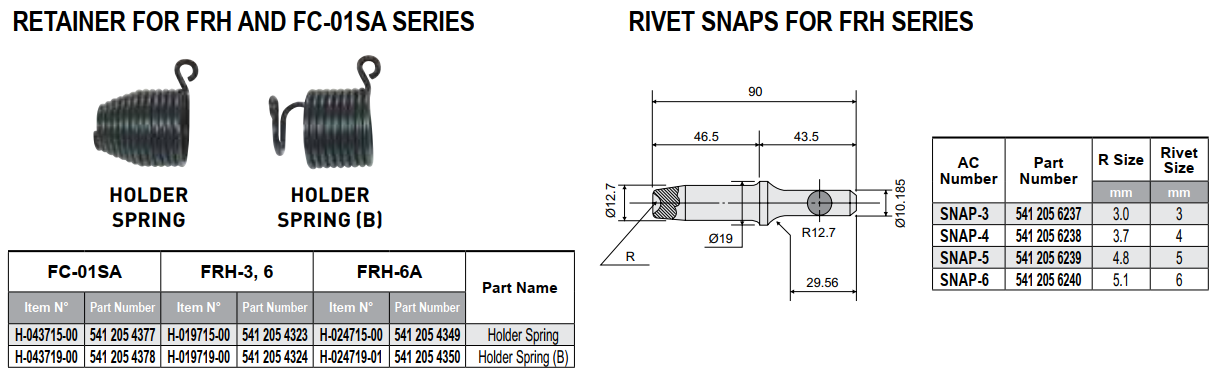

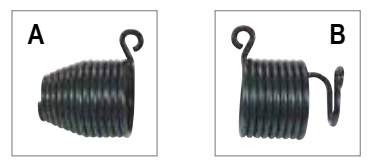

CHISEL RETAINER
A. Holder Spring (Bee-Hive Retainer)
B. Holder Spring (B) (Quick Change Retainer)

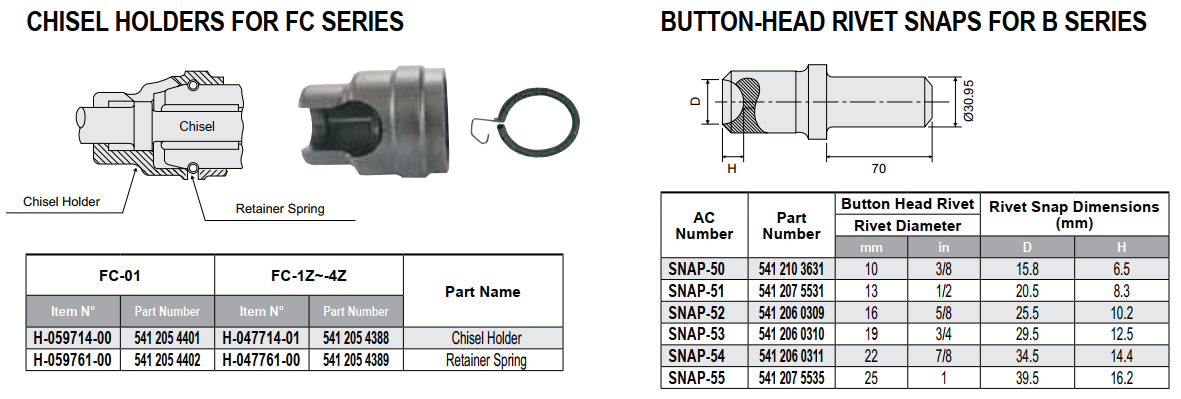

CHISEL HOLDER
Fuji Chipping and Calking Hammers are supplied with a chisel retainer as standard. This reduces the risk of the chisel releasing during operation.



PERCUSSIVE TOOLS

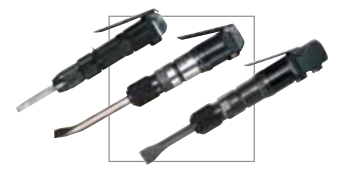

Fuji offers 3 variants of flux chippers with different removal rates.
They are ideal for various removal operations; light chipping, carving stone, scaling, removing paint, rust, weld flux and light fins from castings. FCH-25B offers a "blow" function which is ideal for blowing particles away from the work piece.

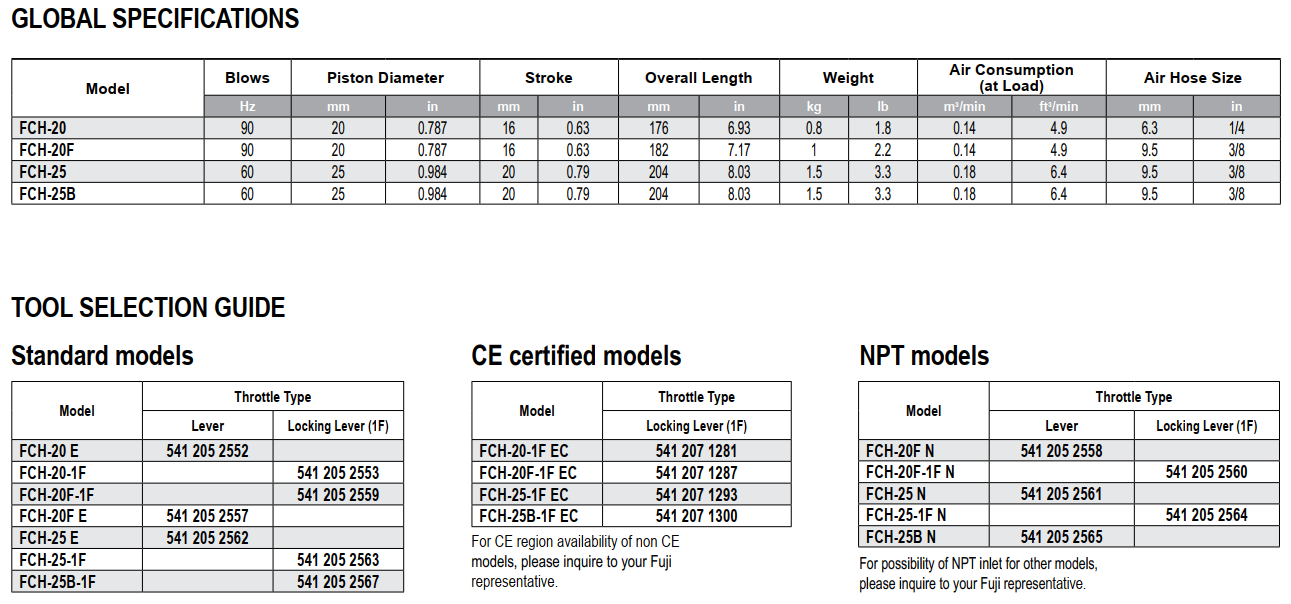

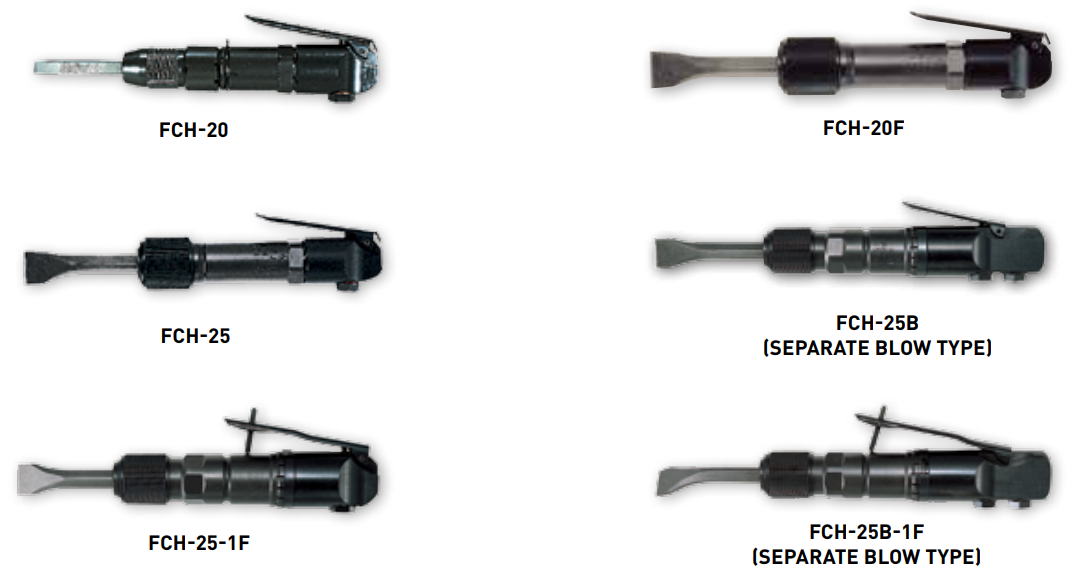

FLUX CHIPPERS

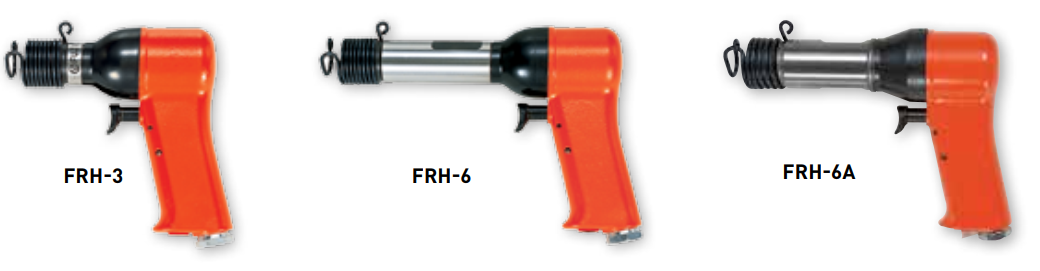

LIGHT HAMMERS
Fuji light hammers provide a controllable impact for rivetting to reduce the effect of work hardening of the rivet or damage to the surrounding metal. These tools are easily adapted to perform other operations, such as cutting, ripping, shearing, punching and gouging with suitable chisels fitted.

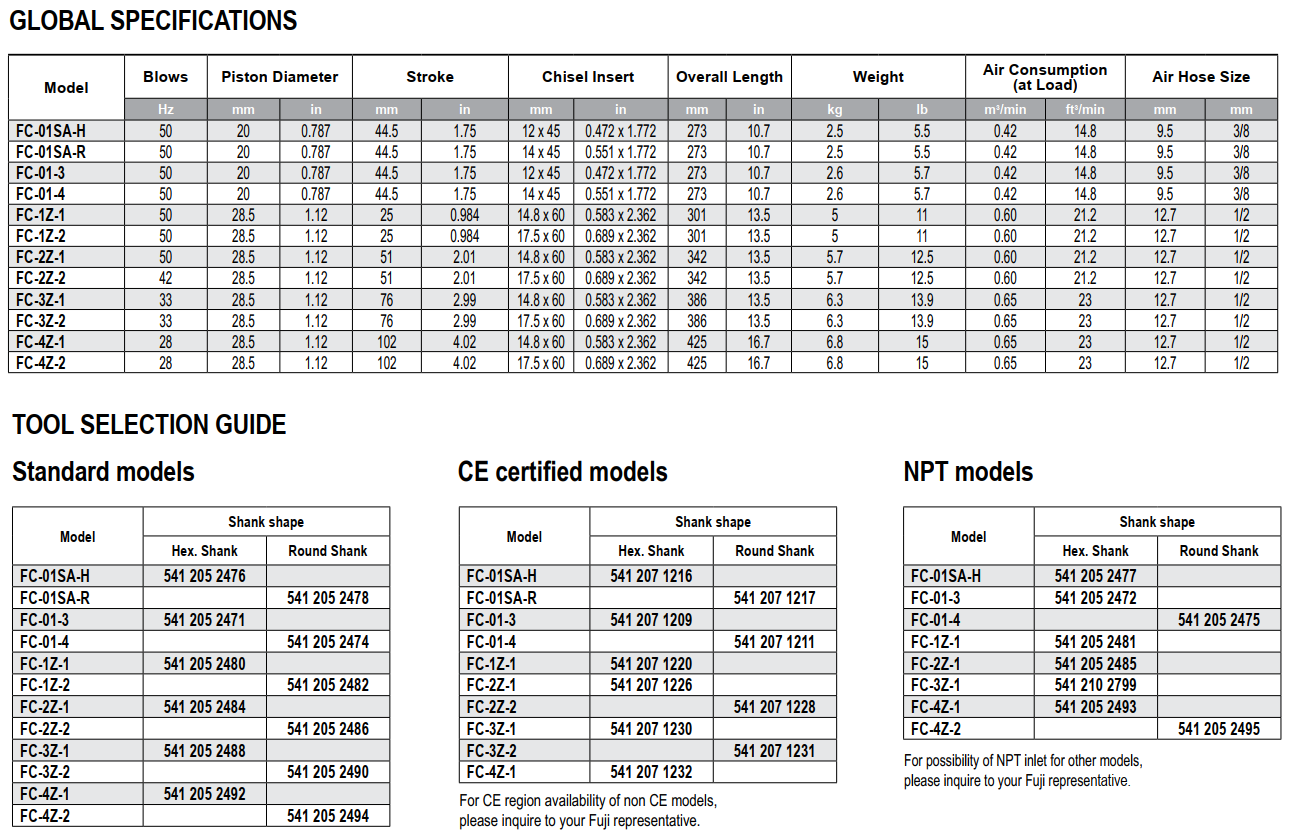

CHIPPING & CALKING HAMMERS
Fuji chipping and calking hammers are durable. They are excellent for concrete, stone, weld flux removal.

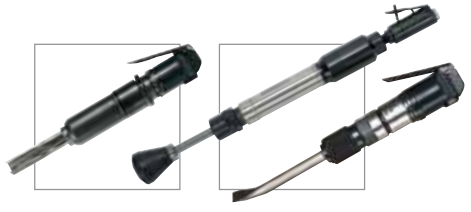

NEEDLE SCALERS
Fuji needle scalers are useful for removing weld flux, sand from castings, scales from forgings, rust, paint, scales from ship hulls and finishing rough surfaces of rock or concrete. Fuji needle scalers feature a unique valve less design and work well on uneven or irregular surfaces.




SCALING HAMMERS
These tools have proven to be very efficient in cleaning heavily oxidized surfaces which occur on ships' hulls, bridges and storage tanks.

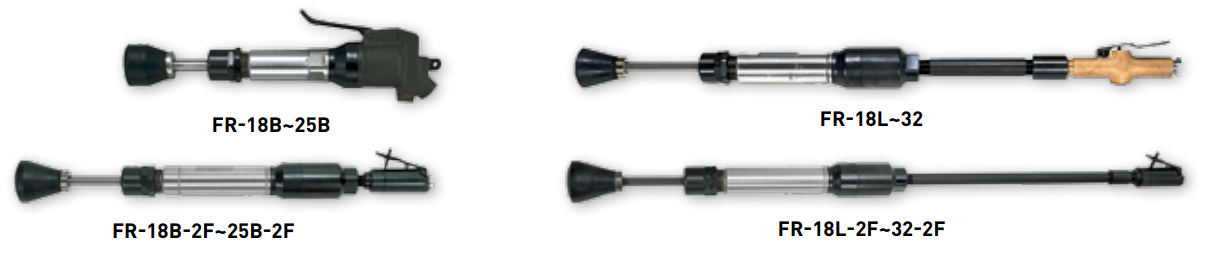

SAND RAMMERS
Fuji sand rammers are powerful but light with a stroke range from 50mm to 127mm. Fuji sand rammers are excellent for ramming sand for casting in any ferrous or non-ferrous foundry. Non-rotary type rammers are available for use with irregular shaped butts.

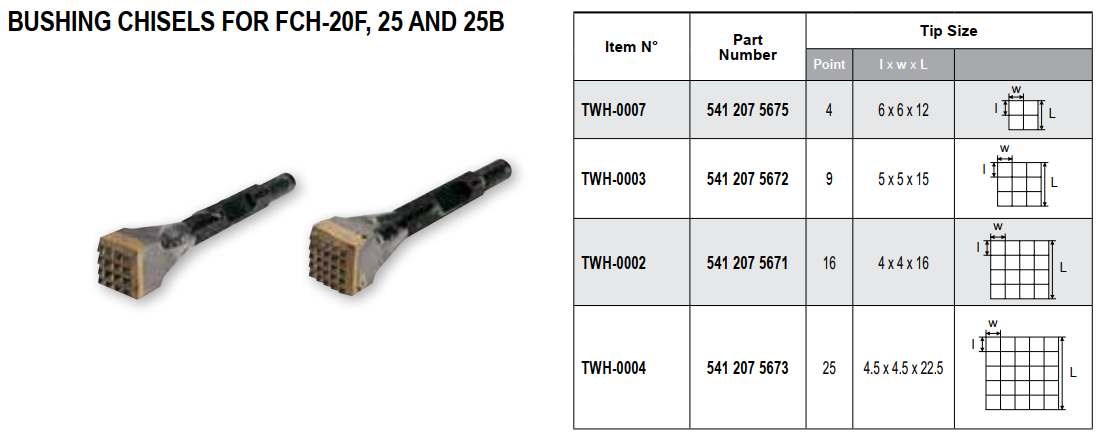

ACCESSORIES

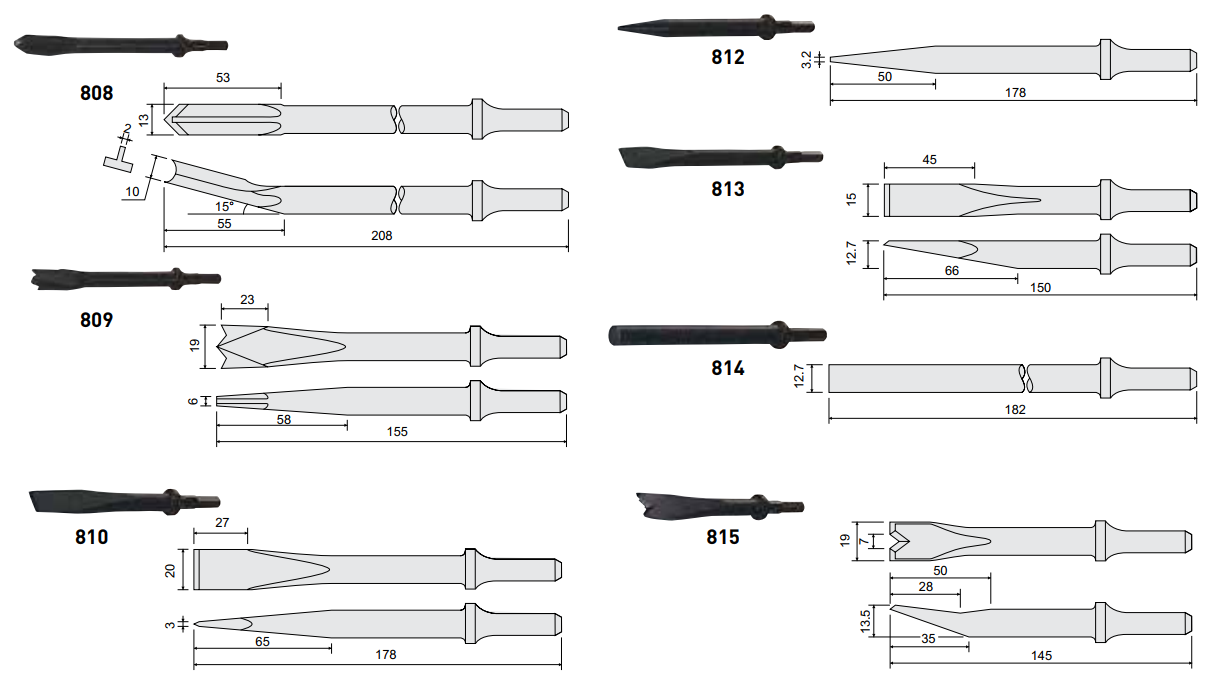

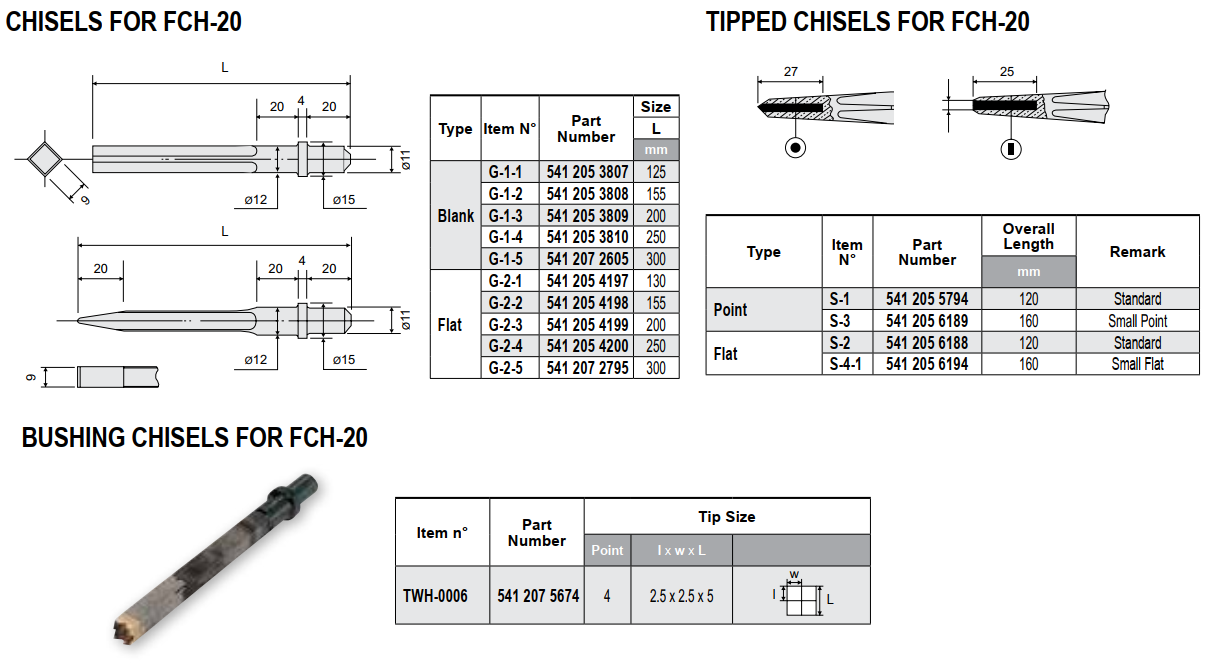

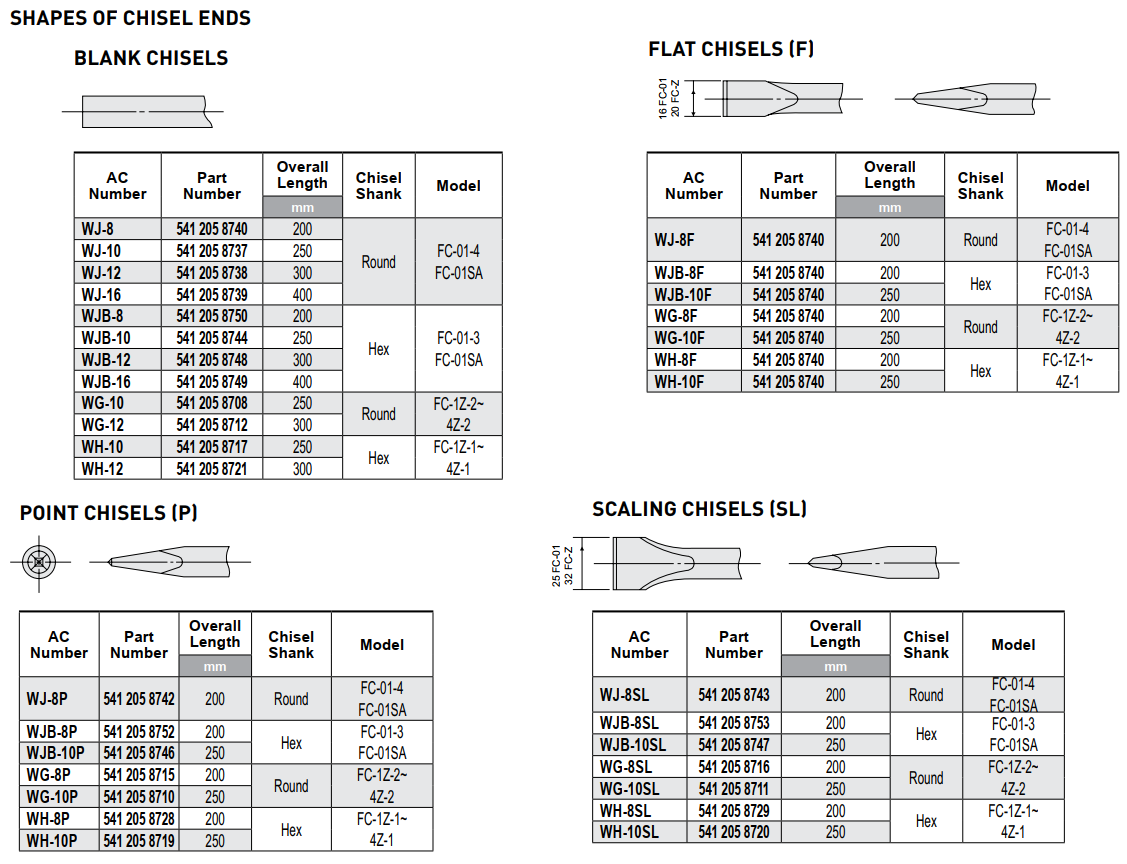

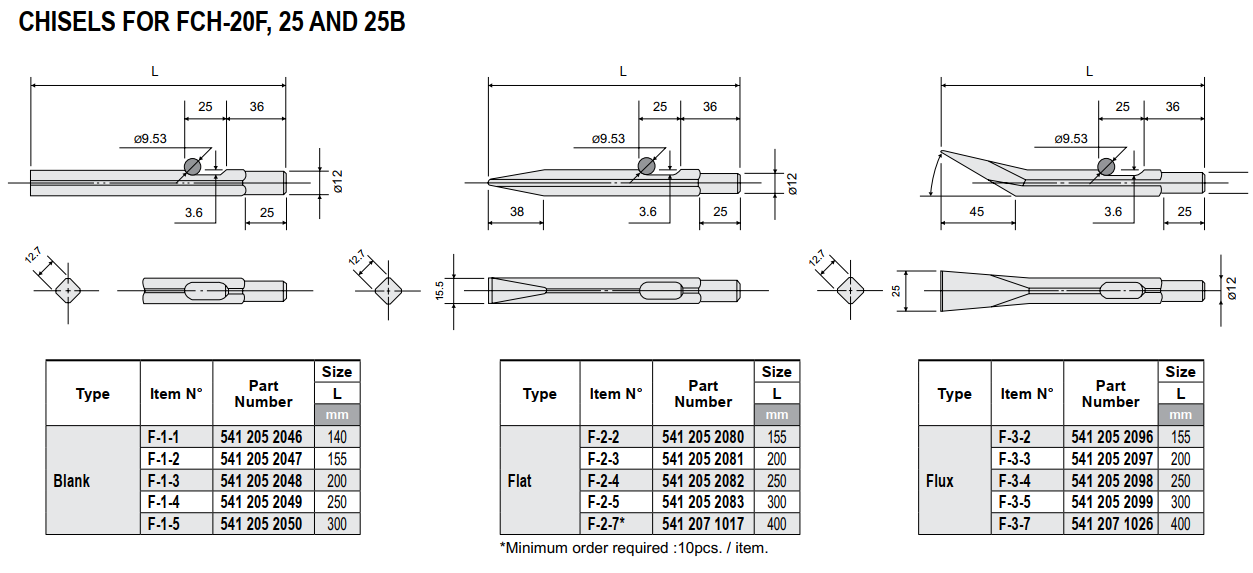

CHISELS FOR FC-SERIES

Photo Credit From Fujitools Japan
