FRD-6PH-3 8

FRD-6PH-3 8

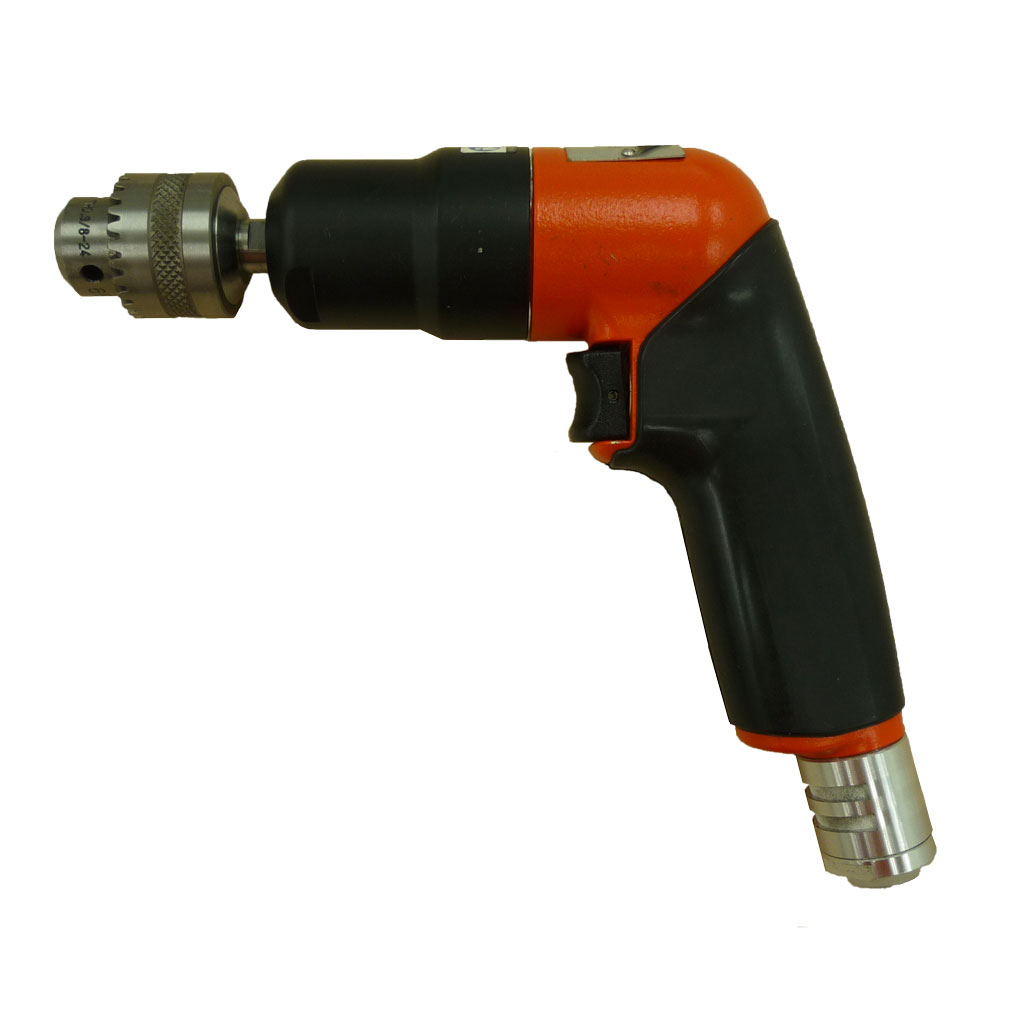

FRD-6PH-3 8 - Precision & robust, taperd chuck

Part number 5412072187
Model FRD-6PH-3 8
Spindle or chuck type Jacobs Taper 1
Chuck capacity 8 mm 5/16"
Drilling capacity 8 mm 5/16"
SideToCenter_mm 21 mm 0.828125"
Free speed 2800 rpm
Power 340 W
Stall torque 4.3 Nm 3.2 ft.lbs
Net weight 0.89 kg 1.96 lb
Length 198 mm 7.8"
Free speed air consumption 10 l/s 20.8 cfm
Min. hose size 9.5 mm 3/8"
Sound pressure 72.6 db(A)
Sound Power 83.6 db(A)
Vibration α (ISO-28927-5) < 2.5 m/s²
Vibration K (ISO-28927-5) 1.03 m/s²
