FL-5-3 BF EC

FL-5-3 BF EC

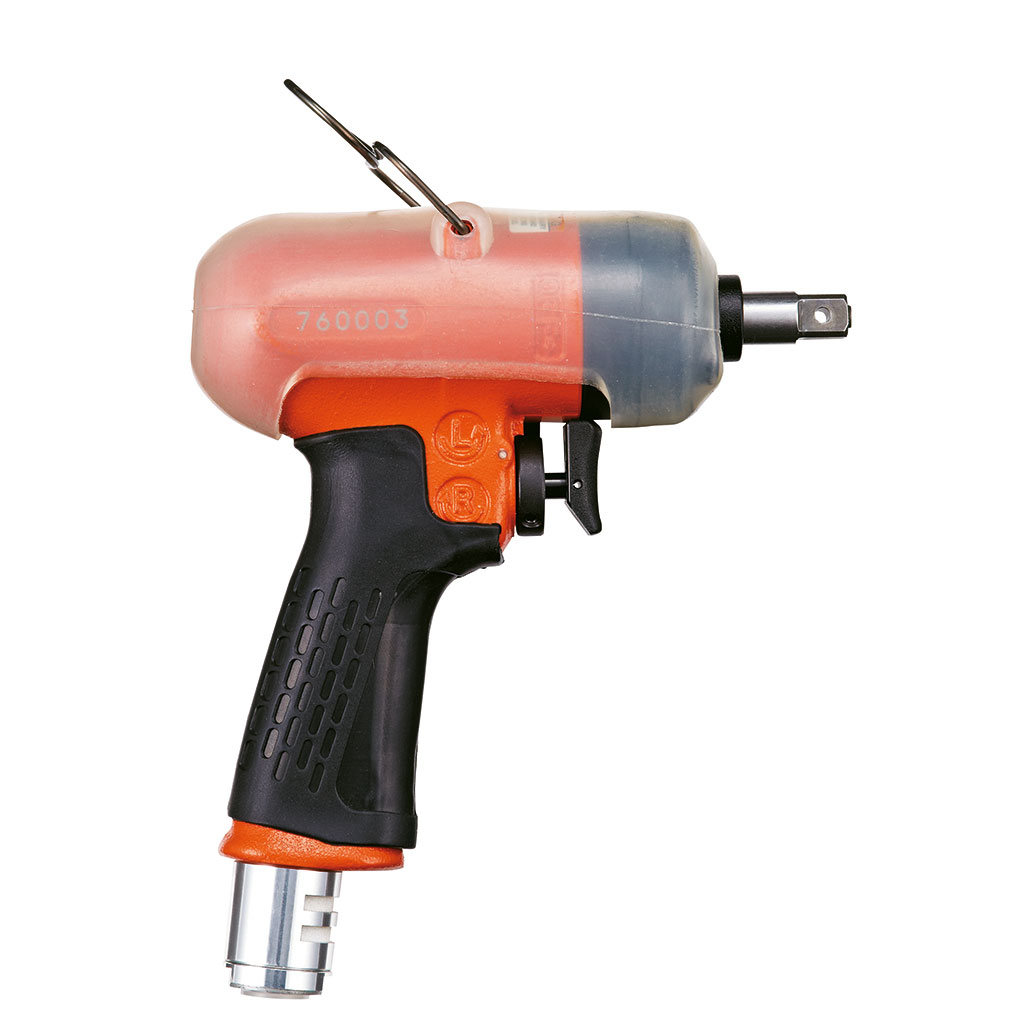

FL-5-3 BF EC - Versatile, compact, long life, CE

Part number 5412105716
Model FL-5-3 BF EC
Handle type Pistol
Square drive Sq 3/8" Sq 9.5
Square drive Sq 9.5 mm Sq 3/8
Working Torque Range (fwd) 20 - 40 Nm 14.7 - 29.5
Free speed 6300 rpm
Net weight 0.79 kg 1.74 lb
Length 140 mm 5.51"
Side to center 22 mm 0.87"
Actual air consumption 6.7 l/s 14.1 cfm
Min. hose size 6.3 mm 1/4"
Sound pressure 79.2 db(A)
Sound Power 90.2 db(A)
Vibration α (ISO-28927-2) < 2.5 m/s²
Vibration K (ISO-28927-2) 0.4 m/s²
Socket retainer Pin (BF-Anvil)
Pulse type 2-blade
Bolt size M6 - M8  1/4- -5/16
