FL-4D-3 EC

FL-4D-3 EC

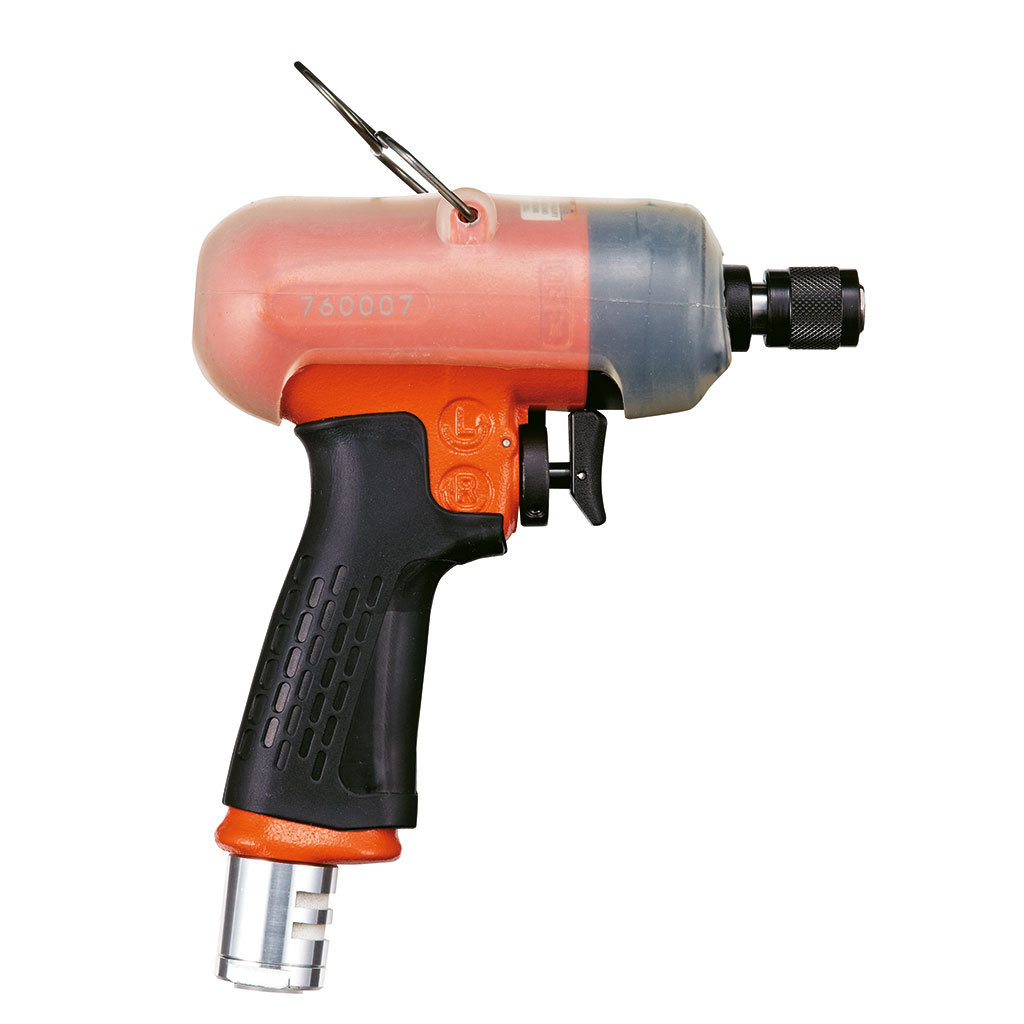

  FL-4D-3 EC - Versatile, compact, long life, CE

Part number 5412105727
Model FL-4D-3 EC
Handle type Pistol
Square drive Hex 1/4" Hex 6.35
Square drive Hex 6.35 mm Hex 1/4
Working Torque Range (fwd) 14 - 20 Nm 10.3 - 14.7
Free speed 6700 rpm
Net weight 0.79 kg 1.74 lb
Length 140 mm 5.51"
Side to center 22 mm 0.87"
Actual air consumption 6 l/s 12.7 cfm
Min. hose size 6.3 mm 1/4"
Sound pressure 76 db(A)
Sound Power 87 db(A)
Vibration α (ISO-28927-2) < 2.5 m/s²
Vibration K (ISO-28927-2) 0.6 m/s²
Socket retainer Bit Shank (Hex)
Pulse type 2-blade
Bolt size M6  1/4
