FPW-110SD-10

FPW-110SD-10

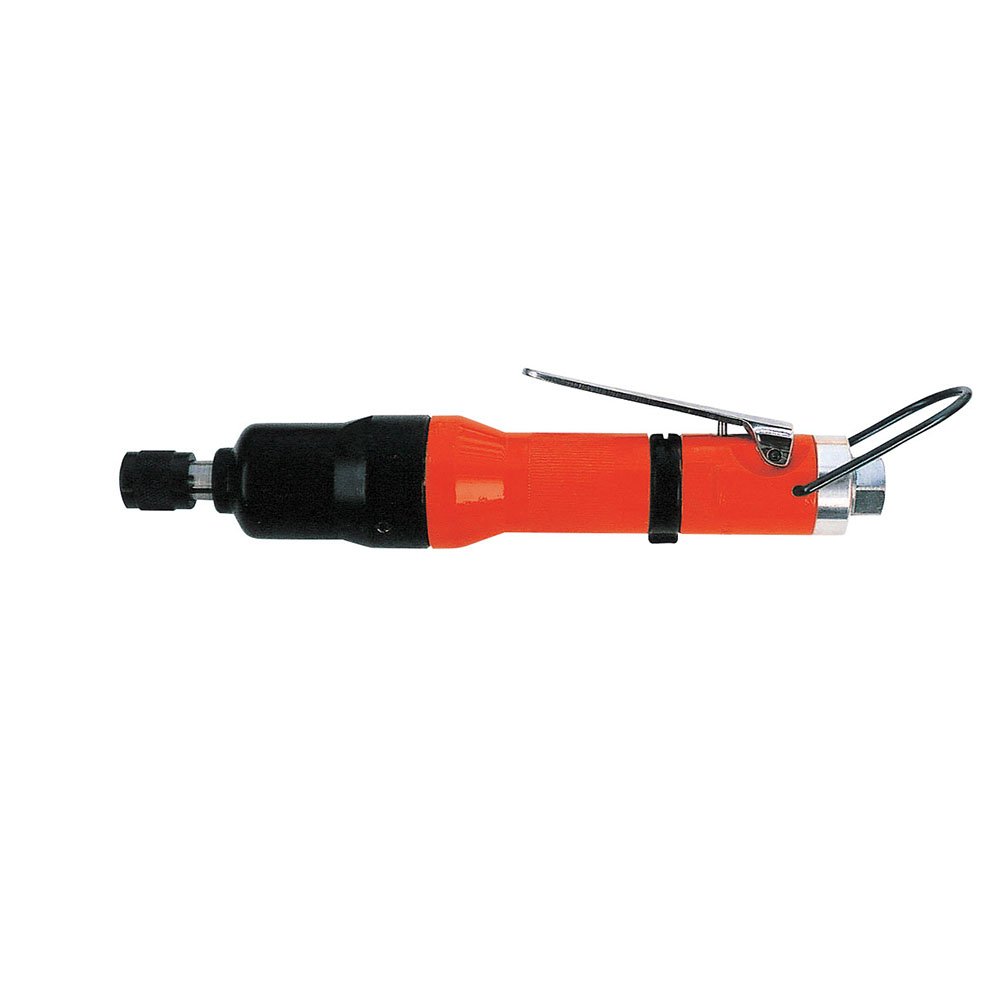

FPW-110SD-10 - Compact, for long bit

Part number 5412053172
Model FPW-110SD-10
Handle type Straight
Square drive Hex 1/4" Hex 6.35
Square drive Hex 6.35 mm Hex 1/4
Working Torque Range (fwd) 2 - 7 Nm 1.5 - 5.2
Free speed 3200 rpm
Net weight 0.65 kg 1.43 lb
Length 224 mm 8.82"
Side to center 17.5 mm 0.687"
Actual air consumption 3.3 l/s 7 cfm
Min. hose size 6.3 mm 1/4"
Sound pressure 72 db(A)
Sound Power 83 db(A)
Vibration α (ISO-28927-2) 3 m/s²
Vibration K (ISO-28927-2) 0.9 m/s²
Socket retainer Bit Shank (Hex)
Pulse type 2-blade
Bolt size M5  No.10
