FL-11-3 BF EC

FL-11-3 BF EC

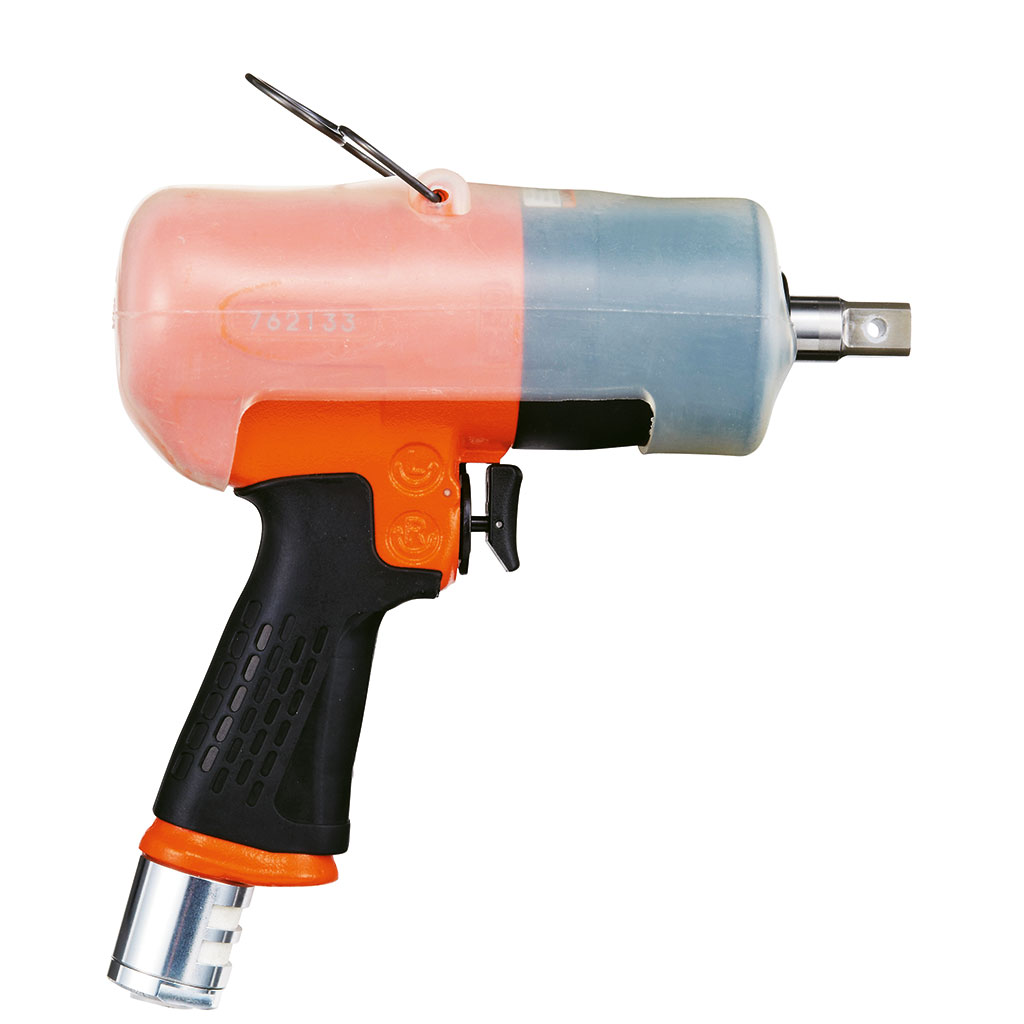

FL-11-3 BF EC - Versatile, compact, long life, CE

Part number 5412105617
Model FL-11-3 BF EC
Handle type Pistol
Square drive Sq 1/2" Sq 12.7
Square drive Sq 12.7 mm Sq 1/2
Working Torque Range (fwd) 80 - 136 Nm 59.0 - 100.2
Free speed 5000 rpm
Net weight 1.8 kg 3.97 lb
Length 184 mm 7.24"
Side to center 29.5 mm 1.16"
Actual air consumption 13 l/s 28.3 cfm
Min. hose size 9.5 mm 3/8"
Sound pressure 85.3 db(A)
Sound Power 96.3 db(A)
Vibration α (ISO-28927-2) < 2.5 m/s²
Vibration K (ISO-28927-2) 0.7 m/s²
Socket retainer Pin (BF-Anvil)
Pulse type 2-blade
Bolt size M10 - M12  3/8 - 1/2
