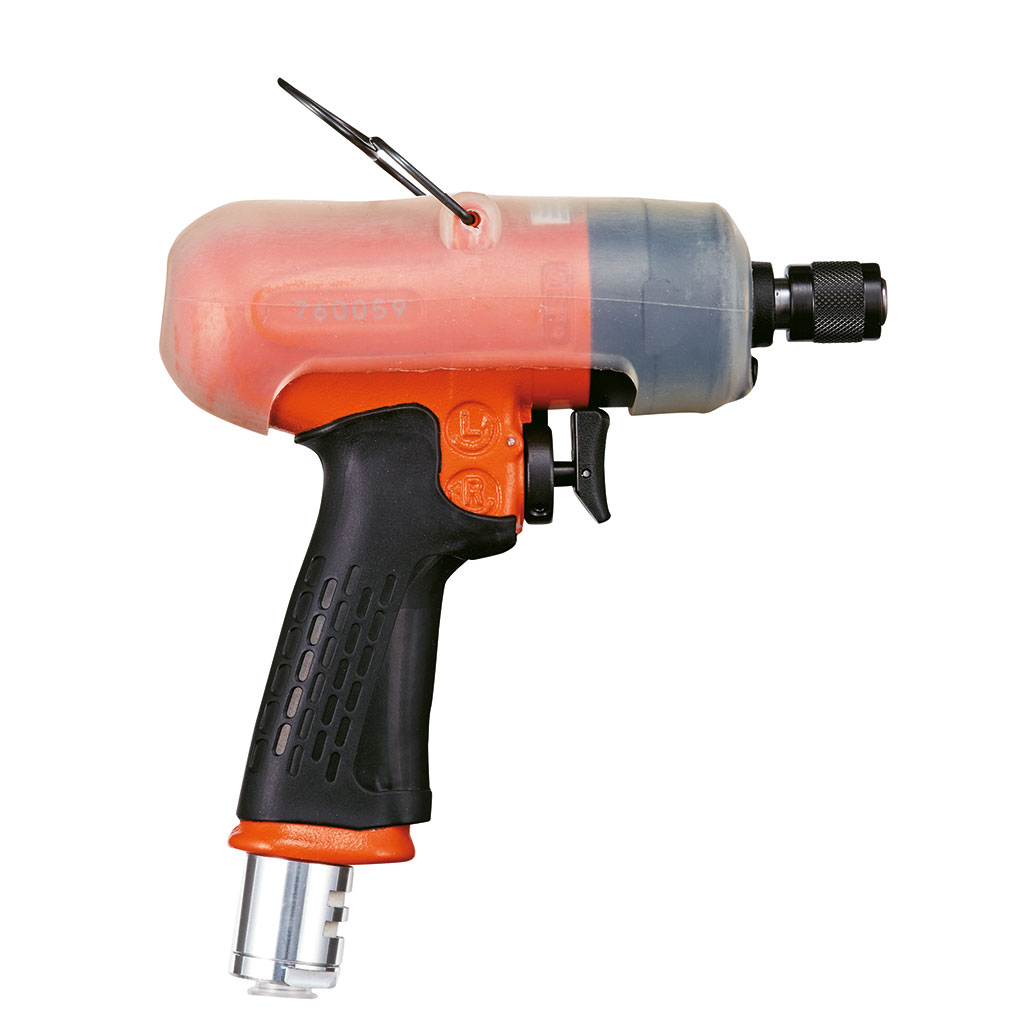

FL-6D-3 - Versatile, compact, long life

Part number 5412105355
Model FL-6D-3
Handle type Pistol
Square drive Hex 1/4" Hex 6.35
Square drive Hex 6.35 mm Hex 1/4
Working Torque Range (fwd) 25 - 42 Nm 18.4 - 31.0
Free speed 6700 rpm
Net weight 0.83 kg 1.83 lb
Length 152 mm 5.98"
Side to center 22 mm 0.87"
Actual air consumption 7 l/s 14.8 cfm
Min. hose size 9.5 mm 3/8"
Sound pressure 82.2 db(A)
Sound Power 93.2 db(A)
Vibration α (ISO-28927-2) < 2.5 m/s²
Vibration K (ISO-28927-2) 0.7 m/s²
Socket retainer Bit Shank (Hex)
Pulse type 2-blade
Bolt size M8  5/16
