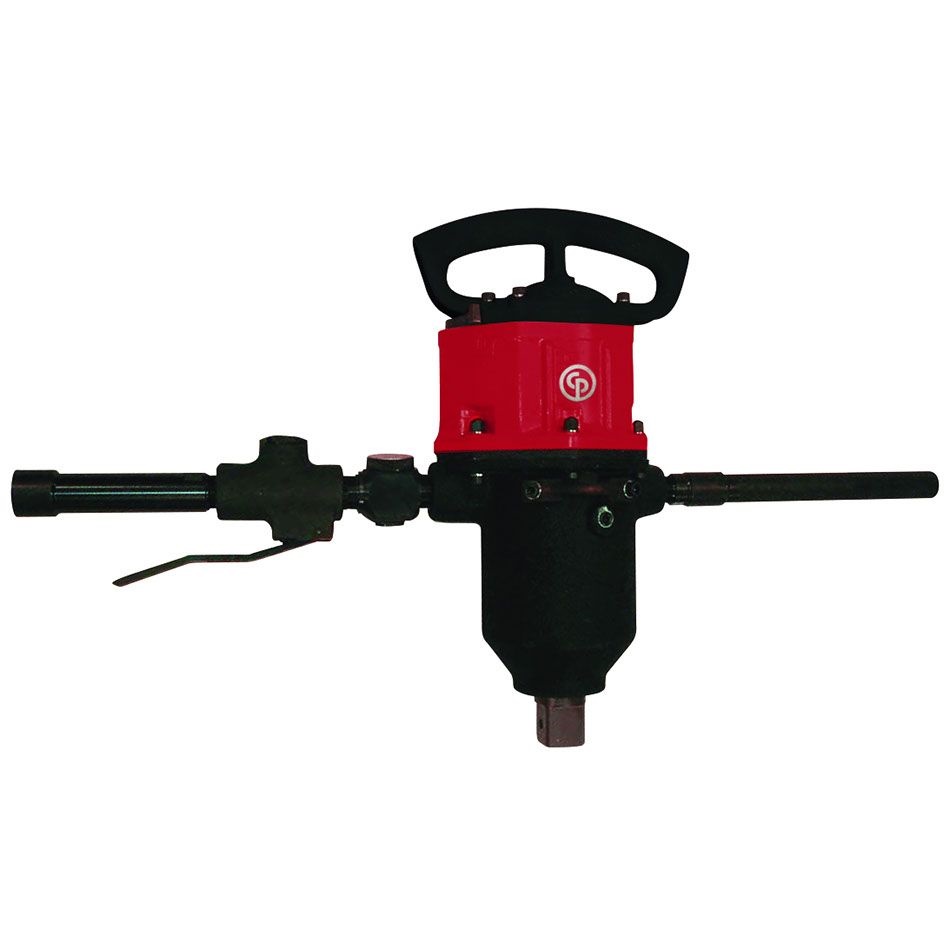

1-1/2" Super Duty T-Handle
Reliable Double Rocking Dog clutch
Durable aluminum body & clutch housing
5-positions regulator, progressive trigger & Easy reverse
Removable dead handle and comfortable Top handles
Suspension hole for easy hoist/balancer hooking
| Metric | Imperial | |
|---|---|---|
| Model | CP6130-T70 | |
| Part number | 6151590010 | |
| Actual air consumption | 31.76 l/s | 67.3 cfm |
| Air inlet thread size | 1 " | |
| Blows per minute | 900 | |
| Bolt size | M56 mm | |
| Box dimensions | 280x540x310 mm | 11,02x21,26x12,2 " |
| Clutch type | Double Rocking Dog | |
| European Standards | EN ISO 11148-6:2013 | |
| Free speed | 4000 rpm | |
| Handle type | T-Handle | |
| Length | 500 mm | 19.7 " |
| Maximum Torque (reverse) | 12500 Nm | 9220 ft.lbs |
| Min. hose size | 19 mm | 3/4 " |
| Net weight | 33 kg | 72.6 lb |
| Power/weight ratio | 378.8 Nm/kg | 127 ft.lb/lb |
| Side to center | 80 mm | 3.14 " |
| Socket retainer | Hole | |
| Sound Power | 115 db(A) | |
| Sound pressure | 104 db(A) | |
| Square drive | 1 1/2 " | |
| Vibration | 4.7 m/s² | |
| Vibration ISO | ISO-28927-2 | |
| Vibration uncertainty (K) | 1.7 m/s² | |
| Working Torque Range (fwd) | 3,300 - 7,100 Nm | 2,430 - 5,240 ft.lbs |
